Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-171

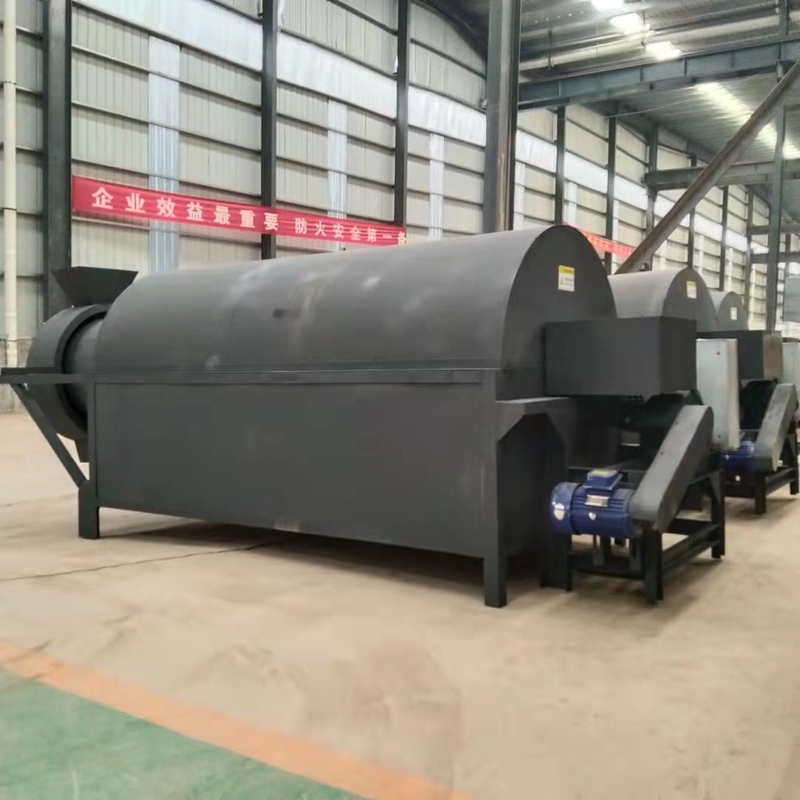

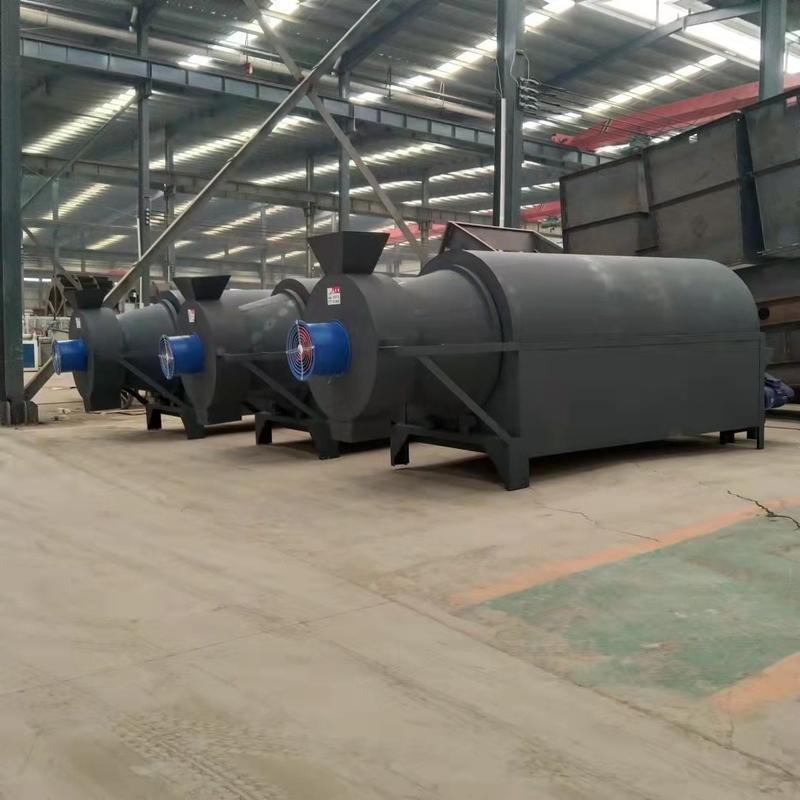

Electric Heating Rotary Frying Dryer including box and drum two parts, the main body adopts the reverse flow tower type internal circulation structure, the overall modular structure,which make it easy to disassemble and transport, small occupation, good drying quality, low labor operation intensity, low equipment cost.Integrated butt joint design of heating system and drum, compact structure, low energy consumption, high thermal efficiency.Small dryer conform to international continuous improvement of material drying quality, reduce energy consumption, reduce losses, conform to the green, quality, fresh drying concept.
Electric Heating Rotary Frying Dryer Featrure:
1, can be widely used in river sand, sludge, coal mud, sawdust, sand, bean curd residue, chicken manure, organic fertilizer, feed, Chinese medicine residue, wine grains, vinegar grains and other fields material drying;
2. Take hot air as the drying medium, adopt the cycle drying process, the material is evenly heated and fully dehydrated, and the quality after drying is good;
3. The heating system of the dryer is more advanced. The converted heat energy can dry the materials without pollution.
4, equipped with automatic online temperature measurement, humidity measurement device, the degree of automation is greatly improved, high uniformity of drying;
5, can automatically control the work process, automatic shutdown, simple operation, greatly reduce labor costs.
Electric Heating Rotary Frying Dryer Technical Details:
| Electric heating dryer parameters | |||||||
| Dimensions (including fan) | Output (KG) | Drum size (including bell mouth) | Power (KW) | Heating power (KW) | Dehumidifying fan (W) | Chain (root) | Reducer |
| 3000*1000*1450mm | 200 | 800*1800*3mm | 1.5 | 30 | 370 | 12 | / |
| 3800*1000*1450mm | 300 | 800*2600*3mm | 2.2 | 30-40 | 370 | 18 | ZQ200 |
| 4200*1200*1600mm | 500 | 1000*2800*3mm | 3.0 | 40-50 | 370 | 24 | ZQ250 |
| 4800*1500*1700mm | 1000 | 1200*3400*4mm | 4.0 | 60-80 | 550 | 32 | ZQ250 |
| 6000*1800*2100mm | 2000 | 1500*4400*5mm | 7.5 | 80-100 | 750 | 50 | ZQ350 |
| 7800*1800*2100mm | 3000 | 1500*6000*5mm | 11.0 | 120-150 | 1100 | 75 | ZQ350 |
| 9300*2300*2500mm | 5000 | 1800*6600*8mm | 15.0 | 180-200 | 1500 | 120 | ZQ500 |
