Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-139
Kaolin (china clay) is a hydrated aluminum silicate derived from the mineral Kaolinite.
Kaolin is chemically inert clay with a low shrink-swell capacity, well-suited to a wide range of industrial uses including ceramics, paper, glass fiber, filler, paints, wire and cable and plastics.
kaolin minerals is a commonly used in the ceramics industry as raw material in various applications because of its refractory cement, glass fiber, etc.. Also is widely used in other industries such as paint, paper, pesticides, pharmaceuticals and cosmetics. Kaolin need to crushing and grinding into smaller sizes, and than used in different industry.

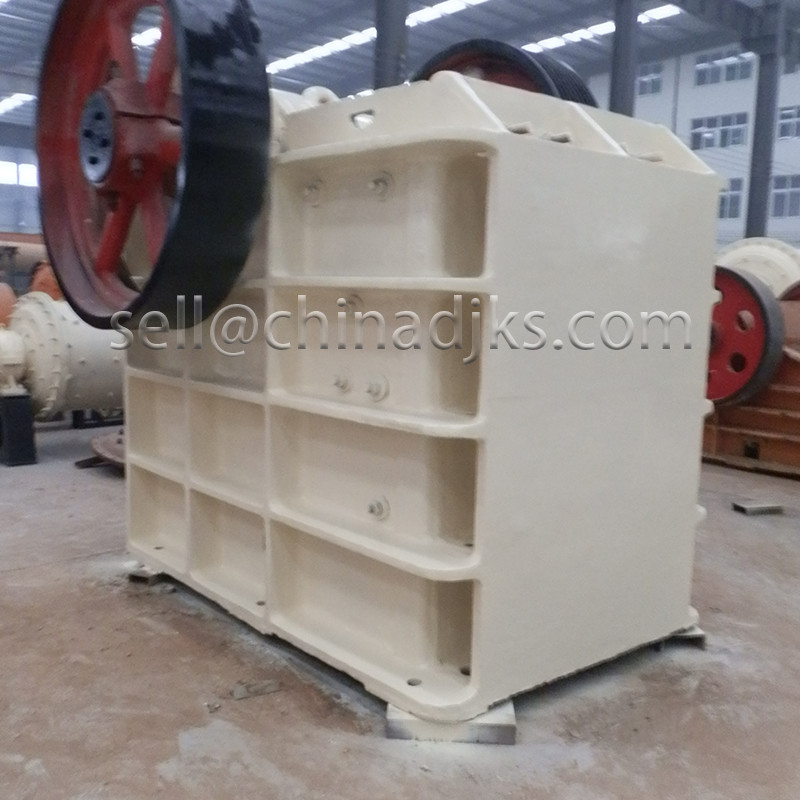

Hengyang Jaw Crusher Technical Details:
| Model | Size of Feed Opening(mm) | Max Feed Size (mm) | Discharge Range Opening (mm) | Capacity (m3/h ) | Motor Power(kw) | Weight(t) |
| PE-250×400 | 250×400 | 210 | 20-60 | 3-13 | 15 | 2.8 |
| PE-400×600 | 400×600 | 340 | 40-100 | 10-40 | 30 | 6.5 |
| PE-500×750 | 500×750 | 425 | 50-100 | 28.5-62.5 | 55 | 10.8 |
| PE-600×900 | 600×900 | 500 | 65-160 | 30-75 | 55- 75 | 15 |
| PE-750×1060 | 750×1060 | 630 | 80-200 | 80-160 | 90-110 | 28.9 |
| PE-870×1060 | 870×1060 | 750 | 170-270 | 145-235 | 90-110 | 29.5 |
| PE-900×1200 | 900×1200 | 750 | 100-200 | 100-240 | 110-132 | 49 |
| PE-1000×1200 | 1000×1200 | 850 | 200-280 | 190-275 | 110-132 | 51 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 250-500 | 200 | 88.5 |
| PEX-150×750 | 150×750 | 120 | 10-40 | 5-16 | 15 | 2.5 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 10-30 | 30-37 | 6.6 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 10-31.5 | 37 | 7 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 12.5-53 | 75 | 12 |

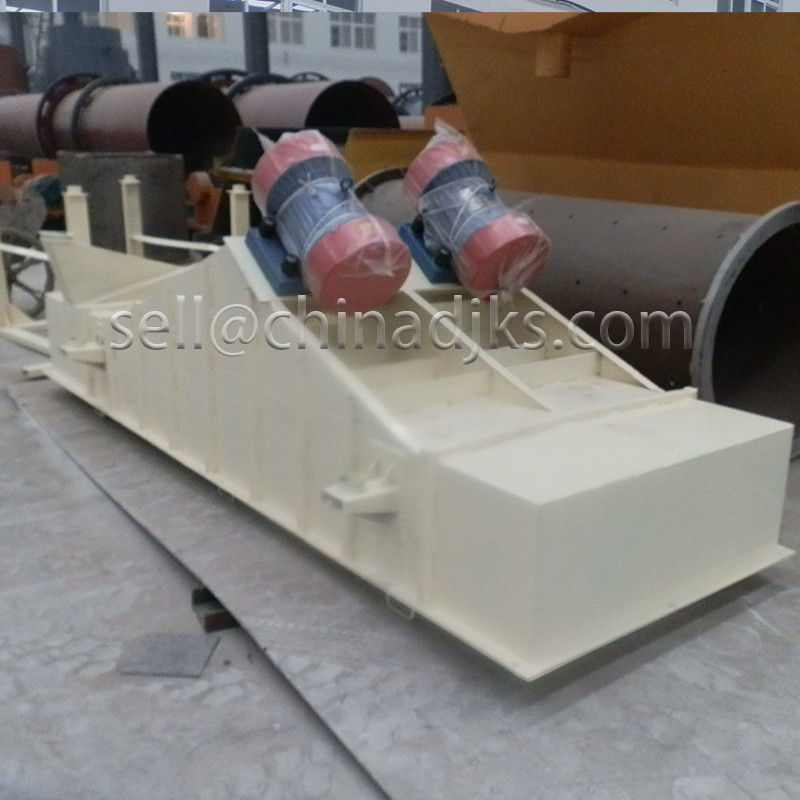

Hengyang Liear Screen: mainly for separating fine kaolin powder into different sizes.
