Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-109

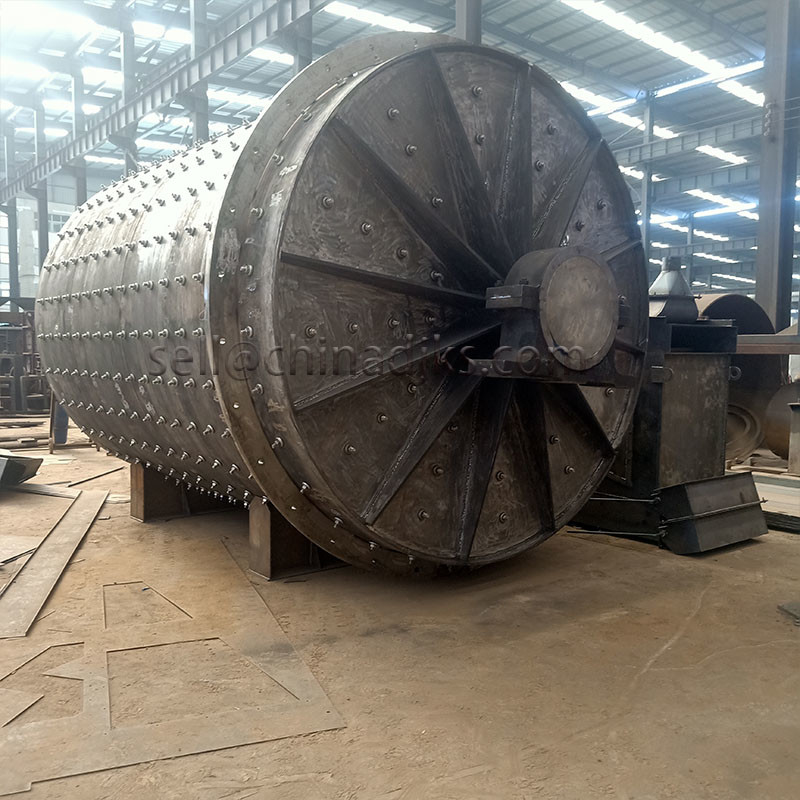

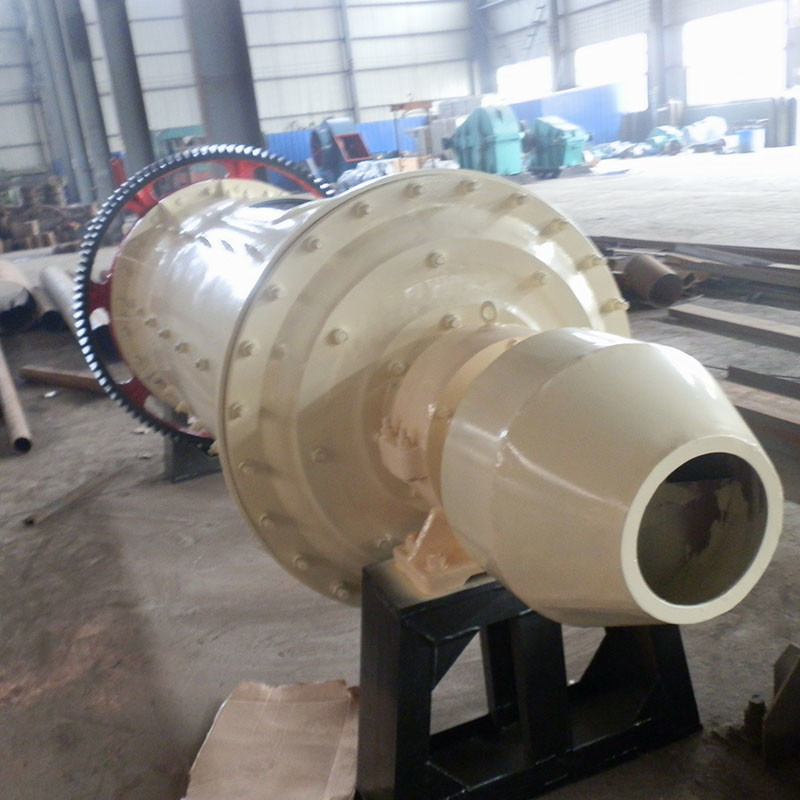

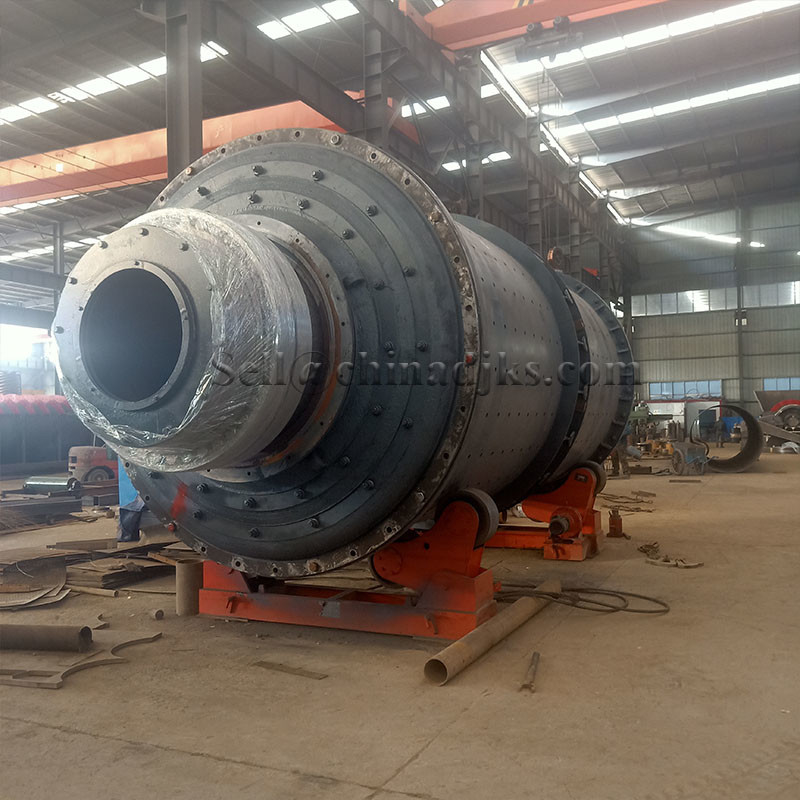

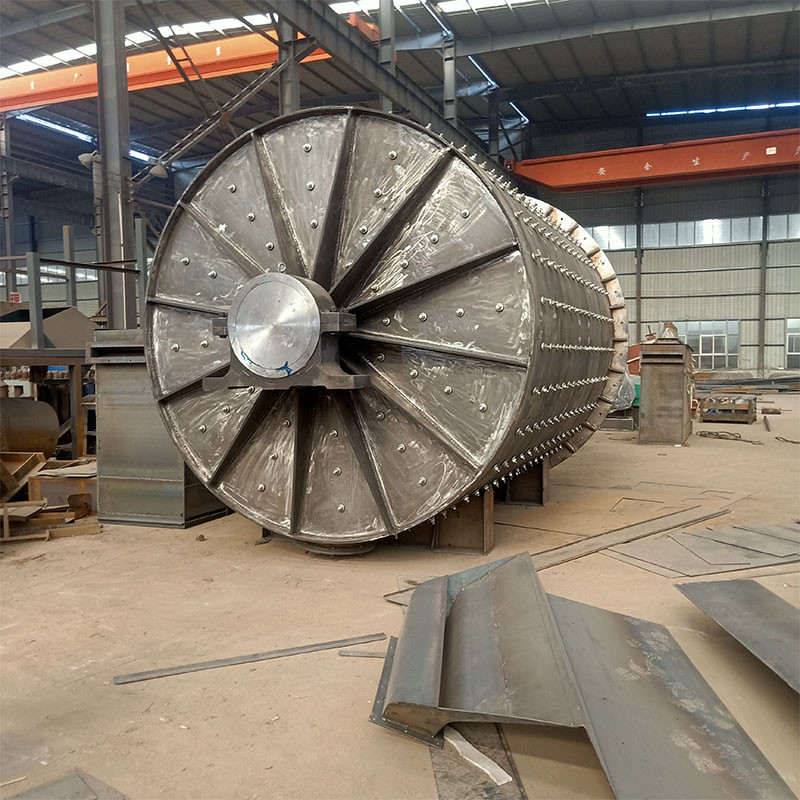

Grinding Ball Mill Batch Ball Mill
The Ball Mill is designed to grind materials by turning the cylindrical shell with grinding medium (e.g. steel balls, cylpeb, and pebbles) put in the shell, and has a simple structure and ease of handling. Furthermore, The Ball Mill of a large capacity has been available to a very extensive range of applications in both dry and wet processing.Ball Mill.pdf
Ball Mill Classifications:
Overflow Type
The overflow type of Ball Mill is designed to overflow and discharge materials from the trunnion on the outlet side. By combining it with a mechanical classifier or wet-processing cyclone, you are able to extensively use this type for grinding in closed circuit or for special applications such as re-grinding in open circuit. Generally, it is best suited to fine-grind materials up to the particle sizes ranging from 150 to 200 mesh.
Grate-discharge Type
The grate-discharge type of Ball Mill has a grate at the outlet of the shell and causes less excessive grinding, compared to the overflow type. Therefore, generally, it is best suited to grind materials up to the particle sizes ranging from 60 to 100 mesh.
Compartment type
The compartment type of Ball Mill has a longer shell, inside of which is comparted into 2 to 3 chambers with grates and is best suited to produce products grinding from coarse particles of some 25 mm to fine particles of some 200 mesh.
Ultra Fine-Powder Ball Mill
Similar with horizontal ball mill, continuous production, but grinding chamber and grinding time is longer.
Batch Ball Mill
Batch ball mill mainly for grinding raw material into ultra fine powder but production shaft by shaft.
Ball Mill Application:
Mining Industry : Used to grind various kinds of ores.
Ceramic Industry : Used to finish and grind various kinds of raw materials and cement.
Smelting Industry : Used to grind various kinds of slag.
Power generation : Used to grind coal for combustion use.
Chemical Industry : Used to grind coke, ilmenite, and others.
Food Industry: used for grinding additive materials.
Ball Mill Technical Details:
Overflow Type, Grate-discharge Type and Compartment type
| Size | Inside dia. Length of shell (mm) |
Ball charging amount (tons) |
Mill revolution (min-1) |
Power consumption (kW) |
Motor output (kW) |
Capacity (t/h) | |
| A | B | ||||||
| 1212 1515 |
1200×1200 1500×1500 |
2.05 4.15 |
32.0 29.0 |
16.5 35.8 |
18.5 37 |
1.5 3.5 |
1.3 3.1 |
| 1818 2121 |
1800×1800 2100×2100 |
7.4 11.7 |
25.3 23.0 |
65.3 106 |
75 110 |
6.6 11.0 |
5.8 9.6 |
| 2424 2430 |
2400×2400 2400×3000 |
17.6 22.0 |
21.4 21.4 |
167 209 |
190 220 |
18.0 22.4 |
15.8 19.6 |
| 2727 2733 |
2700×2700 2700×3300 |
25.4 31.0 |
20.1 20.1 |
250 306 |
260 340 |
27.5 33.7 |
24.1 29.6 |
| 3030 3036 |
3000×3000 3000×3600 |
35.0 42.0 |
18.8 18.8 |
350 420 |
375 450 |
39.5 47.3 |
34.6 41.5 |
| 3236 3242 |
3200×3600 3200×4200 |
48.0 56.0 |
18.0 18.0 |
484 565 |
510 600 |
55.5 65.0 |
48.7 57.0 |
| 3442 3648 |
3400×4200 3600×4800 |
63.5 81.5 |
17.5 16.6 |
655 845 |
700 900 |
75.5 99.0 |
66.0 86.0 |
| 3848 4051 |
3800×4800 4000×5100 |
91.5 108.0 |
16.2 15.8 |
960 1160 |
1000 1200 |
113.0 139.0 |
99.0 122.0 |
Ultra Fine-Powder Ball Mill (cement mill)
| Specifications | Capacity t/h | Mill form | transmission form | Power (Kw) | Reduction type | Weight (t) |
| Φ2.2X8.0 | 10-12 | Flow | Edge | 380 | ZD70 | 65 |
| Φ2.2X9.5 | 14-16 | Flow | Edge | 475 | ZD70 | 70 |
| Φ2.4X10.0 | 16-19 | Flow | Edge | 630 | JR75 | 94.5 |
| Φ2.4X11.0 | 19-21 | Flow | Edge | 630 | RZD80 | 99.2 |
| Φ2.4X13.0 | 21-23 | Flow | Edge | 800 | MBY710 | 115.2 |
| Φ2.6X13.0 | 28-32 | Flow | Edge | 1000 | MBY800 | 148 |
| Φ2.6X13.0 | 28-32 | Flow | centre | 1000 | MFY100 | 101.73 |
| Φ3.0X12.0 | 32-35 | Flow | Edge | 1250 | MBY900 | 168.6 |
| Φ3.0X13.0 | 34-37 | Flow | Edge | 1400 | MBY900 | 172.26 |
| Φ3.2X13.0 | 45-50 | Flow | Edge | 1600 | MBY1000 | 196.26 |
| Φ3.8X13.0 | 60-62 | Flow | centre | 2500 | MFY250 | 204 |
| Φ4.2X13.0 | 85-87 | Flow | centre | 3530 | JQS3550 | 254 |
Ultra Fine-Powder Ball Mill (Super-fine Powder Industry)
| Model |
Ø2.4*16m Untra-fine Ball Mill |
Ø2.6*16m Untra-fine Ball Mill |
Ø3.2*16m Untra-fine Ball Mill |
| Capacity | 25t/h | 35t/h | 55t/h |
| Rotary Speed | 21.3r/min | 19.46r/min | 17.83r/min |
| Feeding size | less them 1mm | less them 1mm | less them 1mm |
| Volume | 64m3 | 76m3 | 115m3 |
| Grinding Media Load | 105t | 120t | 190t |
| Drive Model | Edge-transmission | Edge-transmission | Edge-transmission |
| Motor Power | YR1250-8-1430/1250 | YR1400-8-1430/1400 | YR2240-8-1730/2240 |
| Gearbox | JDX900 | MYB1000 | MYB1100 |
| Weight | 120T | 205T | 330T |
