Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-094

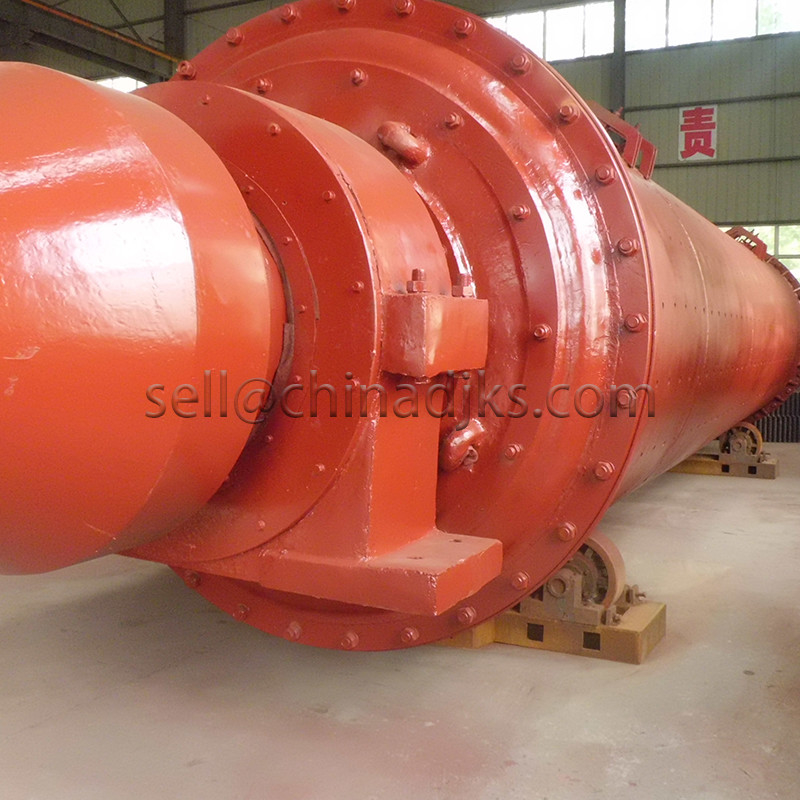

Ultra-fine Powder Ball Mill also known as pebble mill or tumbling mill is a milling machine that consists of a hallow cylinder containing balls; mounted on a metallic frame such that it can be rotated along its longitudinal axis. The balls which could be of different diameter occupy 30 – 50 % of the mill volume and its size depends on the feed and mill size. The large balls tend to break down the coarse feed materials and the smaller balls help to form fine product by reducing void spaces between the balls. Ball mills grind material by impact and attrition.Grinding Ball Mill.pdf
Ultra-fine Powder Ball Mill Application:
Ultra-fine Powder Ball Mill Technical Details:
| Model |
Ø2.4*16m Untra-fine Ball Mill |
Ø2.6*16m Untra-fine Ball Mill |
Ø3.2*16m Untra-fine Ball Mill |
|
Capacity |
25t/h | 35t/h | 55t/h |
| Rotary Speed | 21.3r/min | 19.46r/min | 17.83r/min |
| Feeding size | less them 1mm | less them 1mm | less them 1mm |
| Volume | 64m3 | 76m3 | 115m3 |
| Grinding Media Load | 105t | 120t | 190t |
| Drive Model | Edge-transmission | Edge-transmission | Edge-transmission |
| Motor Power | YR1250-8-1430/1250 | YR1400-8-1430/1400 | YR2240-8-1730/2240 |
| Gearbox | JDX900 | MYB1000 | MYB1100 |
| Weight | 120T | 205T | 330T |
