Name: Rotary Kiln Industrial Gear Units Girth Gear Series 4000kW For Mining Industry
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: HC-093
Price: Negotiable USD
Availability: InStock

Home > products > Rotary Drying Machine >

Rotary Kiln Industrial Gear Units Girth Gear Series 4000kW For Mining Industry

Rotary Kiln Industrial Gear Units

4000kW Industrial Gear Units

Mining Industry Industrial Gear Units

Place of Origin:

China

Brand Name:

Hengyang

Certification:

ISO9001

Model Number:

HC-093

Request A Quote

Rotary Kiln Industrial Gear Units Girth Gear Series 4000kW For Mining Industry

Product Details

NAME:

Industrial Gear Units Girth Gear Series

Application:

Rotary Dryer, Rotary Kiln, Ball Mill

Color:

Customized

Material:

Customized

Condition:

New

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Negotiated

Delivery Time

20 days

Payment Terms

L/C, T/T

Supply Ability

300Sets/month

Stainless Steel Rotary Drum Flaker Dryer With Internal Heating

Get Best Price

Lignit Potassium Humate Rotary Drum Dryer Rotating Continuous Drying Equipment 5000kg/h

Get Best Price

Potassium Fulvate Flake Rotary Drum Dryer For Material Dewatering

Get Best Price

Triple-Pass Rotary Dryer 5-70t/h High Capacity

Get Best Price

86-371-56611369

Contact Now

Product Description

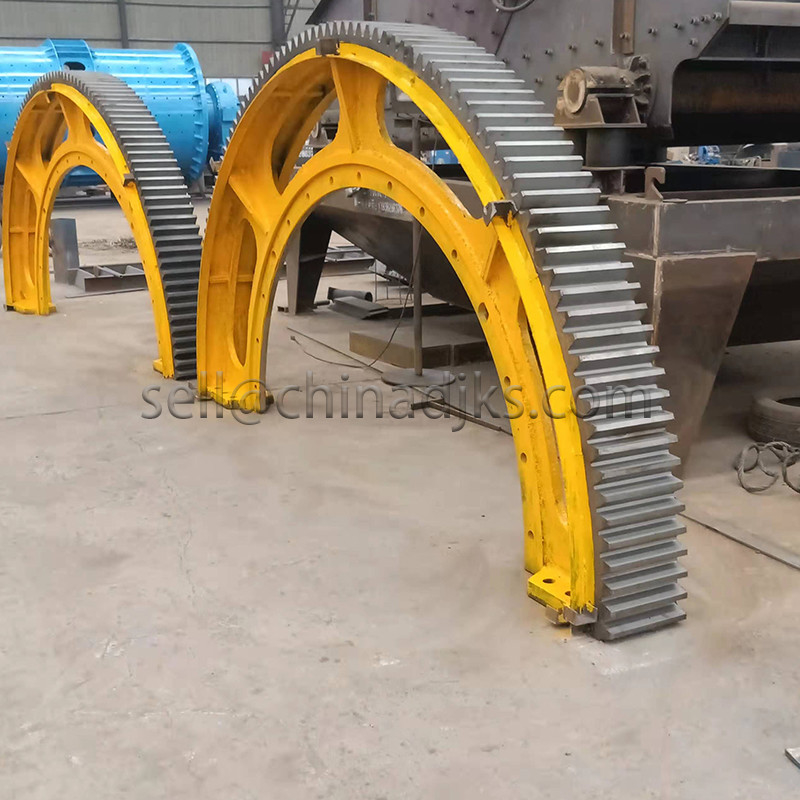

Girth gears are used to drive large, rotating systems such as dryers, rotary kilns or horizontal mills. The flexible concept from Zhengzhou Hengyang Industry has simplified manufacturing, transport and assembly.

Industrial Girth Gear Application:

Rod Mill, Ball Mill, Rotary kiln, Rotary dryer, etc.

Chemical industry
Environmental industry
Timber industry
Paper industry
Steel industry
Mining industry
Raw materials industry

Industrial Girth Gear Features

Practical handling of individual segments
Optimized quality assurance due to minimal size
Precise pitch accuracy according to ISO 8 (AGMA 8)
Simple exchange
Low weight
Longer service life with ADI
Short delivery time

Industrial Girth Gear Scope of delivery

Segmented girth gears
Drive pinion and ,if required, pedestal bearing
Fastening parts for the girth gear: Mounting springs or mounting flange
Main gear unit
Motors
Auxiliary drives
Lubrication system
Foundation and base frame

Industrial Girth Gear Technical Detail:

Girth gear pitch diameter of up to 16 m (larger diameters are available after further discussion)
Maximum width 600 mm
Maximum power 4000 kW per pinion
Maximum pitch line velocity 6 m/s
Girth gear module 20, 25, 30, and 40 mm
Calculated according to ISO standard

Rotary Kiln Industrial Gear Units Girth Gear Series 4000kW For Mining Industry 0
