Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-097

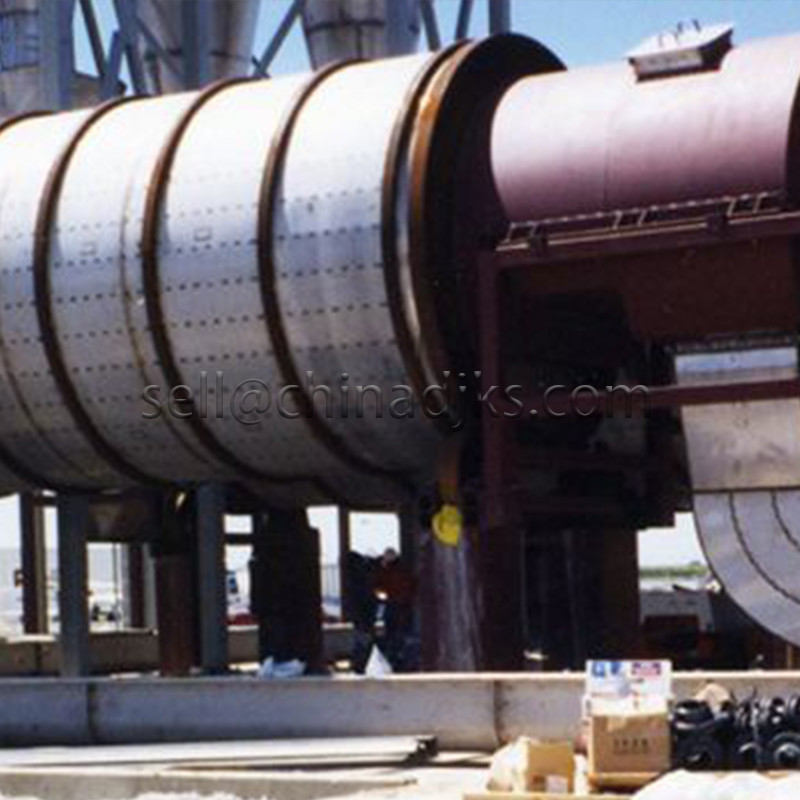

Single Shell Rotary Dryer Features:
The single-shell dryer adopts concurrent heating, of which the heat resource comes from the furnace. Wet materials are conveyed into the drum through feeding box and lifted toward the other end by screw flights. Since the drum inclines against the ground, wet materials are pushed towards the discharge outlet under the work of gravity and rotation. Meanwhile, they are lifted up and down by flights, which forms a mass curtain inside the drum. By this method, wet materials are fully connected with hot flow and finish the drying process.Hengyang Rotary Dryer .pdf
Single Shell Rotary Dryer Application:
Coarse-grained materials, clay products, broken glass, etc.
Single Shell Rotary Dryer Processing:
Single Shell Rotary Dryer Technical Details:
| Item | Gradient (%) |
Rotational speedr/min) | Inlet air temperature(℃) | Capacity (t/h) | Power(kw) |
| MG600 | 3-5 | 3-8 | ≤850 | Different Materials Different Capacity. | 3 |
| MG800 | 3-5 | 3-8 | ≤850 | 4 | |
| MG1000 | 3-5 | 3-8 | ≤850 | 5.5 | |
| MG1200 | 3-5 | 3-8 | ≤850 | 11 | |
| MG1500 | 3-5 | 3-8 | ≤850 | 15 | |
| MG1800 | 3-5 | 3-8 | ≤850 | 18.5 | |
| MG2000 | 3-5 | 3-8 | ≤850 | 22 | |
| MG2200 | 3-5 | 3-8 | ≤850 | 30 | |
| MG2400 | 3-5 | 3-8 | ≤850 | 37 | |
| MG2600 | 3-5 | 3-8 | ≤850 | 40 | |
| MG2800 | 3-5 | 3-8 | ≤850 | 55 | |
| MG3000 | 3-5 | 3-8 | ≤850 | 75 | |
| MG3200 | 3-5 | 3-8 | ≤850 | 90 | |
| MG3400 | 3-5 | 3-8 | ≤850 | 110 | |
| MG3600 | 3-5 | 3-8 | ≤850 | 150 | |
| MG4000 | 3-5 | 3-8 | ≤850 | 190 | |
| MG4200 | 3-5 | 3-8 | ≤850 | 200 | |
| MG4500 | 3-5 | 3-8 | ≤850 | 260 |
