Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-096

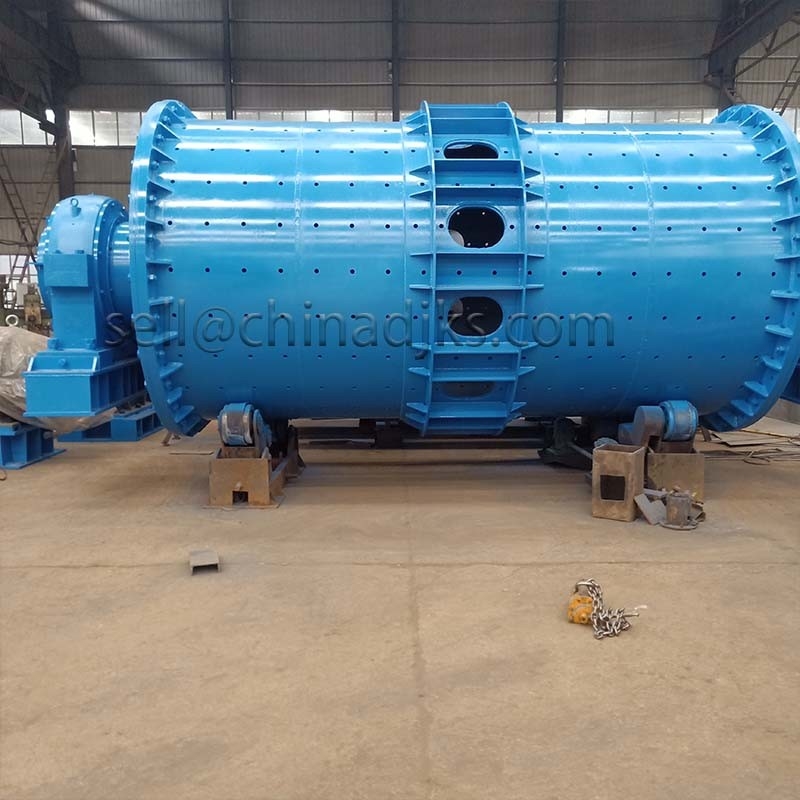

60t/H Horizontal Silica Sand Ball Mill For Building Material
Horizontal Silica Sand Rod Grinding Ball Mill is a grinding equipment with steel rod as grinding medium. It is used to coarse grinding and suitable for fine crushing and coarse grinding in first stage of open circuit grinding. This machine include overflow rod mill, end peripheral discharge rod mill and center peripheral discharge rod mill, which could meet different requirement.Grinding Ball Mill.pdf
Horizontal Silica Sand Rod Grinding Ball Mill Features:
1. The steel rod takes regular movement in mill
2. It is convenient to install and maintain
3. Rapidly discharging
4. Even particle size of product, little over grinding
Horizontal Silica Sand Rod Grinding Ball Mill Working principle:
The rod mill is driven by motor with speed reducer and peripheral large gear, or low speed synchronous motor with peripheral large gear. The grinding medium-steel rod is put into the cylinder which is lifted, and then fall under the action of the centrifugal force and friction force. The materials entering into cylinder from the feeding inlet are grinded by movable grinding medium and discharged out by overflow and continuously feeding.
Horizontal Silica Sand Rod Grinding Ball Mill Technical Details:
|
Diameter (mm) |
Length (mm) |
Capacity (t/h) |
Feeding Size (mm) |
Output Size (mm) |
Grinding Media Load(t) |
Motor Power (kw) |
|---|---|---|---|---|---|---|
| 900 | 1800 | 1.3-2.6 | ≤25 | 0.2-2.5 | 2.5 | 22 |
| 900 | 2400 | 1.35-2.9 | ≤25 | 0.2-2.5 | 3.5 | 30 |
| 1200 | 2400 | 2-5 | ≤25 | 0.2-2.5 | 4.8 | 55 |
| 1500 | 3000 | 4.8-12 | ≤25 | 0.2-2.5 | 8 | 95 |
| 1800 | 3600 | 6-17 | ≤25 | 0.2-2.5 | 17 | 132 |
| 2100 | 3000 | 14-40 | ≤25 | 0.2-2.5 | 22 | 155 |
| 2100 | 3000 | 15-45 | ≤25 | 0.2-2.5 | 24 | 210 |
| 2400 | 3600 | 26-65 | ≤25 | 0.8-5 | 28 | 280 |
| 2700 | 3600 | 30-125 | ≤25 | 0.8-5 | 42 | 400 |
| 2700 | 4000 | 40-150 | ≤25 | 0.8-5 | 47 | 400 |
| 3000 | 4000 | 62-165 | ≤25 | 0.8-5 | 51 | 500 |
| 3200 | 4500 | 70-210 | ≤25 | 0.8-5 | 56 | 630 |
| 3200 | 4800 | 75-240 | ≤25 | 0.8-5 | 60 | 710 |
| 3600 | 4500 | 83-260 | ≤25 | 0.8-5 | 78 | 1000 |
| 3600 | 5400 | 100-330 | ≤25 | 0.8-5 | 94 | 1120 |
