Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-071

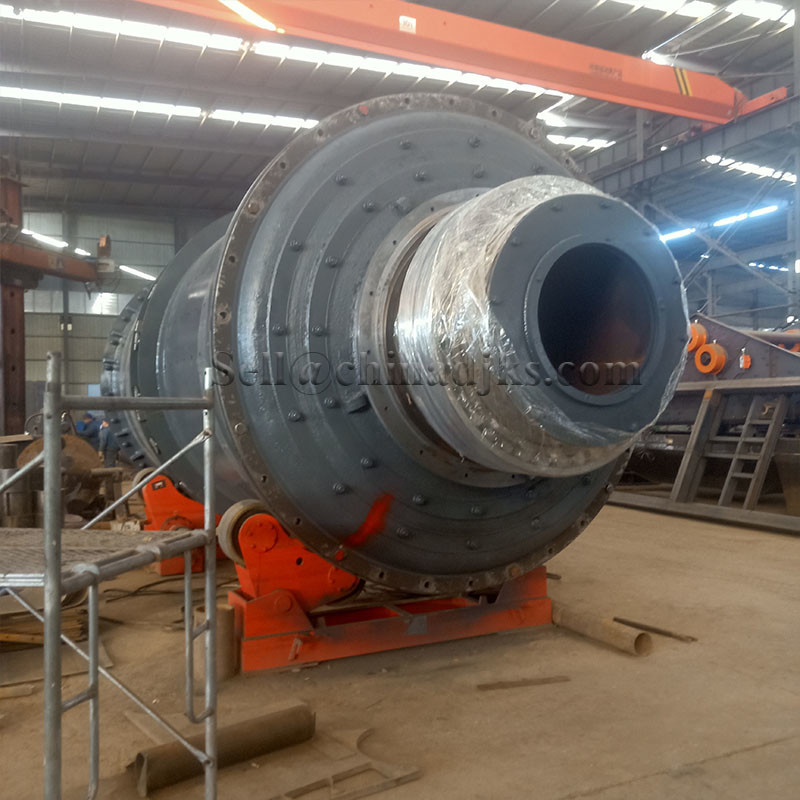

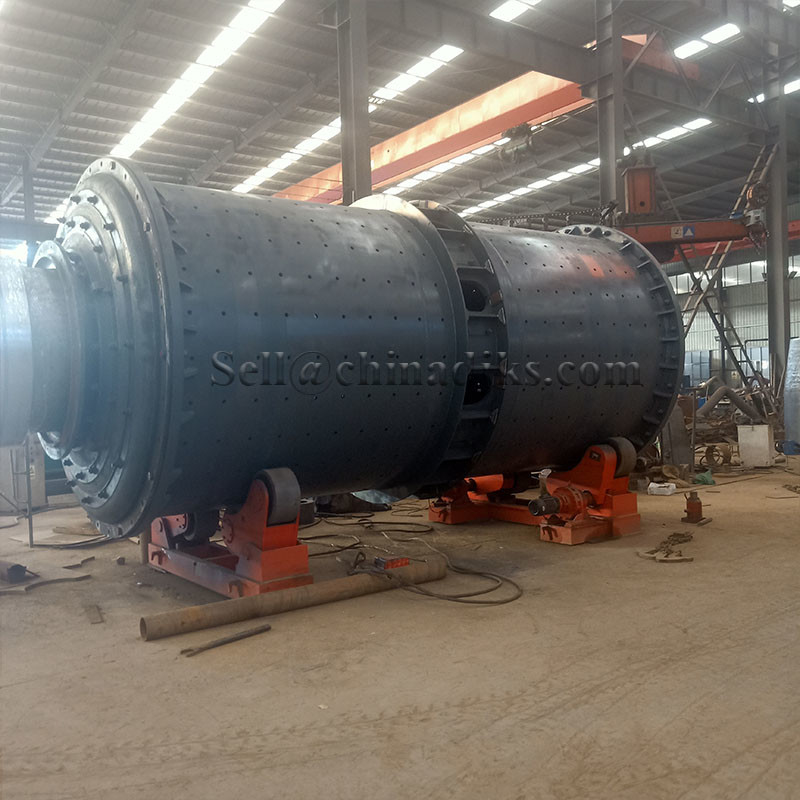

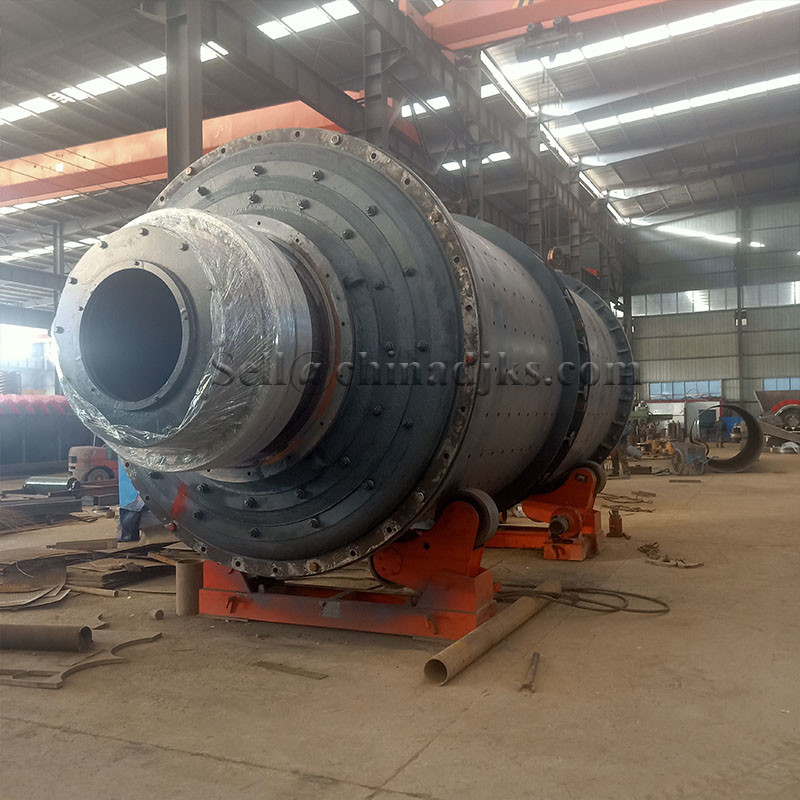

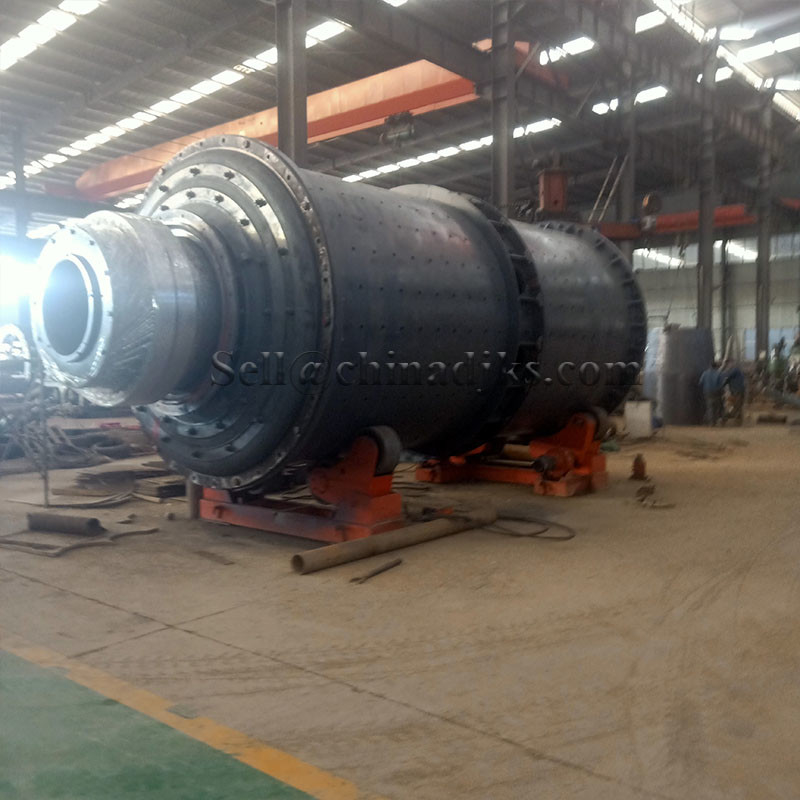

2400*5500mm Sand Rod Grinding Mill 20t/H
Sand Rod mill is devided in 3 types:discharge from the cylinder end,discharge from the cylinder middle and discharge form the center of end. It is widely used in processing of sand making of hard rock,also used for metal and non-metallic miing and building materials,coal and other industries with grinding mineral rocks.
Sand Rod Mill Features:
The transmission device drives the cylinder to rotate. Materials and water are fed from the feeding end of the cylinder. Ores are ground into fine particles by the grinding of steel rods, as well as the impact & grinding of ores themselves. The continuous grinding compels the slurry to move from feeding end to discharging end due to continuous feeding of water and materials. The slurry will overflow by itself when the slurry level is higher than the lower edge of discharging trunnion.
Sand Rod Mill Technical Details:
| Model |
Cylinder diameter (mm) |
Cylinder length (mm) |
Cylinder RPM (r/min) |
Ball load weight (t) |
Feeding size (mm) |
Discharge size(mm) |
Capacity (t/h) |
Power (kw) |
Weight (t) |
| HY2455 | 2400 | 5500 | 27 | 28 | ≤25 | 0.2-2.0 | 15-25 | 320 | 68.5 |
Sand Rod Mill Application:
