Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-025

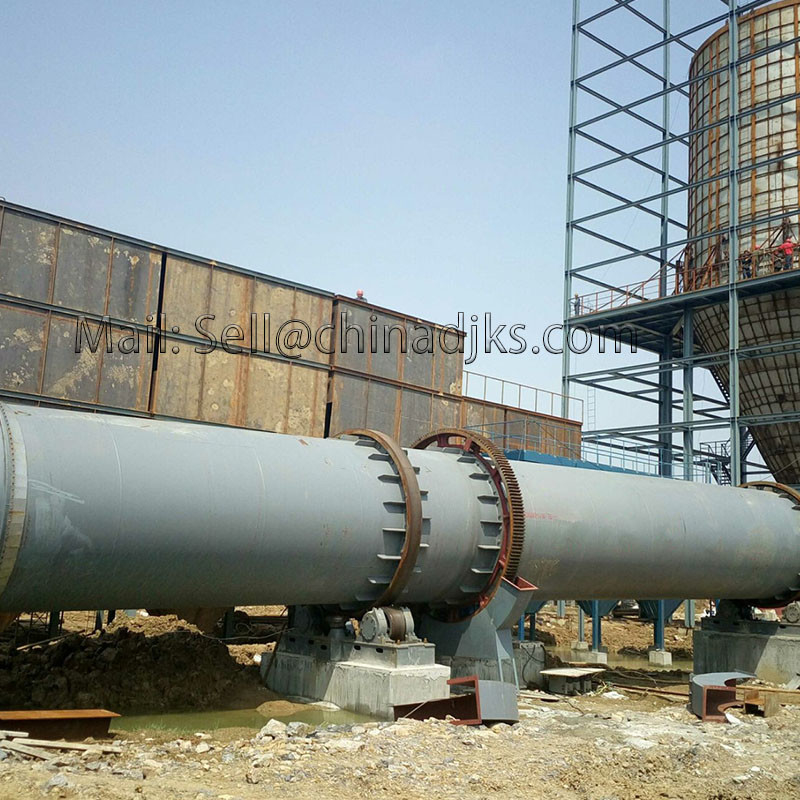

Coal Rotary Drying Upgrading Line of Rotary Dryer Series
Rotary Dryer Series coal material drying upgrading system is a set of new equipment developed by our company especially for dealing with coal materials based on years’ application experience. It is mainly used to upgrade coal materials with 15% to 50% moisture content, like lignite, coal slurry, Mongolia coal, Indonesia coal, flotation fine coal, blending coal, filtered tail coal, middling coal and semi-coke. It holds high drying strength and thermal efficiency can reach to over 90%.
We fully take the properties of materials to be dried into consideration while designing ROTARY DRYER system. Aimed the high moisture content feature, we do a special design for the internal structure which improves thermal efficiency and avoids over-dry phenomenon. ROTARY DRYER drying system works under hypoxic condition. ROTARY DRYER system is designed with explosion-proof modular, which guarantees safe and reliable performance. In order to meet demands of different customers, different markets, different environments, different materials property and different environmental protection standards, we do the most optimized configuration for ROTARY DRYER system. At present, coal drying upgrading system has been developed to the sixth generation. Zhengzhou Hengyang holds more than 20 patents now. Diameter of drying equipment ranges from 1 m to 4.2m and length ranges from 15m to 38m. Daily input capacity of Hengyang dryer can reach to 100 to 3000 tons. Final moisture after drying can be reduced to about 10%, even lower. For raw materials with high moisture, ROTARY DRYER system can avoid problems faced by traditional drying systems, like wall sticking and blocking. ROTARY DRYER system is characterized by smooth running, reliable operation, good product quality and strong evaporation capacity, which completely solve a series technical difficulties during material drying process.
Coal Rotary Drying Upgrading Line Technical Details
| Model | Size | Input capacity (t/h) | Evaporation capacity (t/h) | Motor power (Kw) | Occupation area |
| HYT1616 | 1.6×16m | 10-15 | 1.5-2 | 68 | 30×6 |
| HYT2018 | 2.0×18m | 25-30 | 3-5 | 126 | 35×7 |
| HYT2418 | 2.4×18m | 40-60 | 7-8 | 245 | 50×12 |
| HYT3020 | 3.0×20m | 70-90 | 11-13 | 358 | 50×15 |
| HYT3425 | 3.4×25m | 100-150 | 16-20 | 520 | 60×15 |
| HYT4036 | 4.0×36m | 130-200 | 28-40 | 635 | 70×15 |
| HYT4238 | 4.2×38m | 350-450 | 45-50 | 712 | 74×16 |
