Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-024

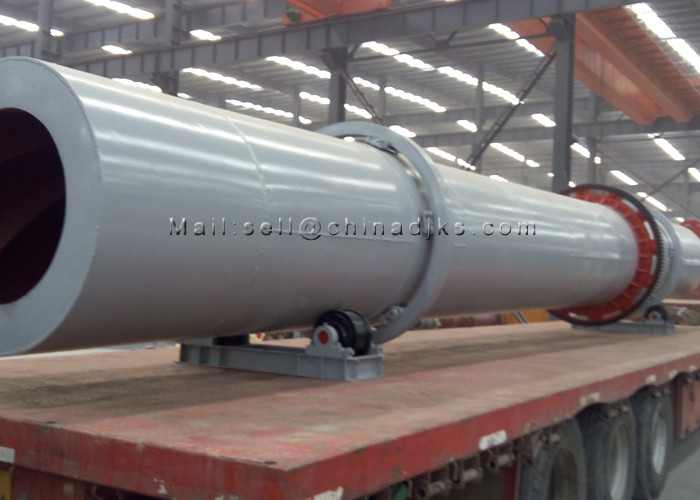

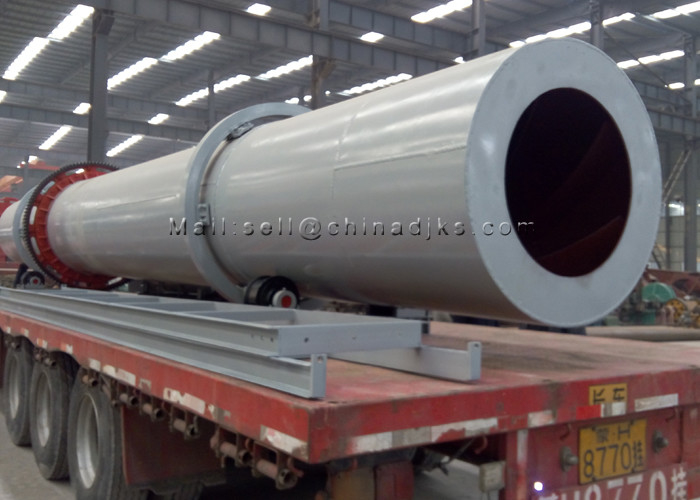

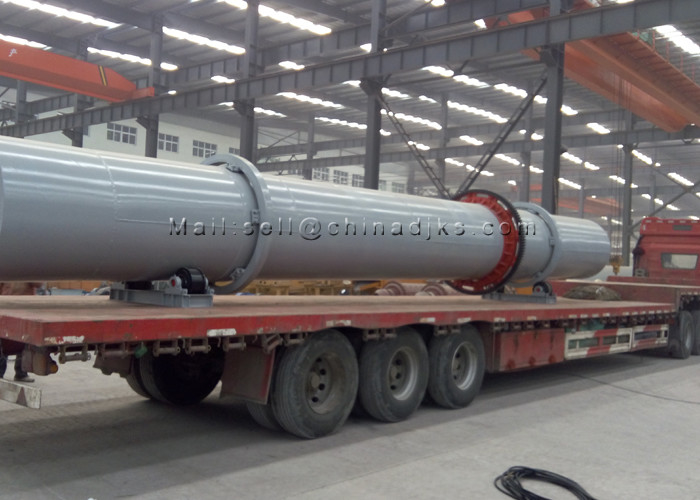

Iron Ore Pellets Rotary Dryer
Hengyang iron ore pellet rotary dryer is widely used in the field of building materials, metallurgies, chemical industry, cement, and more. Hengyang series Iron ore pellets dryer can dry slag, coal powder, mining powder, clay, sand, limestone, and more.
The Iron ore pellets rotary dryer is made into rotary body, lifting blade, driving device, and supporting device. It has advantages of reasonable structure, high efficiency, low energy consumption, and convenient for transportation.
Iron Ore Pellets Rotary Dryer Technical Details
| Specification | Length(m) | Evaporative Capacity(kgH2O/h) | Temperature(℃) | Speed(r/min) | Slope(%) |
| HYY1200 | 10~14 | ~800 | 850℃ | 0.5~5 | 1.5~4 |
| HYY1500 | 12~16 | ~1500 | |||
| HYY1800 | 16~20 | ~2600 | |||
| HYY2000 | 18~22 | ~3600 | |||
| HYY2200 | 20~24 | ~5000 | |||
| HYY2400 | 22~26 | ~6500 | |||
| HYY2600 | 24~30 | ~8000 | |||
| HYY2800 | 26~32 | ~9000 | |||
| HYY3000 | 28~34 | ~10000 | |||
| HYY3200 | 30~36 | ~11500 | |||
| HYY3600 | 34~40 | ~14000 | |||
| HYY4000 | 38~44 | ~19000 | |||
| HYY4500 | 40~60 | ~25000 |
