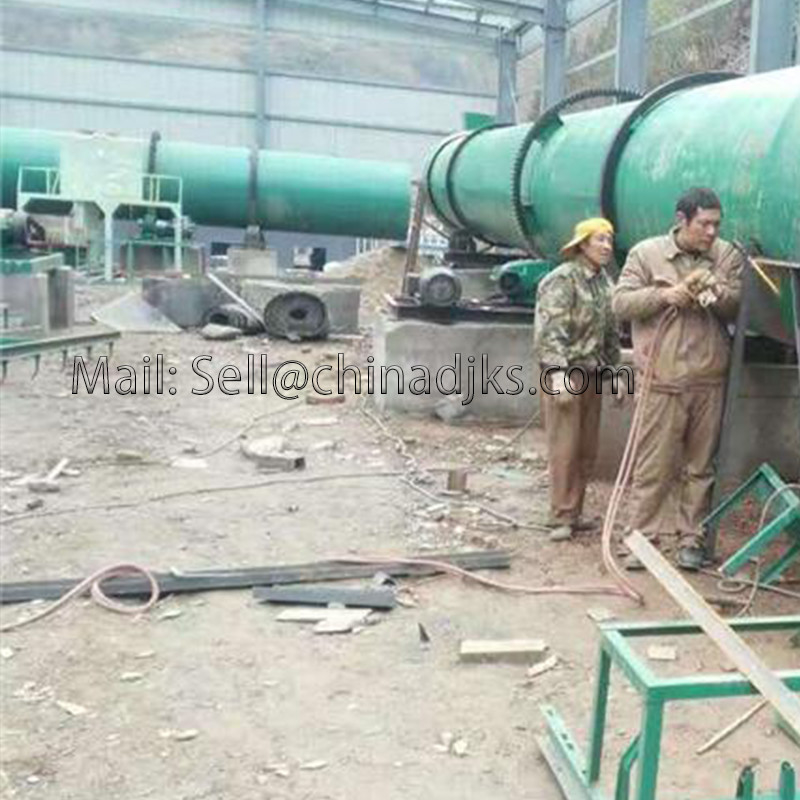

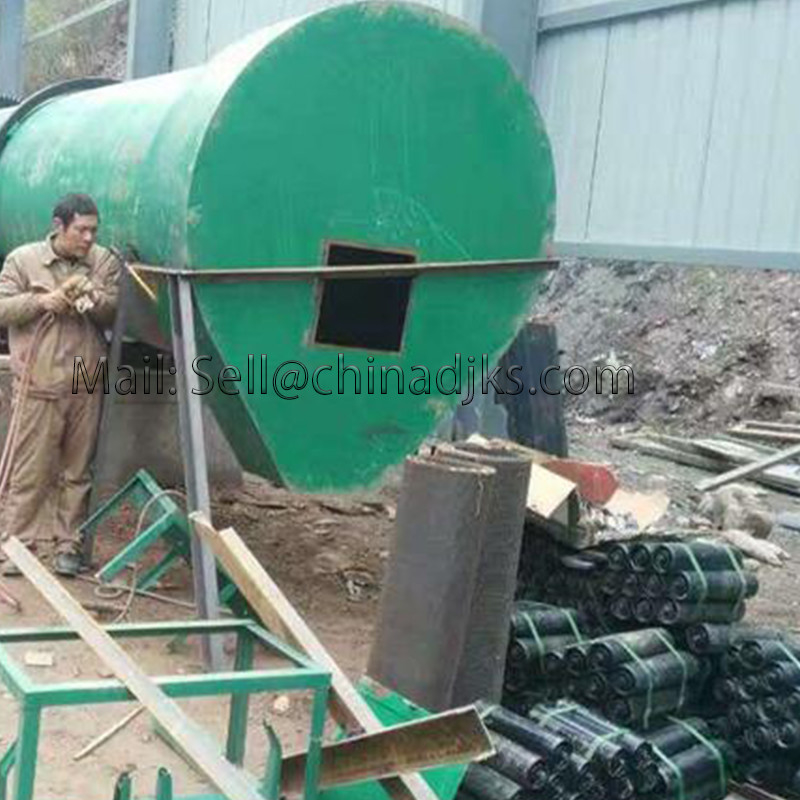

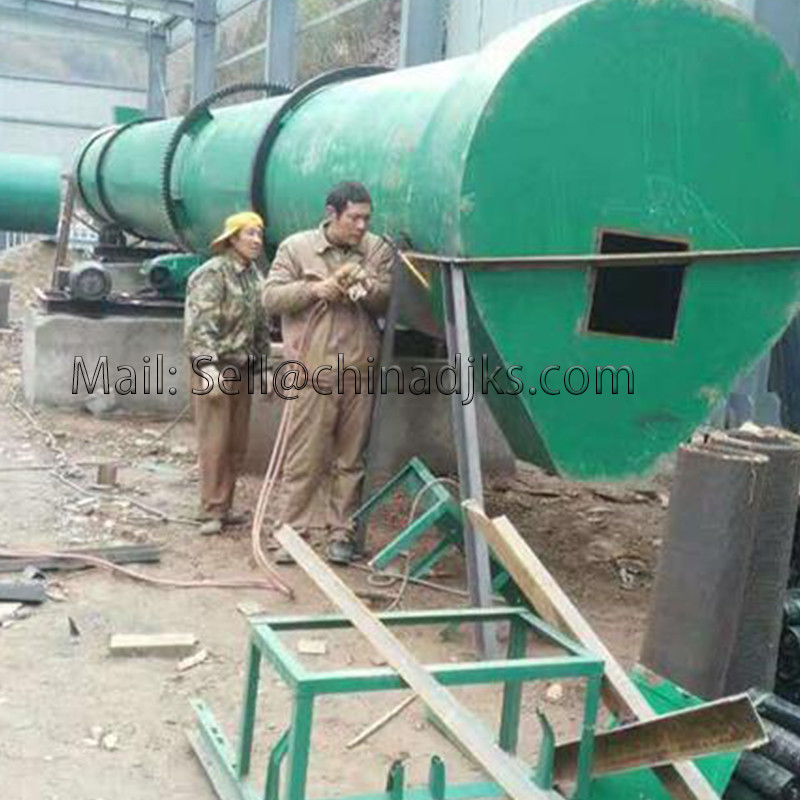

Laterite Nickle Ore Rotary Dryer Plant for Heavy Industry
Hengyang laterite nickle ore dryer can be used to dry ore materials with 25% internal and external moisture like laterite, red clay, nickle ore, and bauxite ore. It is suitable for large scale continuous drying work. Aimed at bound water and easy caking features, Hengyang team makes special design for gauranteening good drying effect. At present, Hengyang laterite nickle ore dryer has been put into application in nickle mine enterprises and created considerable economic profits. Hengyang company can also provide nickle ore calcining roasting production line for further improving product quality.
Hengyang laterite nickle ore dryer solves easy caking problem of red clay/laterite and changes material plate structure of common single drum dryer. It adopts compound self-cleaning device which greatly expands application range of single drum dryer and final product holds good quality. Free moisture can be reduced to lower than 1% and final product holds even particle size. Besides laterite, red clay, nickle ore and bauxite ore, Hengyang laterite nickle dryer also enjoys great popularity among customers for drying similar soil, mineral and sand stone materials.
Laterite Nickle Ore Rotary Dryer Technical Details
| Item | Gradient (%) |
Rotational speedr/min) | Inlet air temperature(℃) | Capacity (t/h) | Power(kw) |
| HYR600 | 3-5 | 3-8 | ≤850 | Different Materials Different Capacity. | 3 |
| HYR800 | 3-5 | 3-8 | ≤850 | 4 | |
| HYR1000 | 3-5 | 3-8 | ≤850 | 5.5 | |
| HYR1200 | 3-5 | 3-8 | ≤850 | 11 | |
| HYR1500 | 3-5 | 3-8 | ≤850 | 15 | |
| HYR1800 | 3-5 | 3-8 | ≤850 | 18.5 | |
| HYR2000 | 3-5 | 3-8 | ≤850 | 22 | |
| HYR2200 | 3-5 | 3-8 | ≤850 | 30 | |
| HYR2400 | 3-5 | 3-8 | ≤850 | 37 | |
| HYR2600 | 3-5 | 3-8 | ≤850 | 40 | |
| HYR2800 | 3-5 | 3-8 | ≤850 | 55 | |
| HYR3000 | 3-5 | 3-8 | ≤850 | 75 | |
| HYR3200 | 3-5 | 3-8 | ≤850 | 90 | |
| HYR3400 | 3-5 | 3-8 | ≤850 | 110 | |
| HYR3600 | 3-5 | 3-8 | ≤850 | 150 | |
| HYR4000 | 3-5 | 3-8 | ≤850 | 190 | |
| HYR4200 | 3-5 | 3-8 | ≤850 | 200 | |
| HYR4500 | 3-5 | 3-8 | ≤850 |
