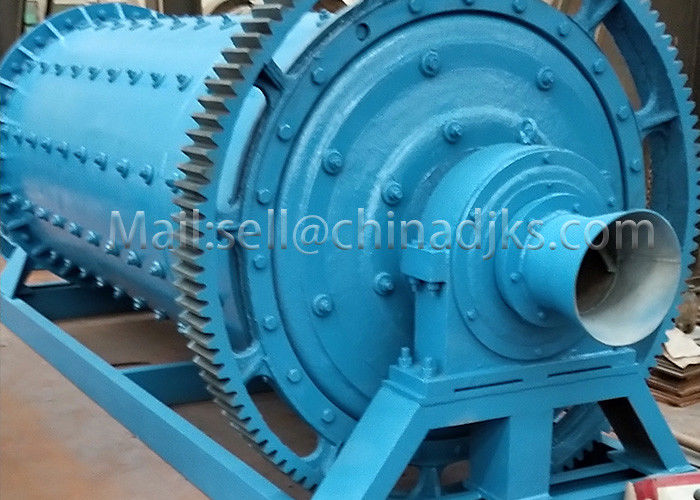

8-10t/h Sand Grinding Ball Mill at Hengyang Wearparts - Fast Delivery
A ball mill consists of a hollow cylindrical shell that rotates about its axis. It is partially filled with balls that can be made in chrome steel, stainless steel, rubber or ceramic. The inner part of the shell is usually lined with an abrasion-resistant material such as manganese steel or rubber.
For many years, Hengyang Industry has been used in inlet chutes and gratings to help extend service life and decrease downtime in ball mills.
Sand Ball Mill Working principle:
When the ball mill works, motor and speed reducer transmit torque force to big and small gears of ball mill, so the barrel rotates. When the barrel rotates, Steel balls or other grinding media in the barrel are lifted to a certain height and fall down freely, so materials in the barrel are impacted. Grinding media mixing with materials impact and grind materials continuously. The grinding media and materials impact and grind each other when the ball mill rotates continuously. The final product will be discharged from outlet when it meets the request, so the grinding process is finished application range, simple structure and convenient maintenance.
Sand Ball Mill Technical Details:
| Model | Feeding size(mm) | Discharging size(mm) | Capacity(t) | Motor power(kw) | Total Weight(t) |
| Ø900×1800 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.8 |
| Ø 900×3000 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.8 |
| Ø 1200×2400 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| Ø 1200×3000 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 13.2 |
| Ø 1200×4500 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.7 |
| Ø 1500×3000 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16.5 |
| Ø 1500×4500 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ø 1500×5700 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| Ø 1830×3000 | ≤25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| Ø 1830×4500 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
Hengyang ball mill equipment has complete models and specifications, which can meet the production needs of different users. Hengyang Industry is a large-scale mining machine manufacturer, contact us for the first-hand factory price.
