Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HY-150

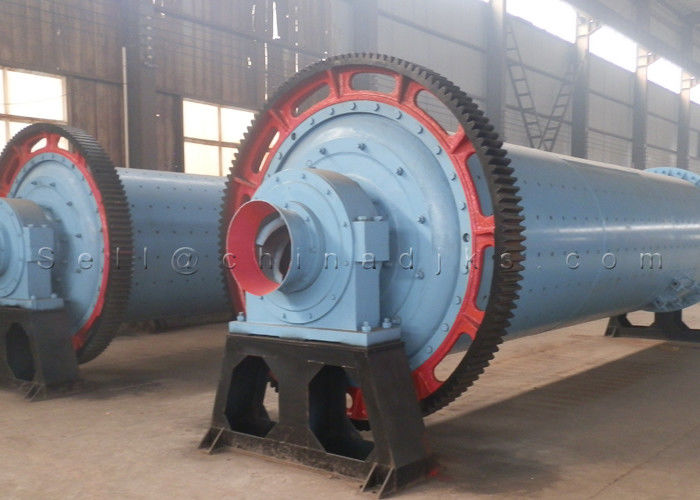

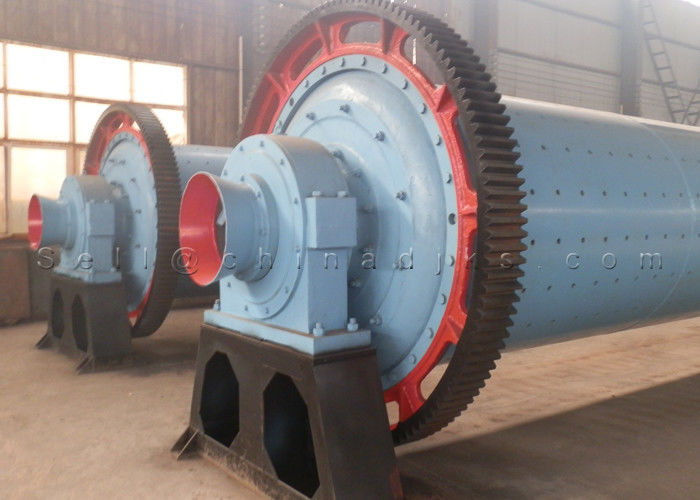

Beneficiation Plant Gold And Copper Ball Mill
Gold is often found associated with the mineral quartz. It is sometimes associated with other minerals as well, including iron and manganese oxides, calcite, pyrite and other sulfides as well. It is not uncommon for prospectors, especially those who operate metal detectors, to find a rich gold bearing specimens of ore. Sometimes the best use of these minerals is to sell them at specimens.
Jaw crusher, cone crusher, impact crusher, etc are all use for gold ore crushing, No matter which crushing system you're using, crushed gold ore into small sizes and than grinding them into powder.
Copper ore is also similar with gold ore, must use those machinery, not only for crusher, but also need ball mill.
Ball Mill Technical Details:
|
Sepc. (Dia. x L) |
Rotating Speed (r/min) |
Inlet grain size (mm) |
Capacity (t/h) |
Grinder load (t) |
Main motor
|
Main reducer
|
Weight (t) |
|||
| Type | Power(kw) | Rotating speed(r.p.m) | Type | Speed ratio | ||||||
| φ2.2×11 | 20.91 | ≤25 | 15～17 | 50 | TR1512-8 | 570 | 740 | Zd80 | 5.6 | 92 |
| φ2.4×8 | 20.91 | ≤25 | 14～18 | 39.5～42 | TRQ1512-8 | 570 | 740 | Zd80-9 | 5 | 76.4 |
| φ2.4×9 | 20.91 | ≤25 | 23～25closed | 50 | TR1512-8 | 570 | 740 | Zd80-9 | 5 | 91 |
| φ2.4×10 | 20.91 | ≤25 | 16～22 | 50 | TR1512-8 | 570 | 740 | Zd80-9 | 5 | 111 |
| φ2.4×11 | 21 | ≤25 | Open19～24 closed 22～28 |
62-65 | YR710-8/1180 | 710 | 740 | JDX630 | 5.6 | 125 |
| φ2.4×12 | 21 | ≤25 | Open18～20 closed 21～23 |
63-65 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 127 |
| φ2.4×13 | 21 | ≤25 | Open21～22 closed 24～26 |
66-68 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 131 |
| φ2.6×10 | 20.6 | ≤25 | 21～24 | 64 | YR800-8/1180 | 800 | 740 | JDX710 | 6.3 | 140 |
| φ2.6×13 | 20.6 | ≤25 | 28～31 | 81 | YR1000-8/1180 | 1000 | 740 | JDX800 | 6.3 | 158 |
| φ3.0×9 | 19.13 | ≤25 | 40～45 | 85 | YR1000-8/1180 | 1000 | 740 | MBY800 | 7.1 | 148 |
| φ3×11 | 18.92 | ≤25 | 44～47 | 95 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 177 |
| φ3×12 | 18.92 | ≤25 | 48～52 | 103 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 182 |
| φ3×13 | 18.92 | ≤25 | 39～45 | 116max | YR1400-8/1430 | 1400 | 740 | JDX900 | 7.1 | 200.7 |
| φ3.2×11 | 18.3 | ≤25 | 45～48 | 112max | YR1600-8/1430 | 1400 | 740 | JDX900 | 7.15 | 213.6 |
| φ3.2×13 | 18.7 | ≤25 | 50～55 | 133max | YR1600-8/1430 | 1600 | 740 | JDX1000 | 7.15 | 237 |
| φ3.4×11 | 18 | ≤25 | 45～55 | 120max | YR1600-8/1430 | 1600 | 740 | JDX1000 | 230 | |
| φ3.5×13 | 17 | ≤25 | 60～65 | 156max | YR2000-8/1730 | 2000 | 740 | TS130-A-F1 | 257.6 | |
| φ3.8×13 (main bearing) |
17 | ≤25 | 65～70 | 190 | YR2500-8/1730 | 2500 | 740 | JS130-C-F1 | 316 | |
| φ3.8×13 (slide shoe edge-driving) |
17 | ≤25 | 65～70 | 185 | YR2500-8/1730 | 2500 | 740 | DMG22/2500 | 313 | |
| φ4×13 | 16.3 | ≤25 | 78～80 | 191 | YRKK900-80 | 2800 | 745 | JS140-A | 348 | |
| φ4.2×11 (main bearing) |
15.8 | ≤25 | 100～110 | 182～190 | YR2800-8/17830 | 2800 | 740 | JS140-A-F1D | 350 | |
| φ4.2×13 ((main bearing)) |
15.2 | ≤25 | 110～120 | 230 | YRKK1000-8 | 3350 | 740 | MFY355-A | 375 | |
| φ4.2×13 (main bearing) |
15.2 | ≤25 | 120～130 | 245 | YRKK1000-8 | 3350 | 740 | MFY355-A | 390 | |
| φ4.2×13 (central driving) |
15.2 | ≤25 | 110～120 | 230 | YRKK1000-8 | 3350 | 740 | MFY355-A | 380 | |
| φ4.6×14 | 15 | ≤25 | 100～115 | 285 | YR1000-8 | 4200 | 740 | J3160-C | 48 | |
