Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HY-147

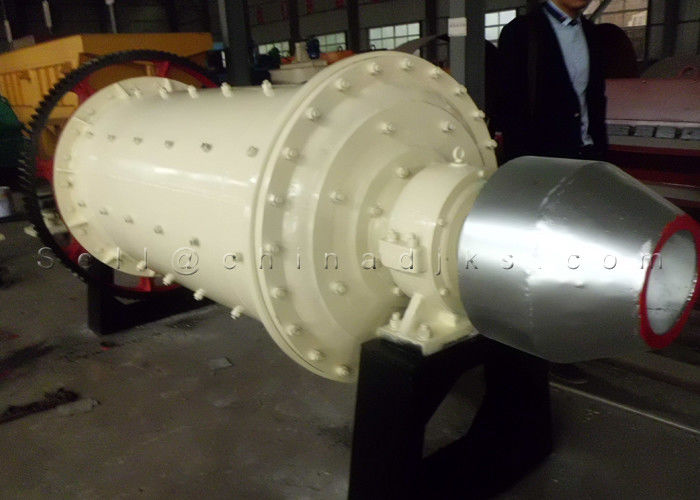

Aluminum Oxide Powder Mining Ball Mill of Mineral Processing Plant
Ball Mill for Aluminum Oxide Powder with ISO Approved refractory grinding mill Introduction:
Ball mill is the key milling equipment after materials has been crushed. Aluminum oxide is the principal oxide of aluminum. Suboxides exist only as gaseous species at high temperatures and under low oxygen partial pressures. Aluminum oxide forms the basis of a very wide and important range of ceramic articles
Ball Mill for Aluminum Oxide Powder with ISO Approved refractory grinding mill Applicable Materials:
Are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.
Ball Mill Technical details:
Sepc. (Dia. x L) |
Rotating Speed (r/min) |
Inlet grain size (mm) |
Capacity (t/h) |
Grinder load (t) |
Main motor
|
Main reducer
|
Weight (t) |
|||
Type | Power(kw) | Rotating speed(r.p.m) | Type | Speed ratio | ||||||
φ2.2×11 | 20.91 | ≤25 | 15~17 | 50 | TR1512-8 | 570 | 740 | Zd80 | 5.6 | 92 |
φ2.4×8 | 20.91 | ≤25 | 14~18 | 39.5~42 | TRQ1512-8 | 570 | 740 | Zd80-9 | 5 | 76.4 |
φ2.4×9 | 20.91 | ≤25 | 23~25closed | 50 | TR1512-8 | 570 | 740 | Zd80-9 | 5 | 91 |
φ2.4×10 | 20.91 | ≤25 | 16~22 | 50 | TR1512-8 | 570 | 740 | Zd80-9 | 5 | 111 |
φ2.4×11 | 21 | ≤25 | Open19~24 closed 22~28 |
62-65 | YR710-8/1180 | 710 | 740 | JDX630 | 5.6 | 125 |
φ2.4×12 | 21 | ≤25 | Open18~20 closed 21~23 |
63-65 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 127 |
φ2.4×13 | 21 | ≤25 | Open21~22 closed 24~26 |
66-68 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 131 |
φ2.6×10 | 20.6 | ≤25 | 21~24 | 64 | YR800-8/1180 | 800 | 740 | JDX710 | 6.3 | 140 |
φ2.6×13 | 20.6 | ≤25 | 28~31 | 81 | YR1000-8/1180 | 1000 | 740 | JDX800 | 6.3 | 158 |
φ3.0×9 | 19.13 | ≤25 | 40~45 | 85 | YR1000-8/1180 | 1000 | 740 | MBY800 | 7.1 | 148 |
φ3×11 | 18.92 | ≤25 | 44~47 | 95 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 177 |
φ3×12 | 18.92 | ≤25 | 48~52 | 103 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 182 |
φ3×13 | 18.92 | ≤25 | 39~45 | 116max | YR1400-8/1430 | 1400 | 740 | JDX900 | 7.1 | 200.7 |
φ3.2×11 | 18.3 | ≤25 | 45~48 | 112max | YR1600-8/1430 | 1400 | 740 | JDX900 | 7.15 | 213.6 |
φ3.2×13 | 18.7 | ≤25 | 50~55 | 133max | YR1600-8/1430 | 1600 | 740 | JDX1000 | 7.15 | 237 |
φ3.4×11 | 18 | ≤25 | 45~55 | 120max | YR1600-8/1430 | 1600 | 740 | JDX1000 | 230 | |
φ3.5×13 | 17 | ≤25 | 60~65 | 156max | YR2000-8/1730 | 2000 | 740 | TS130-A-F1 | 257.6 | |
φ3.8×13 (main bearing) |
17 | ≤25 | 65~70 | 190 | YR2500-8/1730 | 2500 | 740 | JS130-C-F1 | 316 | |
φ3.8×13 (slide shoe edge-driving) |
17 | ≤25 | 65~70 | 185 | YR2500-8/1730 | 2500 | 740 | DMG22/2500 | 313 | |
φ4×13 | 16.3 | ≤25 | 78~80 | 191 | YRKK900-80 | 2800 | 745 | JS140-A | 348 | |
φ4.2×11 (main bearing) |
15.8 | ≤25 | 100~110 | 182~190 | YR2800-8/17830 | 2800 | 740 | JS140-A-F1D | 350 | |
φ4.2×13 ((main bearing)) |
15.2 | ≤25 | 110~120 | 230 | YRKK1000-8 | 3350 | 740 | MFY355-A | 375 | |
φ4.2×13 (main bearing) |
15.2 | ≤25 | 120~130 | 245 | YRKK1000-8 | 3350 | 740 | MFY355-A | 390 | |
φ4.2×13 (central driving) |
15.2 | ≤25 | 110~120 | 230 | YRKK1000-8 | 3350 | 740 | MFY355-A | 380 | |
φ4.6×14 | 15 | ≤25 | 100~115 | 285 | YR1000-8 | 4200 | 740 | J3160-C | 48 |
