Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HY-146

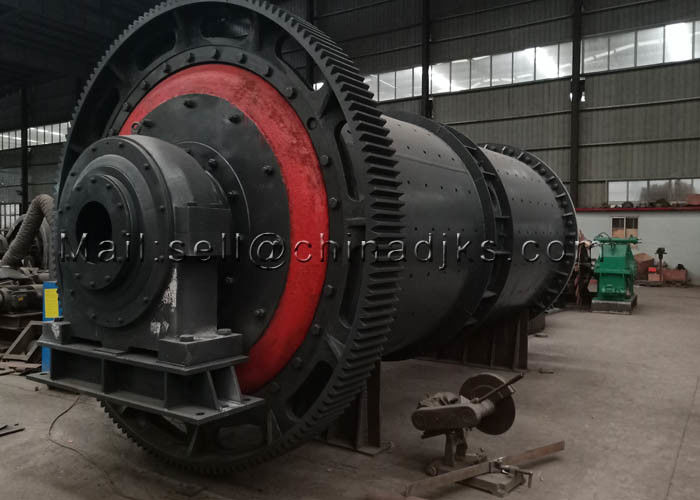

Feldspar Quartz Iron Ore Grinding Rod Mining Ball Mill
Rod mill has certain selective grinding effect in the grinding process because of the grinding medium and ore are line contacted. The product particle size is uniform, and excessive grinding ore grain is little. It is widely used in fine crushing and grinding operation of feldspar, quartz, abrasive, refractory material, cement, steel grit, slag, copper ore, iron ore, gold ore grit and other hard or brittle material.
The design and manufacturing standard is complied with Chinese GB/T 25708-2010 Standard, such features by using of high manganese steel wearing resistant liner, composite alloy liner and new rubber liner as well as high strength, strong toughness grinding media(Low chromium ball ), and Tin-based Babbitt alloy Positioning aligning bearing, has guaranteed the highest superiority in performance while compared with other brand ball mill.
There are two type of configuration on the ball mill, the common configuration and high configuration. Normally only the diameter above 2700 size is manufactured with this configuration
Rod Ball Mill Technical Details
| Model | Feeding size (mm) |
Discharging size (mm) |
Capacity (t) |
Motor power (kw) |
Total Weight (t) |
| Ф900×1800 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.8 |
| Ф900×3000 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.8 |
| Ф1200×2400 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| Ф1200×3000 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 13.2 |
| Ф1200×4500 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.7 |
| Ф1500×3000 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16.5 |
| Ф1500×4500 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ф1500×5700 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| Ф1830×3000 | ≤25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| Ф1830×4500 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| Ф1830×6400 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 46 |
| Ф1830×7000 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 49 |
| Ф2100×3000 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 48 |
| Ф2100×4500 | ≤25 | 0.074-0.4 | 8-43 | 245 | 59 |
| Ф2100×7000 | ≤25 | 0.074-0.4 | 8-48 | 280 | 67.5 |
| Ф2200×4500 | ≤25 | 0.074-0.4 | 9-45 | 280 | 58 |
| Ф2200×6500 | ≤25 | 0.074-0.4 | 14-26 | 380 | 63 |
| Ф2200×7000 | ≤25 | 0.074-0.4 | 15-28 | 380 | 65.3 |
| Ф2200×7500 | ≤25 | 0.074-0.4 | 15-30 | 380 | 66.5 |
| Ф2400×3000 | ≤25 | 0.074-0.4 | 7-50 | 245 | 65 |
| Ф2400×4500 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 70 |
| Ф2700×4000 | ≤25 | 0.074-0.4 | 12-80 | 400 | 92 |
| Ф2700×4500 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
| Ф3200×4500 | ≤25 | 0.074-0.4 | Determined by the technological process | 600 | 137 |
| Ф3600×4500 | ≤25 | 0.074-0.4 | Determined by the technological process | 850 | 158 |
| Ф3600×6000 | ≤25 | 0.074-0.4 | Determined by the technological process | 1250 | 175 |
