Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HY-144

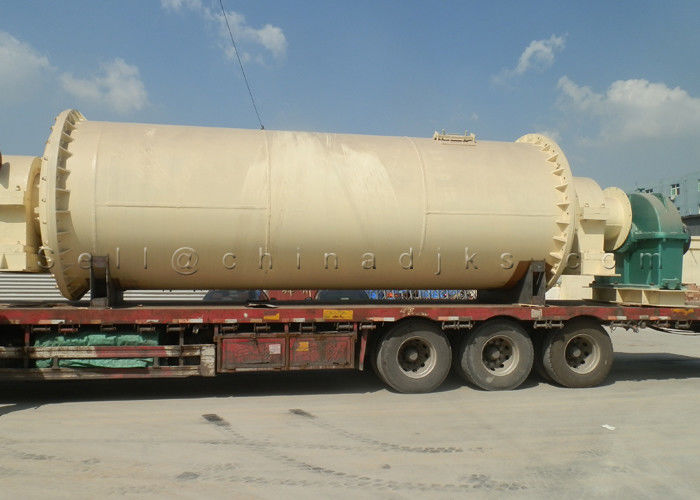

Mining Ore Ball Mill / Gold Copper Iron Tin Manganese Lead Ball Mill
Ball Mill consists of feed&discharge parts, rotary shell, transmission part and other major components. Hollow shaft is with steel parts, lining is removable. Rotary gear adopts casting hobbing, and the tube body is with resisting liner.
Ball Mill Advantages:
- Products with Customers' Designs
- Strong Machining & Heat Treatment Abilities
- Strict Quality Control
- Prompt Delivery
-Experience in Cooperation with Fortune 500 Companies
Ball Mill Application:
--Mining
--Metallurgy
--Power Generation
--Sugar
--Cement Plant
--Port Machinery
--Oil and natural
--Papermaking
--OEM gear case
--General Industrial
Ball Mill Technical Details:
|
Model
|
Effective volume (m3) |
Max. steel ball load (t) |
Capacity (t/h) |
Power (kW) |
Rotary speed(rpm) |
Weight (t) |
||||
| MQG | MQY | MQS | MQG | MQY | MQS | |||||
| φ900×1800 | 1 | 1.3 | 1.7 | 2 | 0.9-1.6 | 1.7-3.2 | 2-3.7 | 15 | 37 | 4.2 |
| φ900×2100 | 1.1 | 1.5 | 1.9 | 2.3 | 1-1.9 | 2-3.7 | 2.3-4.3 | 18.5 | 37 | 4.9 |
| φ900×3000 | 1.6 | 2.2 | 2.8 | 3.3 | 1.4-2.7 | 2.9-5.4 | 3.3-6.2 | 30 | 37 | 7.6 |
| φ1200×2400 | 2.4 | 3.3 | 4.1 | 4.9 | 2.2-4 | 4.3-8 | 5-9.2 | 30 | 35 | 8.7 |
| φ1200×3000 | 3 | 4.1 | 5.2 | 6.2 | 2.7-5 | 5.4-10 | 6.2-12 | 37 | 35 | 13 |
| φ1200×4500 | 4.4 | 6.2 | 7.7 | 9.3 | 4-7.5 | 8.1-15 | 9.3-17 | 55 | 35 | 14 |
| φ1500×3000 | 4.8 | 6.6 | 8.3 | 10 | 4.3-8 | 8.6-16 | 10-19 | 75 | 29 | 15 |
| φ1500×4500 | 7.1 | 10 | 12 | 15 | 6.5-12 | 13-24 | 15-28 | 110 | 29 | 18 |
| φ1500×5700 | 9 | 13 | 16 | 19 | 8.2-15 | 16-31 | 19-35 | 130 | 29 | 24 |
| φ1830×3000 | 7.1 | 10 | 12 | 15 | 6.4-12 | 13-24 | 15-28 | 130 | 24.5 | 28 |
| φ1830×4500 | 10.6 | 15 | 18 | 22 | 10-18 | 19-36 | 22-41 | 155 | 24.5 | 32 |
| φ1830×6500 | 15.3 | 21 | 27 | 32 | 14-26 | 28-52 | 32-60 | 210 | 24 | 35 |
| φ1830×7000 | 16.5 | 23 | 29 | 34 | 15-28 | 30-56 | 35-64 | 245 | 24 | 37 |
| φ2100×3000 | 9.4 | 13 | 16 | 20 | 9-16 | 17-32 | 20-37 | 155 | 23.5 | 42 |
| φ2100×3600 | 11.3 | 16 | 20 | 24 | 10-19 | 21-38 | 24-44 | 180 | 23.5 | 44 |
| φ2100×4500 | 14.1 | 20 | 25 | 30 | 13-24 | 26-48 | 30-55 | 245 | 23.5 | 52 |
| φ2100×7000 | 22 | 31 | 38 | 46 | 20-37 | 40-74 | 46-86 | 380 | 23.5 | 57 |
| φ2200×3600 | 12.5 | 17 | 22 | 26 | 11-21 | 23-42 | 26-49 | 210 | 21.5 | 52 |
| φ2200×4500 | 15.6 | 22 | 27 | 33 | 14-26 | 28-53 | 33-61 | 245 | 21.5 | 54 |
| φ2200×6500 | 22.5 | 31 | 39 | 47 | 20-38 | 41-76 | 47-88 | 320 | 21.5 | 60 |
| φ2200×7000 | 24.2 | 34 | 42 | 51 | 22-41 | 44-82 | 51-95 | 380 | 21.5 | 63 |
| φ2200×8000 | 27.8 | 38 | 48 | 57 | 26-46 | 49-90 | 57-104 | 420 | 21.5 | 67 |
| φ2400×3600 | 15 | 21 | 26 | 31 | 14-25 | 27-51 | 31-58 | 280 | 21.3 | 60 |
| φ2400×4500 | 18.7 | 26 | 33 | 39 | 17-32 | 34-63 | 39-73 | 320 | 21.3 | 71 |
| φ2400×6000 | 24.9 | 35 | 43 | 52 | 23-42 | 45-84 | 52-97 | 400 | 21.3 | 84 |
| φ2400×7000 | 29.1 | 41 | 51 | 61 | 26-49 | 53-98 | 61-113 | 475 | 21.3 | 92 |
| φ2700×3600 | 18.8 | 26 | 33 | 39 | 17-32 | 34-64 | 40-73 | 380 | 20.6 | 82 |
| φ2700×4500 | 23.5 | 33 | 41 | 49 | 21-40 | 43-80 | 49-92 | 480 | 20.6 | 90 |
| φ2700×6000 | 31.4 | 44 | 55 | 66 | 29-53 | 57-106 | 66-122 | 560 | 20.6 | 105 |
| φ2700×7000 | 36.6 | 51 | 64 | 77 | 33-62 | 67-124 | 77-143 | 630 | 20.6 | 110 |
| φ3200×4500 | 33.5 | 47 | 58 | 70 | 31-57 | 61-113 | 70-131 | 800 | 18.2 | 137 |
| φ3200×6000 | 44.7 | 62 | 78 | 94 | 41-76 | 81-151 | 94-174 | 1000 | 18.2 | 160 |
| φ3200×7000 | 52.2 | 73 | 91 | 109 | 47-88 | 95-176 | 110-203 | 1120 | 18.2 | 185 |
| φ3600×4500 | 42.8 | 60 | 75 | 90 | 39-72 | 78-145 | 90-167 | 1120 | 17 | 200 |
| φ3600×6000 | 57.1 | 80 | 100 | 119 | 52-96 | 104-193 | 120-223 | 1400 | 17 | 220 |
| φ3600×7000 | 66.6 | 93 | 116 | 139 | 61-113 | 121-225 | 140-260 | 1600 | 17 | 245 |
| φ3600×8000 | 76.1 | 106 | 133 | 159 | 70-129 | 138-257 | 160-297 | 1600 | 17 | 270 |
| φ3600×9000 | 85.6 | 120 | 149 | 179 | 78-145 | 156-289 | 180-334 | 1800 | 17 | 285 |
| φ3800×6500 | 69.1 | 96 | 121 | 145 | 63-117 | 126-234 | 145-270 | 1800 | 16.7 | 277 |
| φ3800×8500 | 90.4 | 126 | 158 | 189 | 82-153 | 165-306 | 190-353 | 2250 | 16.7 | 300 |
