Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HY-141
Mineral Processing Plant Gold Concentration Ore Processing Plant
Gold is often found associated with the mineral quartz. It is sometimes associated with other minerals as well, including iron and manganese oxides, calcite, pyrite and other sulfides as well. It is not uncommon for prospectors, especially those who operate metal detectors, to find a rich gold bearing specimens of ore. Sometimes the best use of these minerals is to sell them at specimens.

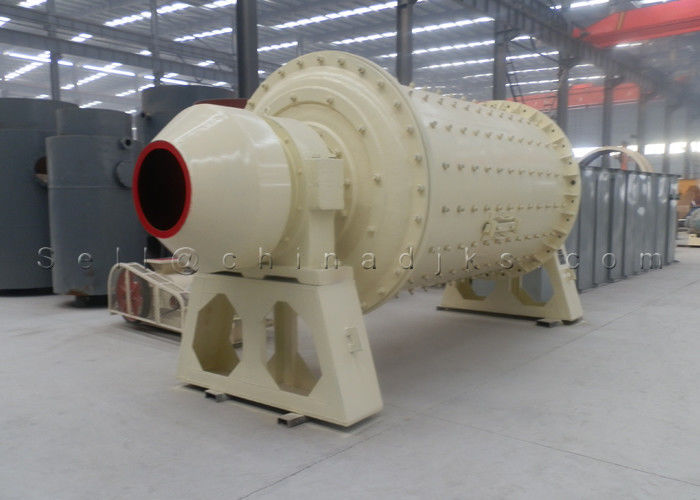

Ball Mill Structure
The structure of ball mill is as follows, which is composed of feed opening, discharging port, cylinder, lining plate, grinding ball, etc.

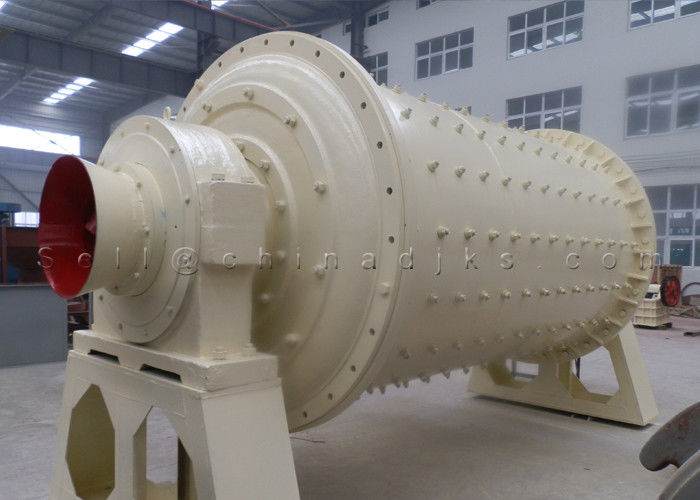

Gold Ore Grinding Ball Mill
Gold ore after crushing are in small sizes, less than 20, must be grinding into powder and use for concentration.
Ball Mill Technical Details
| Model | Feeding size (mm) |
Discharging size (mm) |
Capacity (t) |
Motor power (kw) |
Total Weight (t) |
| Ф900×1800 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.8 |
| Ф900×3000 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.8 |
| Ф1200×2400 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| Ф1200×3000 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 13.2 |
| Ф1200×4500 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.7 |
| Ф1500×3000 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16.5 |
| Ф1500×4500 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ф1500×5700 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| Ф1830×3000 | ≤25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| Ф1830×4500 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| Ф1830×6400 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 46 |
| Ф1830×7000 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 49 |
| Ф2100×3000 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 48 |
| Ф2100×4500 | ≤25 | 0.074-0.4 | 8-43 | 245 | 59 |
| Ф2100×7000 | ≤25 | 0.074-0.4 | 8-48 | 280 | 67.5 |
| Ф2200×4500 | ≤25 | 0.074-0.4 | 9-45 | 280 | 58 |
| Ф2200×6500 | ≤25 | 0.074-0.4 | 14-26 | 380 | 63 |
| Ф2200×7000 | ≤25 | 0.074-0.4 | 15-28 | 380 | 65.3 |
| Ф2200×7500 | ≤25 | 0.074-0.4 | 15-30 | 380 | 66.5 |
| Ф2400×3000 | ≤25 | 0.074-0.4 | 7-50 | 245 | 65 |
| Ф2400×4500 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 70 |
| Ф2700×4000 | ≤25 | 0.074-0.4 | 12-80 | 400 | 92 |
