Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HY-141

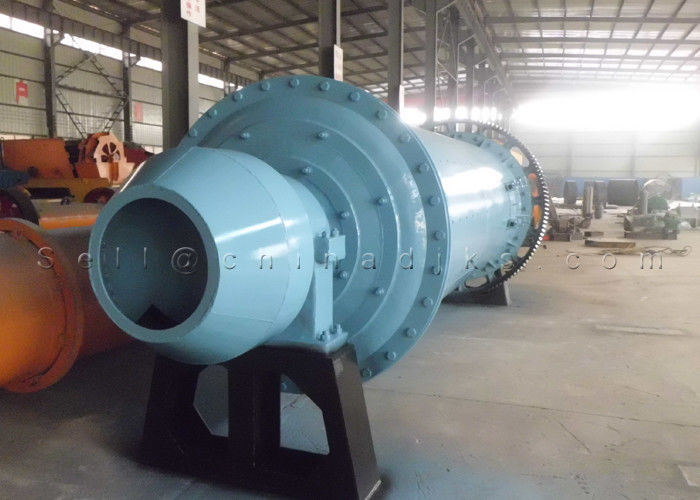

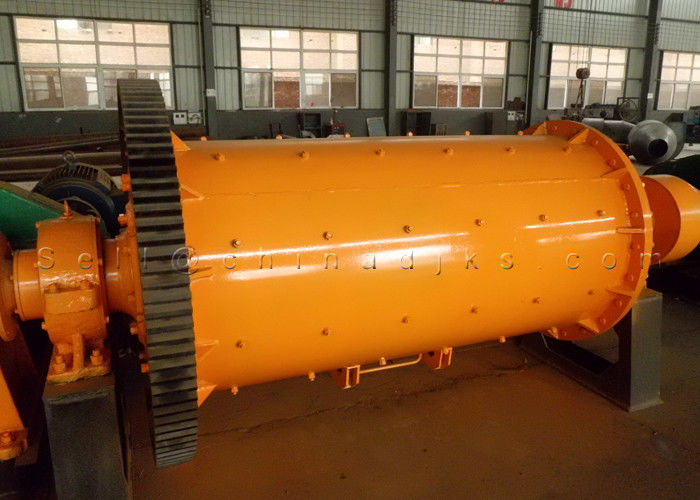

New Generation Ball mill used in various industry
With more than 100 years of experience in developing this technology. Hengyang Industry has designed, manufactured and installed over 8,000 ball and pebble mills all over the world for a wide range of applications. Some of those applications are grate discharge, peripheral discharge, dry grinding, special length to diameter ratio, high temperature milling oprations and more.
All equipment adheres to the applicable standards set. Reliable and effective grinding mills includes being safe throughout. When the mills are quoted we make sure to include any and all safety components needed.
Long life and minimum maintenance of ball mill
To help you get the most of your business, we have designed our ball mills with long-term operation in mind with a minimum need for maintenance.
Ball Mill Support for results
To ensure top-of-the-line operation, software can be developed to suit the most complicated circuits and complex ores. Our engineers can specify or supply computer control systems for your sophisticated circuit needs. These controls are feasible for also smaller installations.
Ball Mill Technical Details
| Model | Feeding size (mm) |
Discharging size (mm) |
Capacity (t) |
Motor power (kw) |
Total Weight (t) |
| Ф900×1800 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.8 |
| Ф900×3000 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.8 |
| Ф1200×2400 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| Ф1200×3000 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 13.2 |
| Ф1200×4500 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.7 |
| Ф1500×3000 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16.5 |
| Ф1500×4500 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ф1500×5700 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| Ф1830×3000 | ≤25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| Ф1830×4500 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| Ф1830×6400 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 46 |
| Ф1830×7000 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 49 |
| Ф2100×3000 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 48 |
| Ф2100×4500 | ≤25 | 0.074-0.4 | 8-43 | 245 | 59 |
| Ф2100×7000 | ≤25 | 0.074-0.4 | 8-48 | 280 | 67.5 |
| Ф2200×4500 | ≤25 | 0.074-0.4 | 9-45 | 280 | 58 |
| Ф2200×6500 | ≤25 | 0.074-0.4 | 14-26 | 380 | 63 |
| Ф2200×7000 | ≤25 | 0.074-0.4 | 15-28 | 380 | 65.3 |
| Ф2200×7500 | ≤25 | 0.074-0.4 | 15-30 | 380 | 66.5 |
| Ф2400×3000 | ≤25 | 0.074-0.4 | 7-50 | 245 | 65 |
| Ф2400×4500 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 70 |
| Ф2700×4000 | ≤25 | 0.074-0.4 | 12-80 | 400 | 92 |
| Ф2700×4500 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
| Ф3200×4500 | ≤25 | 0.074-0.4 | Determined by the technological process | 600 | 137 |
| Ф3600×4500 | ≤25 | 0.074-0.4 | Determined by the technological process | 850 | 158 |
| Ф3600×6000 | ≤25 | 0.074-0.4 | Determined by the technological process | 1250 | 175 |
