Q235 Shell Ceramic Clay Grinding Mineral Processing Plant 15t/H

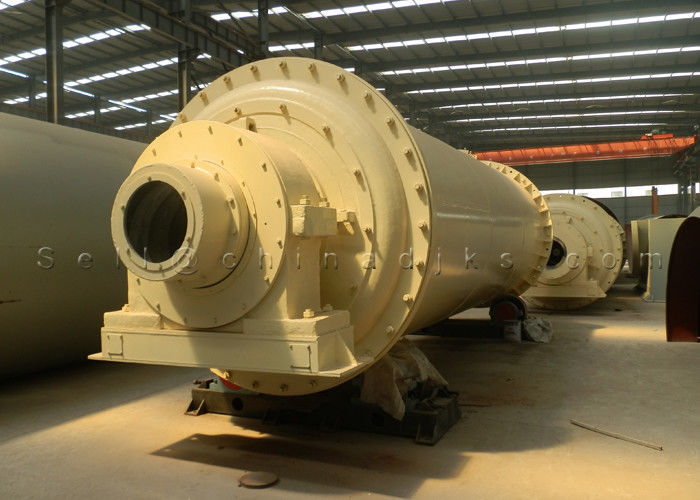

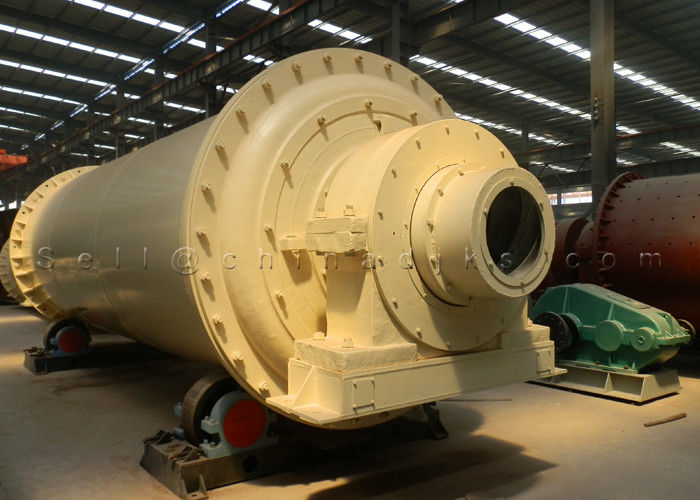

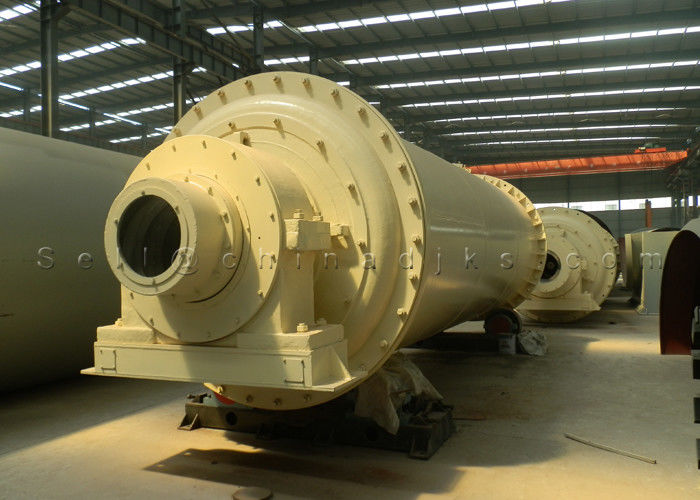

Ф2200*9000mm Kaolin ( Ceramic Clay) Grinding Ball Mill

The kaolin (ceramic clay) ball mill is used to grind kaolin into powder for making ceramic materials, and also can use for other kind of materials, like bauxite, etc.

Kaolin (ceramic clay) ball mill's structural features:

Kaolin (ceramic clay) ball mill is composed of feeding part, discharging part, rotation part and driving part (reducer, small driving gear, electric motor and electric control) and other major parts. The hollow shaft uses steel casting, the lining can be replaced, rotary gearwheel made with casting gear hobbing for process, the cylinder body beset with wear-resisting backing board, has good wear resistance. The operation of this ball mill is very stable and reliable.

Kaolin (ceramic clay) ball mill Features

The discharging port's pulp surface is low, the pulp can pass quickly to reduce ore excessive wear; put more balls, big balls and small balls can be loaded, and small balls can't be discharged, but also form a good working conditions; under the same condition, production capacity is higher, power consumption is low, its disadvantage is complex structure. But overflow-type ball mill has simple structure; management and maintenance are more convenient, so the operating rate is relatively high. Generally, fine grinding fineness is suitable for overflow type, thick grinding fineness is suitable for grid type (to avoid excessive wear to have negative effects).

Kaolin (ceramic clay) Ball Mill Technical details:

Shell Diameter: 2200mm

Shell Length: 9000mm

Feeding size: ≤25mm

Motor: 630kw

Gearbox: ZD70

Output size: 0.074-0.4mm

Capacity: 13-15t/h

Weight: 94.5t

Shell Material: Q235
