Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HY-138

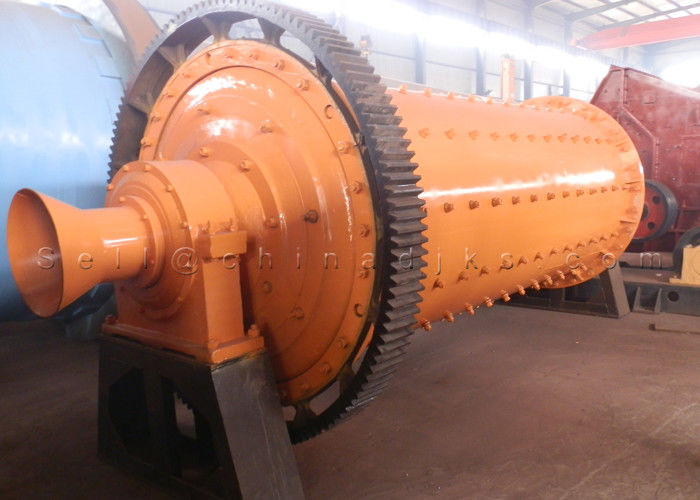

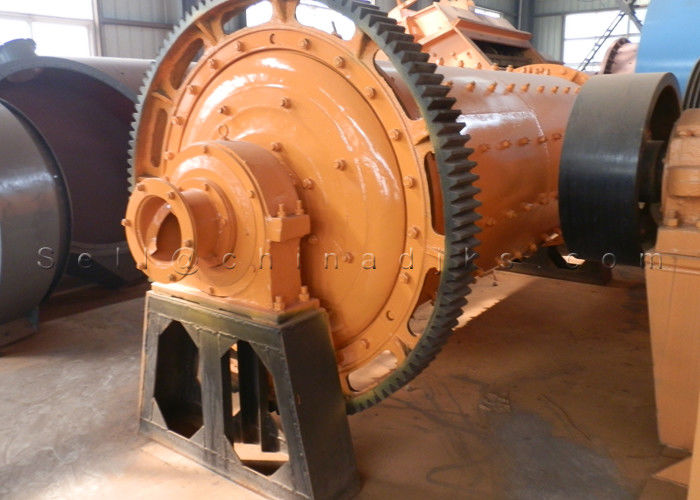

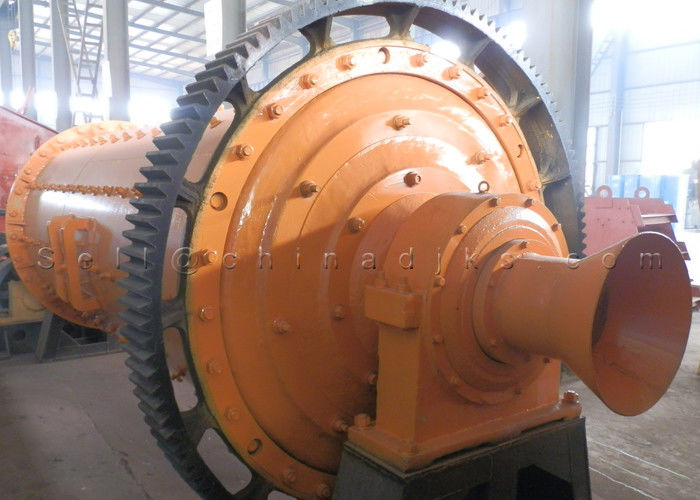

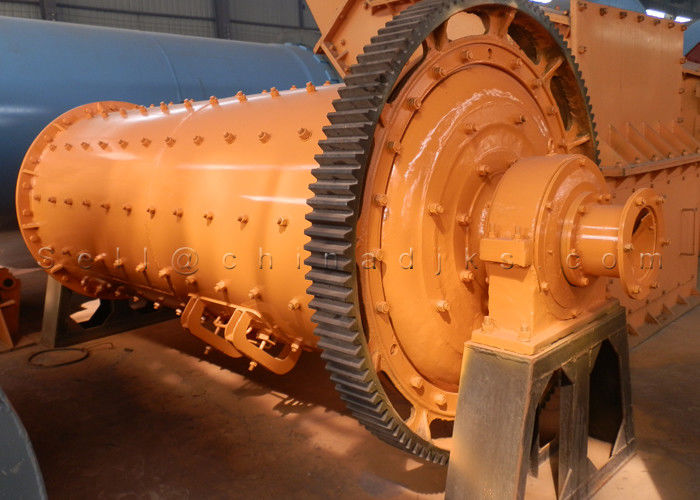

Potassium Feldspar Grinding Ball Mill
Ball mill is a key equipment to grind the crushed materials, widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, Gold Chrome Copper ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. And the ball mill can grind various ores and other materials with dry type and wet type.
Ball mill Working principle
Ball mill is horizontal cylindrical rotation device, driving by brim gearwheel, there are two chambers and grid. Material goes into the first chamber through the feeding inlet, inside the first chamber, there are stage liners and ripple liners as well as steel balls with various kinds. The shell rotates which generates eccentricity, this force brings balls to a certain height and
then balls drop down by gravity, which will impact and grind the material. After the primary grinding in the first chamber, material goes into the second chamber through segregate screen, in the second chamber, there are fiat liners and steel balls, after the secondary grinding, material is discharged through the discharge screen.
Ball Mill Technical Details:
| odel | Feeding size (mm) |
Discharging size (mm) |
Capacity (t) |
Motor power (kw) |
Total Weight (t) |
| Ф900×1800 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.8 |
| Ф900×3000 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.8 |
| Ф1200×2400 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| Ф1200×3000 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 13.2 |
| Ф1200×4500 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.7 |
| Ф1500×3000 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16.5 |
| Ф1500×4500 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ф1500×5700 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| Ф1830×3000 | ≤25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| Ф1830×4500 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| Ф1830×6400 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 46 |
| Ф1830×7000 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 49 |
| Ф2100×3000 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 48 |
| Ф2100×4500 | ≤25 | 0.074-0.4 | 8-43 | 245 | 59 |
| Ф2100×7000 | ≤25 | 0.074-0.4 | 8-48 | 280 | 67.5 |
| Ф2200×4500 | ≤25 | 0.074-0.4 | 9-45 | 280 | 58 |
| Ф2200×6500 | ≤25 | 0.074-0.4 | 14-26 | 380 | 63 |
| Ф2200×7000 | ≤25 | 0.074-0.4 | 15-28 | 380 | 65.3 |
| Ф2200×7500 | ≤25 | 0.074-0.4 | 15-30 | 380 | 66.5 |
| Ф2400×3000 | ≤25 | 0.074-0.4 | 7-50 | 245 | 65 |
| Ф2400×4500 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 70 |
| Ф2700×4000 | ≤25 | 0.074-0.4 | 12-80 | 400 | 92 |
| Ф2700×4500 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
| Ф3200×4500 | ≤25 | 0.074-0.4 | Determined by the technological process | 600 | 137 |
| Ф3600×4500 | ≤25 | 0.074-0.4 | Determined by the technological process | 850 | 158 |
| Ф3600×6000 | ≤25 | 0.074-0.4 | Determined by the technological process | 1250 | 175 |
