Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HY-137
The ball mill is a key equipment for regrinding. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc. Our ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.
The ball mill is suitable for the beneficiation and grinding of fly ash, limestone, quartz sand, aluminium powder, coal powder, steel slag, ore, potassium feldspar, iron ore, iron slag, aluminium slag, silicon carbide, alumina, coal gangue and other materials.

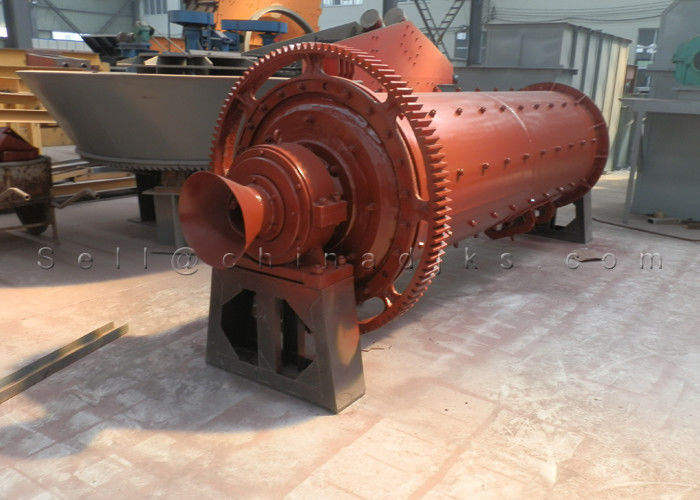

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Ball Mill Technical Detail:
Shell Diameter: 1500mm
Shell Length: 5700mm
Rotary Speed: 32r/min
Ball load (grinding media): 15t
Feeding size: ≤20mm
Motor: 110kw
Gearbox: JR100
Output size: 0.074-0.4mm
Capacity: 3.5-8t/h
Weight: 24.5t
Shell Material: Q235
