13t/H Feldspar Grinding Mineral Processing Plant 210kw Quartz Ball Mill

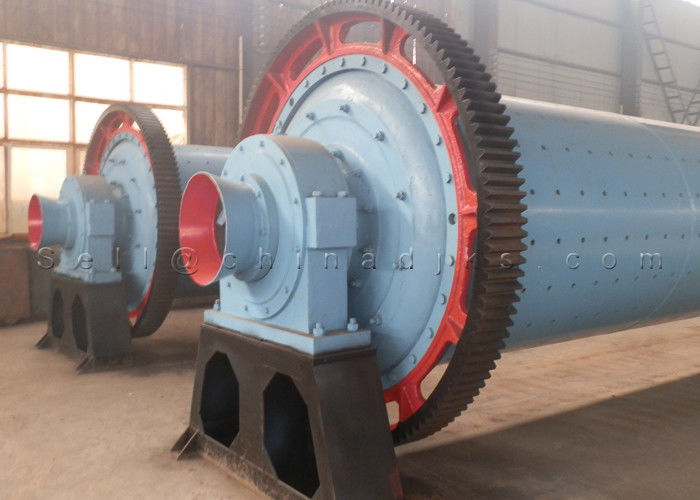

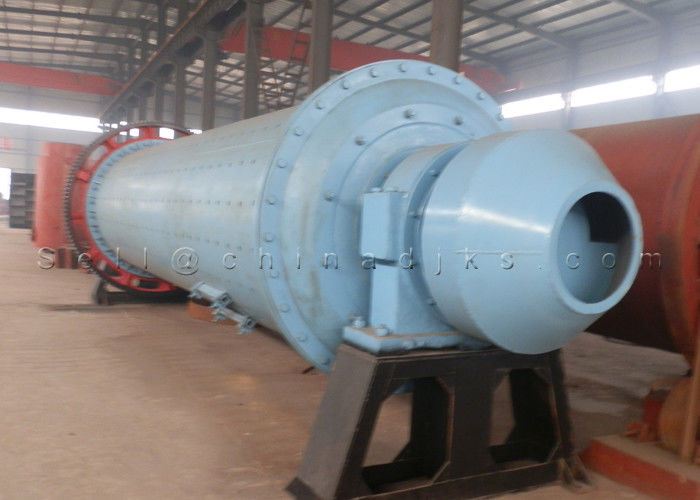

1830*7000 Feldspar Grinding Ball Mill

Hengyang ball mill is a key equipment to grind the crushed materials, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.

Ball Mill Working Principle

The ball mill is suitable in the powder rubs each kind of ore and other materials, the balll mill is widely used in the dressing, professions, building materials and chemical industry and so on. It is divided into two rubbing way-the dry and the wet .There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material. The ball mill is a key equipment to grind the crushed materials after the material were broken , and carrying on the smashing again. and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc,the ball mill carries on the dry type or the wet powder to each kind of ore and other grindability material rubs.

Ball Mill Technical Details:

Diameter: 1830mm

Length: 7000mm

Rotary Speed: 24r/min

Ball load (grinding media): 25t

Feeding size: ≤25mm

Motor: 4210kw

Gearbox: ZD55

Output size: 0.074-0.4mm

Capacity: 5-13t/h

Weight: 36t

Shell Material: Q235
