Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HY-135

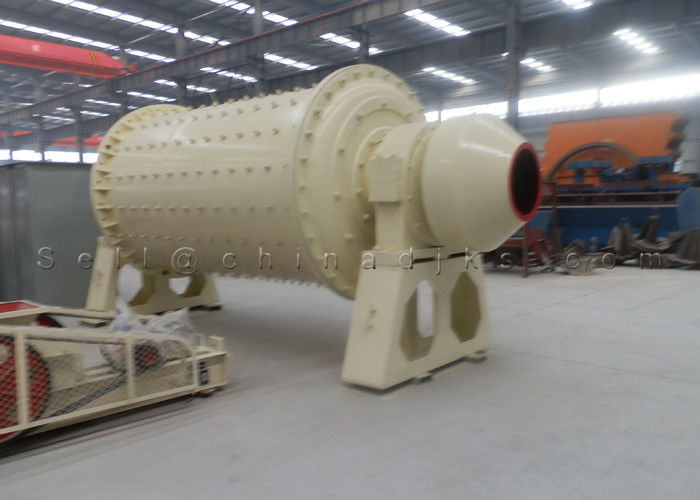

1830*3000 Gold Ore Grinding Ball Mill
Hengyang ball mill is a key equipment to grind the crushed materials, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
Ball Mill Working Principle
When the materials processing, they are transferred to the grinding chamber through the quill shaft uniformly. Firstly the centrifugal force caused by rotation of barrel brings the steel balls to a certain height, then the steel balls impact and grind the materials into fine powder over a period of several hours. The ground materials are discharged through the discharging board ,lastly the grinding process is finished.
Ball Mill Technical Details:
Diameter: 1830mm
Length: 3000mm
Rotary Speed: 24r/min
Ball load (grinding media): 18t
Feeding size: ≤25mm
Motor: 132kw
Gearbox: ZD40
Output size: 0.074-0.4mm
Capacity: 5-10t/h
Weight: 28t
Shell Material: Q235
