Name: Painted Cement Silicate Grid Type Grinding Ball Mill Overflow Type
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: HY-126
Price: Negotiable USD
Availability: InStock

Home > products > Mineral Processing Plant >

Painted Cement Silicate Grid Type Grinding Ball Mill Overflow Type

Grid Type Grinding Ball Mill

Painted Cement Silicate Grinding Ball Mill

Overflow Type Grinding Ball Mill

Place of Origin:

China

Brand Name:

Hengyang

Certification:

ISO9001

Model Number:

HY-126

Request A Quote

Painted Cement Silicate Grid Type Grinding Ball Mill Overflow Type

Product Details

Name:

BALL Mill

Application:

Building Material

Condition:

New

Motor Type:

Color:

Painted According To Buyer's Requirement

Installation:

Oversea

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

negociated

Delivery Time

20-40 days

Payment Terms

L/C, T/T

Supply Ability

10 Sets/d

Four Roller Crusher For Pellet plant

Get Best Price

A Process for Reducing Rocks and Concentrating Heavy Minerals

Get Best Price

Zirconium Silicate Mining Process and Grinding Into Powder

Get Best Price

The Ultrafine Grinding Process of Zirconium Silicate

Get Best Price

86-371-56611369

Contact Now

Product Description

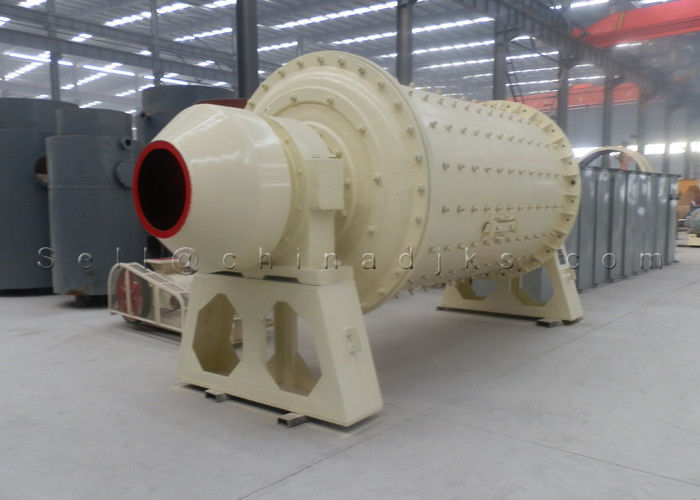

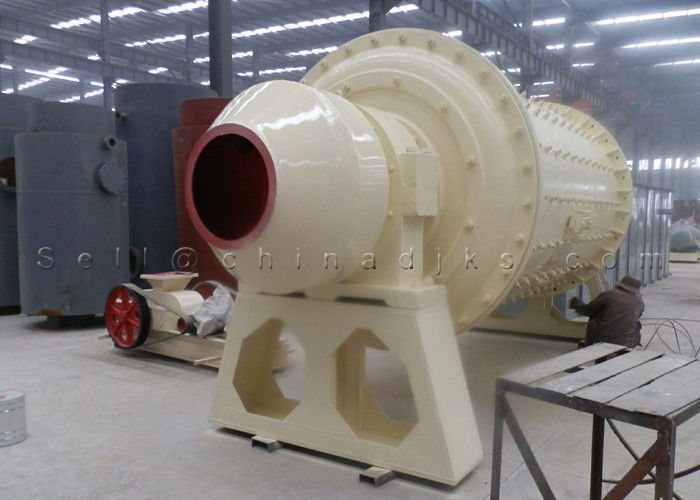

Building Materials Grinding Ball Mill

Ball Mill Introduction:
Ball Mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grid type and overflow type due to different ways of discharging material.

Ball Mill Working Principle:

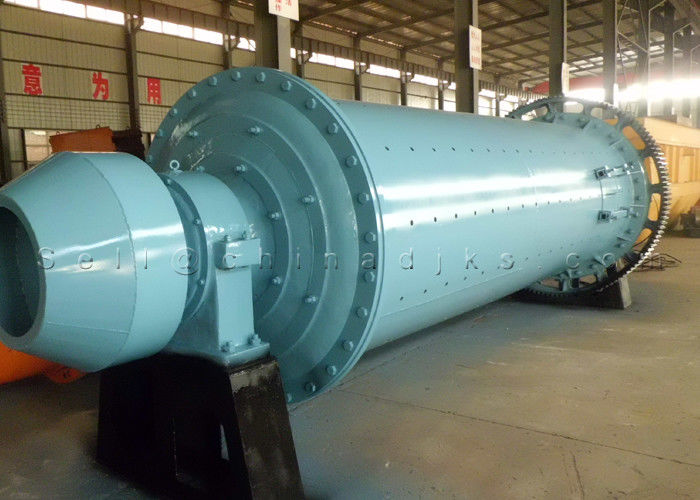

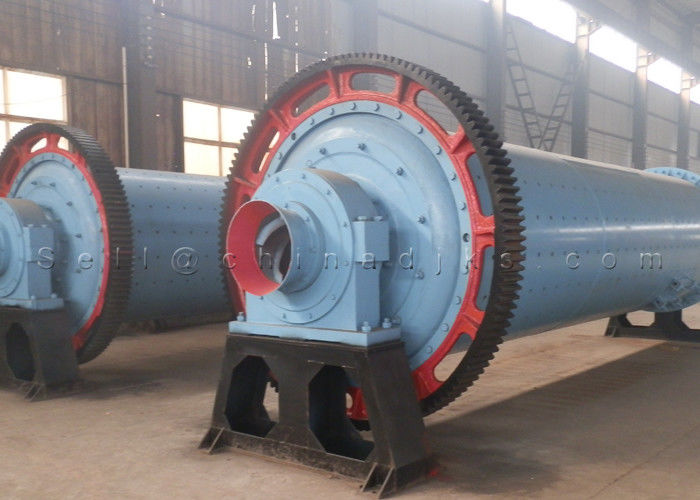

Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Ball Mill Applications:
Ball Mill is mainly used to grind materials in mineral, cement, refractory, chemical industry, etc. Ball mill has dry and wet ways. When wet ball mill works, certain water and other liquid will be added into materials to increase flow ability of materials, so the capacity is increased. When dry ball mill works, capacity is affected because material flow ability is reduced, so absorbing wind device is needed on the outlet of ball mill, and then negative pressure is formed in the ball mill to increase flow ability of material, so the capacity is increased etc.

Ball MIll Technical Details:

Model	Cylinder rotary speed(r/min)	Loading ball weight(t)	Input size(mm)	Discharge size(mm)	Capacity(t/h)	Motor power (kw)	Weight (t)
Ø900×1800	39	1.5	≤20	0.075-0.89	0.6-1.5	18.5	4.6
Ø900×3000	39	2.7	≤20	0.075-0.89	1~4	22	5.6
Ø1200×4500	32	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ø1500×3000	27	7.5	≤25	0.074-0.4	2~5	75	15.6
Ø1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
Ø1830×3000	25	11	≤25	0.074-0.4	4~10	130	28
Ø1830×6400	24	21	≤25	0.074-0.4	7~16	210	34
Ø2100×3600	23	19	≤25	0.074-0.4	10-36	210	46
Ø2200×4500	21	27	≤25	0.074-0.4	12~23	280	48.5
Ø2200×6500	21	35	≤25	0.074-0.4	14-26	380	52.8
Ø2200×7000	21	35	≤25	0.074-0.4	15-28	380	54
Ø2200×7500	21	35	≤25	0.074-0.4	15-30	380	56
Ø2400×4500	21	30	≤25	0.074-0.4	18-45	320	65
Ø2700×3600	21	39	≤25	0.074-0.4	19-75	400	83
Ø2700×4500	20	48	≤25	0.074-0.4	22-85	430	89
Ø3200×4500	18	65	≤25	0.074-0.4	29-140	800	137
Ø3200×5400	18	81.6	≤25	0.074-0.4	30-180	800-1000	146
Ø3600×4500	17	88	≤25	0.074-0.4	35-210	1000	190
Ø3600×8500	17	144	≤25	0.074-0.4	45-260	1800	260
