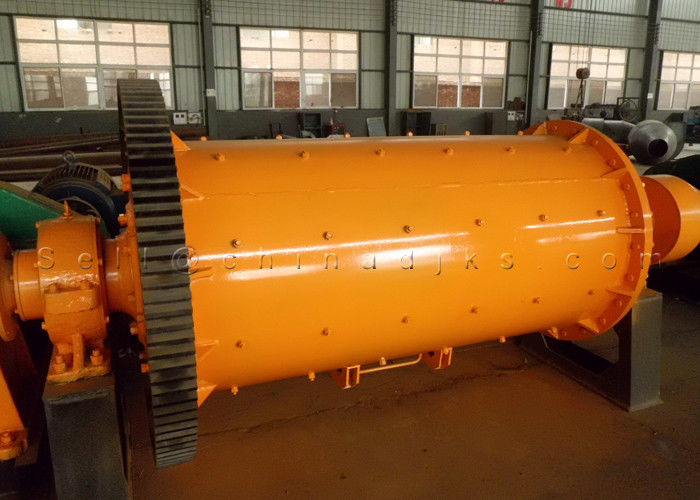

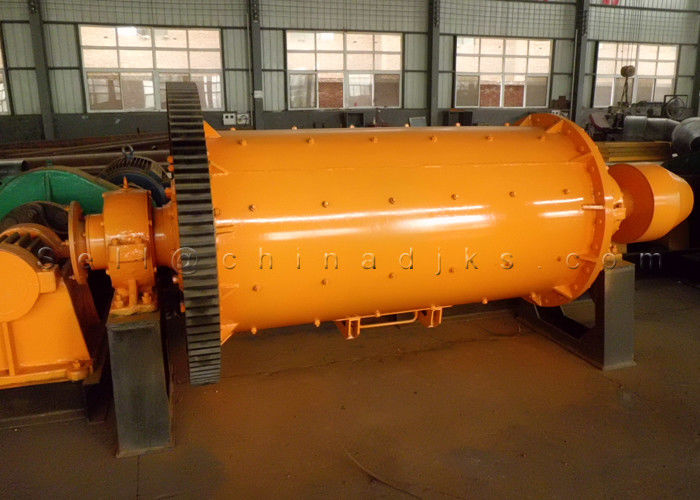

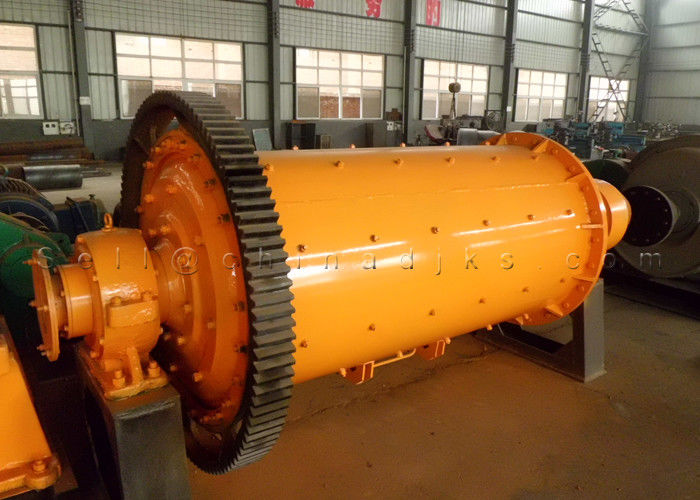

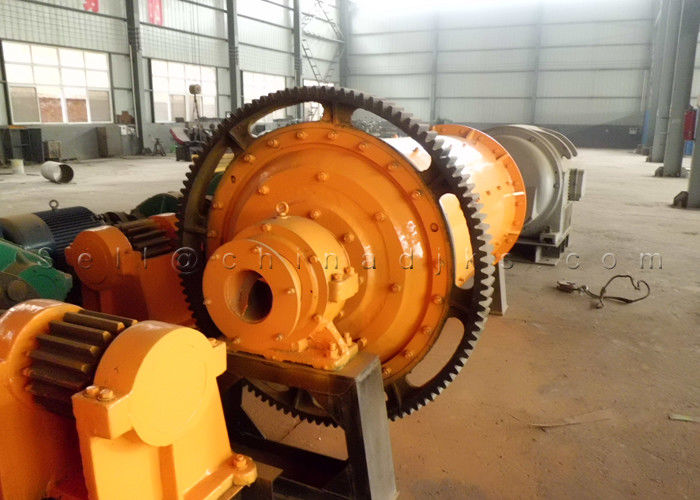

1.5t/H 900*1800mm Tumbling Ball Mill For Mineral Powder Grinding

1.5t/H 900*1800mm Tumbling Ball Mill For Mineral Powder Grinding

Grinding elements in ball mills travel at different velocities. Therefore, collision force, direction and kinetic energy between two or more elements vary greatly within the ball charge. Frictional wear or rubbing forces act on the particles, as well as collision energy. These forces are derived from the rotational motion of the balls and movement of particles within the mill and contact zones of colliding balls.

By rotation of the mill body, due to friction between mill wall and balls, the latter rise in the direction of rotation till a helix angle does not exceed the angle of repose, whereupon, the balls roll down. Increasing of rotation rate leads to growth of the centrifugal force and the helix angle increases, correspondingly, till the component of weight strength of balls become larger than the centrifugal force. From this moment the balls are beginning to fall down, describing during falling certain parabolic curves

Technical Detail:

Shell Diameter: 900mm

Shell Length: 1800mm

Rotary Speed: 36r/min

Ball load (grinding media): 1.5t

Feeding size: ≤20mm

Motor: 18.5kw

Gearbox: JR10

Volume: Approx. 1.15m3

Output size: 0.074-0.4mm

Capacity: 0.6-1.5t/h

Weight: 4.6t

Shell Material: Q235

Material thickness: 10mm
