Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HY-115

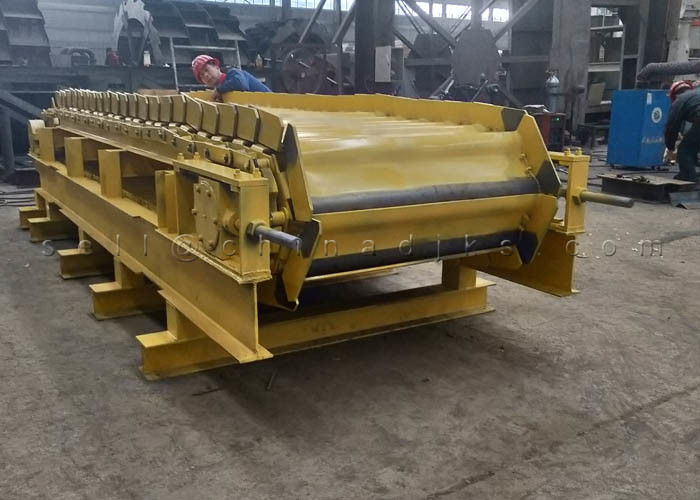

Apron Chain Plate Conveyor for Heavy mining or building material industry
Apron Chain Plate Conveyor is a large machine that carries materials through the parts of a manufacturing or industrial process. These machines resemble short conveyor belts, and may also be known as plate feeders or Apron Chain Plate Conveyors. Apron Chain Plate Conveyor machines allow engineers and process managers to automatically control the volume of materials that are added to a process, and regulate the rate at which these materials are added. To withstand the heavy weight of these types of materials, the belt portion of the Apron Chain Plate Conveyor is made from thick steel trays or pans. Chains along either end of the conveyor help move the trays along the conveyor area, and are powered by an industrial motor or engine. In mining, the Apron Chain Plate Conveyor carries rocks and minerals for crushing or further processing.
Apron Chain Plate Conveyor Features:
An Apron Chain Plate Conveyor
With this machine, we use a bottom-up approach, so we can design every chain conveyor according to customer specifications. In this way, you get the optimal conveyor for the intended application field.
Prevents product from sticking and increases sanitation
Our conveyor features plastic scrapers on every plate link and special rubber cleaning vanes, so less product will adhere to the trough. In this way, even the most stringent sanitation standards can be met.
Best operational reliability
Safety equipment such as an overflow device in the driving station and an optional zero-motion monitor in the tensioning station enable high plant availability.
Apron Chain Plate Conveyor Technical Details:
| Model |
Groove plate width(mm) |
Center distance(m) | Feeding size(mm) | Capacity(t/h) | Power(kw) |
| HY80-L | 800 | 3-15 | ≤350 | 3.5-75 | 2.2 |
| HY100-L | 1000 | 3-18 | ≤600 | 18-350 | 5.5-18.5 |
| HY120-L | 1200 | 4-20 | ≤600 | 30-220 | 11-18.5 |
| HY125-L | 1250 | 4-20 | ≤800 | 40-250 | 11 |
| HY140-L | 1400 | 5-20 | ≤900 | 20-200 | 22 |
| HY150-L | 1500 | 5-20 | ≤900 | 40-300 | 22-30 |
| HY160-L | 1600 | 6-20 | ≤900 | 27-300 | 22 |
| HY180-L | 1800 | 6-20 | ≤970 | 30-350 | 22-55 |
| HY200-L | 2000 | 8-20 | ≤1500 | 300-800 | 45 |
| HY220-L | 2200 | 8-20 | ≤1500 | 150-820 | 45 |
| HY230-L | 2300 | 8-20 | ≤1500 | 200-600 | 45 |
| HY240-L | 2400 | 8-20 | ≤1500 | 220-680 | 45 |
| HY250-L | 2500 | 10-20 | ≤1500 | 1250 | 45 |
| HYZ160-L | 1600 | 6-20 | ≤800 | 270 | 45 |
| HYZ200-L | 2000 | 8-20 | ≤1000 | 700 | 75 |
| HYZ230-L | 2300 | 8-20 | ≤1500 | 850 | 90 |
