Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HY-114

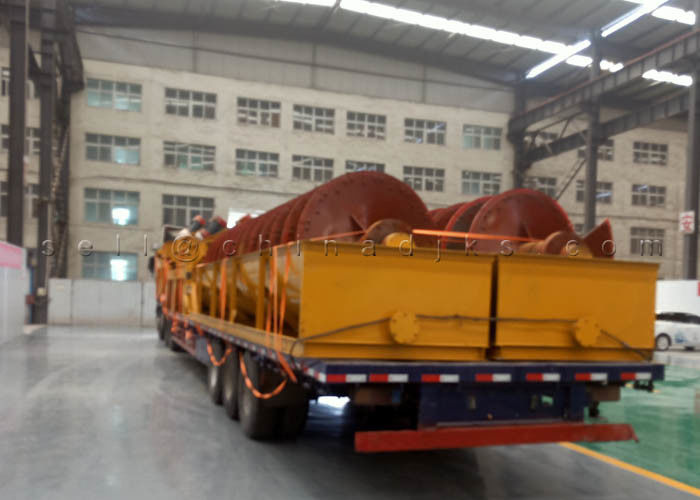

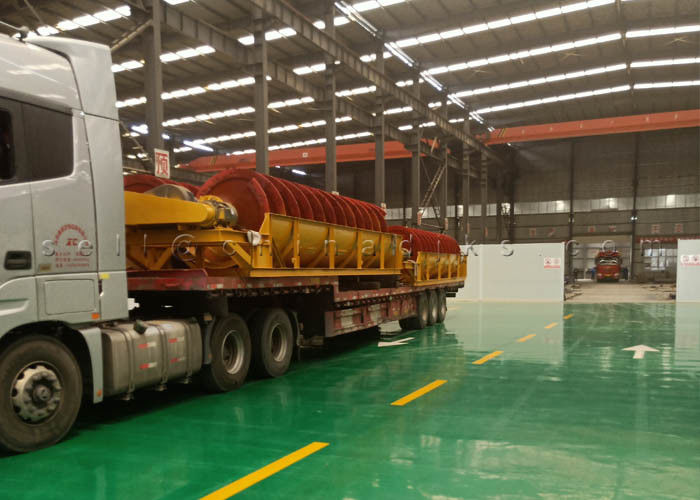

Singal Spiral Classifier (Mineral Sand Washer)
Single Spiral Classifier (Sand Washer)
The Spiral Washer is depending on the practice in sand and stone production, absorbing the leading technology home and abroad, and is widely used in sand making industry. It can wash stone power and residual way from the sand and is widely used in quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixture station and so on.
| Models | DJ-915 | DJ2-915 | DJ-1115 | DJ2-1115 | DJ-1370 |
| Diameter of screw (mm) | 915 | 915 | 1115 | 1115 | 1370 |
| Length of tub (mm) | 7585 | 7585 | 9782 | 9782 | 10363 |
| Feed Size (mm) | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 |
| Capacity (t/h) | 100 | 200 | 175 | 350 | 250 |
| Speed of screw (r/min) | 21 | 21 | 17 | 17 | 14 |
| Electric Motor Power(kW) | 11 | 2x11 | 15 | 2x15 | 22 |
| Water consumption(t/h) | 10-80 | 20-160 | 20-150 | 400-300 | 20-250 |
| Dimension (mm)(L×B×H) | 8500×2810×3600 | 8420×3765×3960 | 10970×3945 ×4720 | 10970×5250 ×4720 | 11420×4458 ×5326 |
| Weight (kg) | 6271 | 11110 | 10186 | 17941 | 15349 |
