Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
F-0015
Complete Mineral Industrial Production Line Lead Recovery Production Line
Brief introduction about mineral ore beneficiation line:
The ore processing equipment composes of many equipments, such as jaw crusher, impact crusher, vibrating feeder, belt converyor, ball mill, spiral separator, mixer, rotary kiln,and so on. as to how many equipments needed for each model, it's mainly depended on your situation and your expect about the final product, such as the size of the stone, the grade of the coarse ore and your expect on the final product,etc.
Complete Mineral Industrial Production Line Lead Recovery Production Line
Our Advantages:
1. High efficiency
In crushing, it adopts traditional two-stage and a closed circuit system for ideal fineness. Besides, jaw crushers have large crushing capacity.
2. Saving energy
In grinding and classification, with characteristics of large processing capacity and small floor area, superfine lamination autogenous mill can save energy by more than 85%.
3. Good classifying effects
In classification, hydrocyclone and vibrating screen can enhance the classifying effects.
4. Environmental protection
It adopts the third generation tailings dry stacking technology, which can save energy by 60-80%. Furthermore, it can also protect the environment and build a base for green mine.
Process introduction:
After beneficiation, there are some residual water in ore concentration. So we have to carry on concentrate dehydration to meet the requirements of transportation and smelting.
500 TPD Ore Processing Line Equipment List for Your Reference
| Equipment | Size | QTY (set) | Power (kW) | Remarks |
| Chute feeder | 980×1240 | 1 | 7.5 | |
| Jaw crusher | PE400×600 | 1 | 30 | Cast steel rack |
| Jaw crusher | PEX250×1000 | 2 | 37 | Cast steel rack |
| Swaying feeder | 600×600 | 1 | 2.2 | |

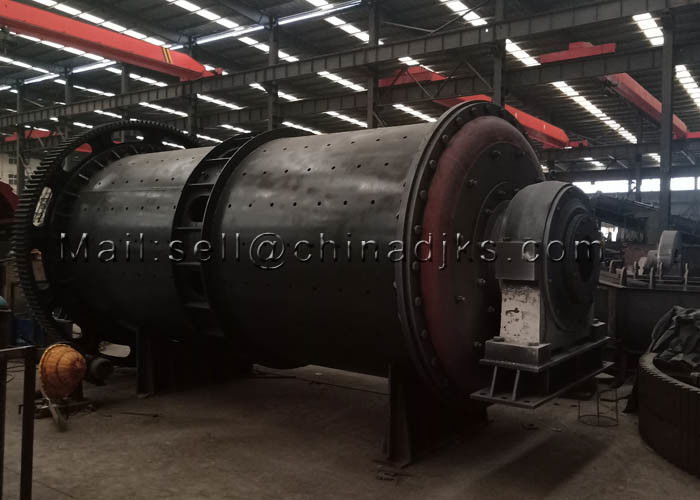

| Rotary ball mill | Dia2.1×4.0 | 1 | 245 | |
| Spiral classifier | FLG-2000 | 1 | 18.5 | |
| Magnetic separator | CTB900×1800 | 1 | 4 | 2500gs |
| Magnetic separator | CTB750×1800 | 2 | 3 | 1400~180gs |
1000 TPD Ore Processing Line Equipment List for Your Reference
| Equipment | Size | QTY (set) | Power (kW) | Remarks |
| Chute feeder | 980×1240 | 1 | 7.5 | |
| Jaw crusher | PE600×900 | 1 | 75 | Cast steel rack |
| Fine jaw crusher | PEX250×1200 | 2 | 37 | Cast steel rack |
| Vibrating feeder | DZ-5 | 2 | 0.75×2/set | |
| Ball mill | Dia2.7×3.6 | 1 | 475 | |
| Spiral classifier | FLG-3000 | 1 | 30 | |
| Magnetic separator | CTB-1024 | 1 | 5.5 | 2500gs |
| Magnetic separator | CTB-1021 | 2 | 4/set | 1400~1800gs |
