Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
F-0015

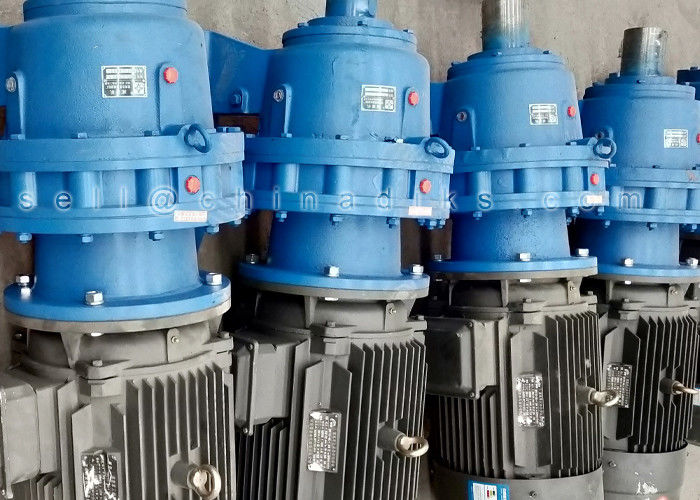

Solid Shaft Output Series Motor with Gearbox for Mining Mudstone Separator
Gearing Arrangement: Hengyangl
Place of Origin: Zhengzhou, China (Mainland)
Installation type: Foot-Mounted, Flange-Mounted, Small flange-Mounted,Torque arm-Mounted
Output type: Hollow shaft, Solid shaft, Hollow shaft with shrink disk, etc.
Input type: Direct motor,Input shaft, Flange
Heat treatment: Quenching.etc
Gear material: 20CrMnTi Alloy Steel
Color: Blue,Grey,Red,Orange,etc.
Highly Standard Modular Designed
Quality material ensures the product reliability
High Strength,Compact Dimension
Long Service Life
Low Noise
High Efficiency
Large radial loading ability
Axial load ability of up to 5% of radial load
Technical Details
|
Models
|
Output Shaft Dia.
|
Input Shaft Dia.
|
Power(kW)
|
Ratio
|
Max. Torque(Nm)
|
|
RRF18
|
20mm
|
-
|
0.18~0.75
|
3.83~74.84
|
85
|
|
RRF28
|
25mm
|
16mm
|
0.18~3
|
3.37~135.09
|
130
|
|
RF38
|
25mm
|
16mm
|
0.18~3
|
3.41~134.82
|
200
|
|
R/RF48
|
30mm
|
19mm
|
0.18~5.5
|
3.83~176.88
|
300
|
|
RRF58
|
35mm
|
19mm
|
0.18~7.5
|
4.39~186.89
|
450
|
|
RF68
|
35mm
|
19mm
|
0.18~7.5
|
4.29~199.81
|
600
|
|
RRF78
|
40mm
|
24mm
|
0.18~11
|
5.21~195.24
|
820
|
|
RRF88
|
50mm
|
28mm
|
0.55~22
|
5.36~246.54
|
1550
|
|
RRF98
|
60mm
|
38mm
|
0.55~30
|
4.49~289.6
|
3000
|
|
RRF108
|
70mm
|
42mm
|
2.2~45
|
5.06~245.5
|
4300
|
|
RRF138
|
90mm
|
55mm
|
5.5~55
|
5.51~223.34
|
8000
|
|
RRF148
|
110mm
|
55mm
|
11~90
|
5.00~163.46
|
13000
|
