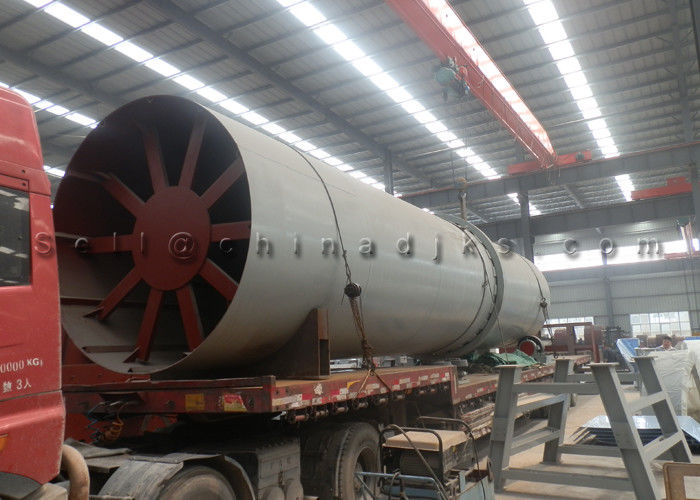

Ø4*60m Dolomite Rotary Kiln for 400t/d Dolomite Plant
Dolomite rotary kiln is designed according to dolomite calcinations characters and Pigeon process requirement. That is the key equipment in the calcinations process. The dolomite produced by rotary kiln with stable quality, high activity and low ignition loss that can make higher magnesium extraction rate and silicon utilization rate to save running cost. The rotary kiln is the most suitable equipment for produce magnesium. The new type energy-saving rotary kiln designed by Hengyang Industry. has own patent and formed dolomite calcinations standard for magnesium industry in China.
Ø4*60m Dolomite Rotary Kiln Technical Details
Model: Ø4*60m
Capacity: 400t/d
Kiln Slope: 3.5%
Supporter: 3 Sets
Block-supporter: Hydraulic
Main Drive Rotation: 0.5-3.9r/min
Assist-Rotation: 8.2r/min
Motor Model: ZSN355-092
Motor Power: 315kw
Gearbox: ZSY560-25
Ratio: 25
Assist-Motor: Y200L-4
Power: 22kw
Assist Gearbox: zsy250-50
Ratio: 40
Weight (Excluded refactory materials): 550t
Contact with us for more details if need whole plant.
