Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
F-0010

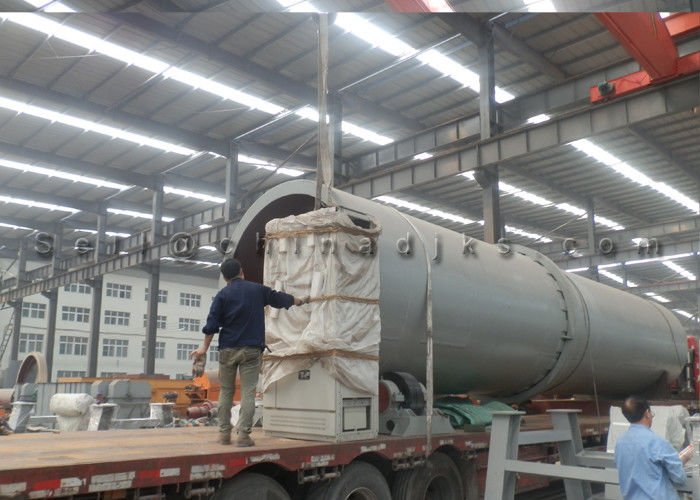

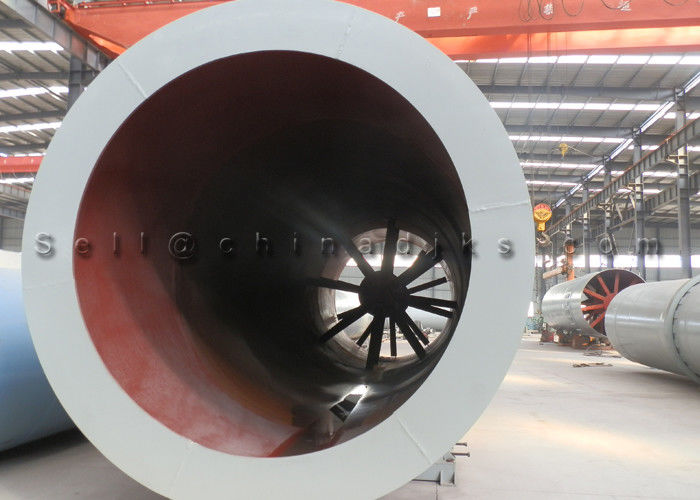

Dolomite rotary kiln is designed according to dolomite calcinations characters and Pigeon process requirement. That is the key equipment in the calcinations process. The dolomite produced by rotary kiln with stable quality, high activity and low ignition loss that can make higher magnesium extraction rate and silicon utilization rate to save running cost. The rotary kiln is the most suitable equipment for produce magnesium. The new type energy-saving rotary kiln designed by Hengyang Industry. has own patent and formed dolomite calcinations standard for magnesium industry in China.
Ø3.5*55m Dolomite Rotary Kiln Technical Details
Model: Ø3.5*55m
Capacity: 300t/d
Kiln Slope: 3.5%
Supporter: 3 Sets
Block-supporter: Hydraulic
Main Drive Rotation: 0.5-3.97r/min
Assist-Rotation: 7.66r/min
Motor Model: YPT355L-6
Motor Power: 220kw
Gearbox: YNS99S-28VIBL
Ratio: 28
Assist-Motor: Y200L-6
Power: 22kw
Assist Gearbox: zsy200-45
Ratio: 45
Weight (Excluded refactory materials): 390t
