Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYL-072

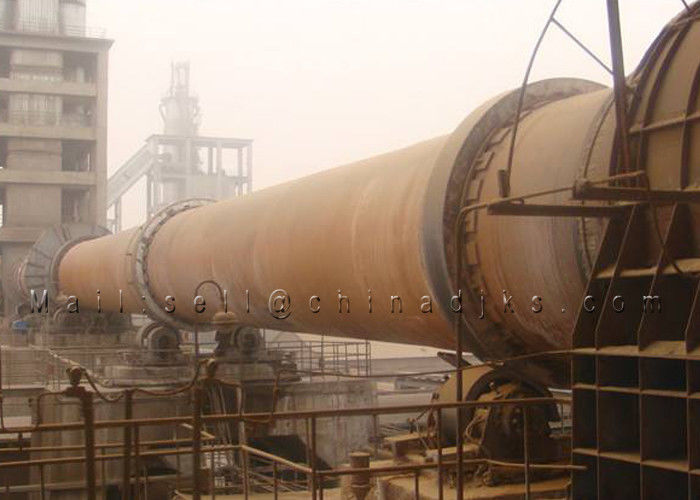

Bauxite rotary kiln consists of steel shell, tire, drive gear, kiln hood, kiln seal, burner pipe. Kiln head guard and kiln tail return spoon are built-in block casting, so bauxite rotary kiln has many advantages like easy installation, high heat, corrosion and wear resistance. Kiln head-cold air cover ventilating with cold air makes kiln safer and more reliable by evenly cooling down kiln head, barrel and kiln mouth shield. More stable airflow profits from large volume kiln hood and split kiln door. Adopt the most advanced double seal technology in the world, which is radical friction maze seal and scales seal. This kind of seal form has a simple structure and is easy to maintain. The combustion device adopts a swirling four-channel pulverized coal burner with a burner pipe.
Bauxite Rotary Kiln Feature
Low energy consumption. Comparing to the common ball top converter, it’s per unit of coal consumption can reduce 40%. It has better quality, well stability, and bigger market price advantages.
Easy operation. Its stable and reliable technology needs few professionals to operate.
Less pollution. It has a low amount of maintaining work and a high running rate.
Well adaptability. It can use gas, pulverized coal, fuel oil, and other fuels.
Upgradeable to automated control. Automated control makes the system more intact and stable.
Bauxite Rotary Kiln Technical Details:
| Product Standard(m) | Kiln Size | Yield(t/d) | Rotate Speed(r/min) | Motor Power(kw) | Gross Weight(t) | Remarks | ||
| Diameter(m) | Length(m) | Inclination(%) | t | |||||
| Φ1.4×33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 | |
| Φ1.6×36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 | |
| Φ1.8×45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 | |
| Φ3.0×48 | 3 | 48 | 3.5 | 25.6-29.3 | 0.6-3.48 | 100 | 237 | Kiln outside decomposition |
| Φ3.0×60 | 3 | 60 | 3.5 | 12.3-14.1 | 0.3-2 | 100 | 310 | |
| Φ3.2×50 | 3.2 | 50 | 4 | 40.5-42 | 0.6-3 | 125 | 278 | Kiln outside decomposition |
