Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYL-063

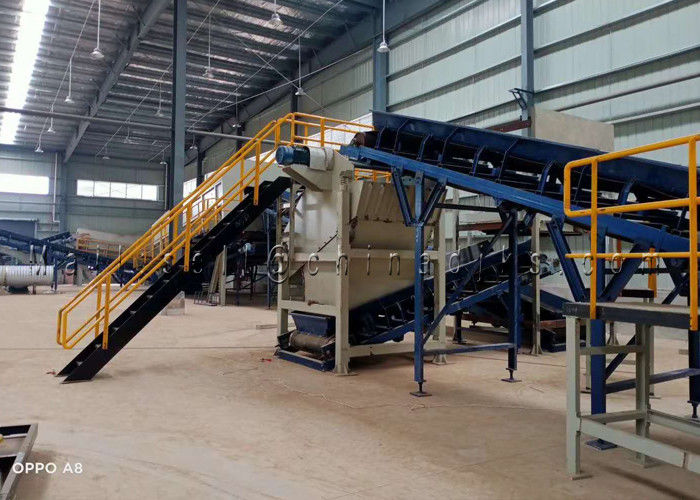

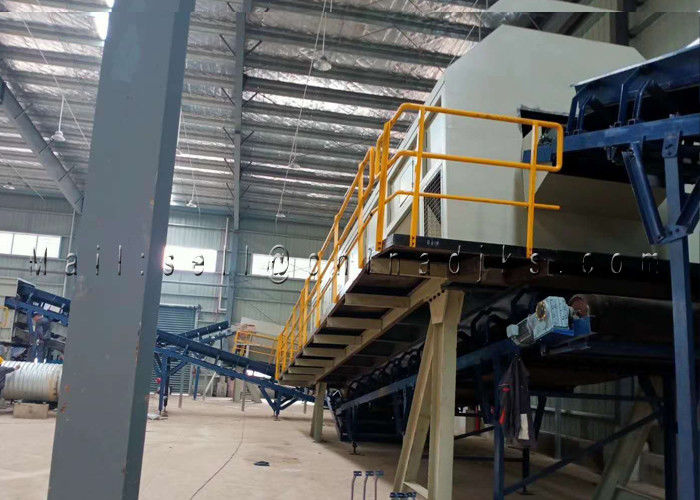

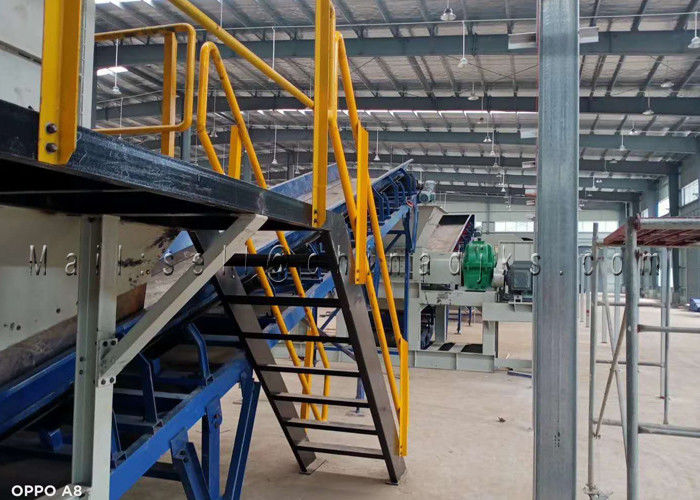

Bottom Ash Treating Plant
Incinerator Bottom Ash is the ash that is left over after waste is burnt in an incinerator. Since a wide range of municipal wastes are burned in the energy from waste plants, the leftover ash is not all powdery but contains glass, brick, rubble, sand, grit, metal, stone, concrete, ceramics and combusted products such as ash and slag.
In order to avoid landfill disposal and recover the most of the valuable material, Hengyang Industry use a sorting process that may include vibratory screens, rotating trommels, magnet, eddy current separators, in order to remove large objects, stones, bricks and metals (iron and non-ferrous metals such as aluminum, copper and brass). Those left overs can therefore be recycled in a number of construction applications to replace primary aggregates extracted from quarries.
Bottom Ash Treating Plant Main Equipment:
| Trommel screen |
An angled rotating cylinder with holes that allow waste of a given size to fall through. |
| Air separation | Using air separating various materials. |
| Ballistic Separation | A steeply inclined bed with a perforated plate screen deck, with alternate vibrating elements. Light fractions are lifted by cams to the top of the bed, heavy fractions fall to the bottom. |
| Film grabber | Waste is accelerated onto a rotating drum with spikes. These hook plastic film and let other waste drop. |
| Magnetic separation | Magnets either lift ferrous metal from the waste, or hold ferrous metal to the conveyor while other waste is allowed to drop. |
| Manual Sorting | Employees are positioned beside the conveyor and manually remove materials either in positive or negative sorting. |
| Others | PLC, Cables, conveyor, etc |
| Rotary Incinerator | Waste material calcination. |
Bottom Ash Treating Plant Capacity:
5-60t/h
Our adaptable solutions for processing bottom ash have the prime objective to maximize recovery of recyclable material.
