Mixed Waste Processing Plant
Mixed waste processing is not a new concept for Hengyang Industry. Since installing its first Municipal Solid Waste processing system in China in 2008, the company continues to be a worldwide leader in this emerging field.
Hengyang Industry has the experience that makes material recovery successful for even the most advanced end markets. We have proven our ability to adapt our customizable equipment for any waste stream to help customers produce high-quality recyclable commodities. Front-end processing equipment perform pre-sorting of all materials as soon as they come in from curbside pickup.

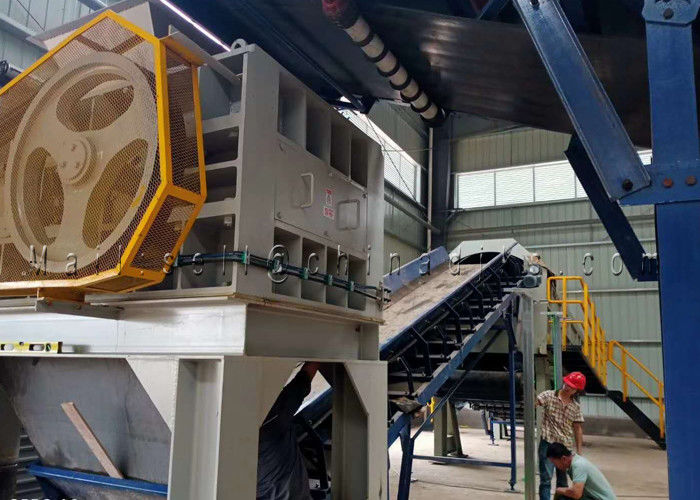

The following equipment are used in mixed waste processing: shredder and bag opener, pre-sorting station, screening (by trommel or screen), 2D/3D separation by ballistic separator, air separation, metals sorting equipment, and optical sorting.
Mixed Waste Processing Plant Main Equipment:

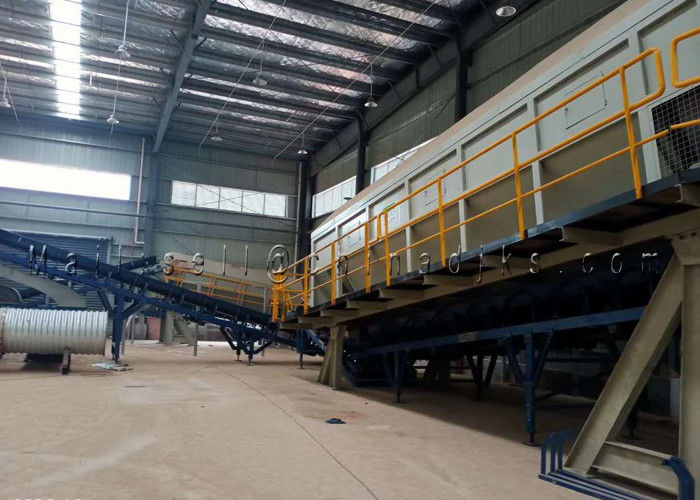

| Trommel screen |
An angled rotating cylinder with holes that allow waste of a given size to fall through. |
| Air separation | Using air separating various materials. |
| Ballistic Separation | A steeply inclined bed with a perforated plate screen deck, with alternate vibrating elements. Light fractions are lifted by cams to the top of the bed, heavy fractions fall to the bottom. |
| Film grabber | Waste is accelerated onto a rotating drum with spikes. These hook plastic film and let other waste drop. |
| Magnetic separation | Magnets either lift ferrous metal from the waste, or hold ferrous metal to the conveyor while other waste is allowed to drop. |
| Manual Sorting | Employees are positioned beside the conveyor and manually remove materials either in positive or negative sorting. |
| Others | PLC, Cables, conveyor, etc |
Mixed Waste Processing Plant Capacity:
5-30t/h
Our adaptable solutions for processing mixed solid waste have the prime objective to maximize recovery of recyclable material.
