Optical Sorting Magnetic Separation 1000TPH Quartz Mineral Processing Plant

Quartz Processing Purification Plant

Hengyang Industry has the ability to supply the complete industrial deep processing solution to supply the quartz sand and high purity quartz (HPQ) sand. The quartz sand is widely used in glass, ceramic, casting, construction industry and filler for rubber, paper and paint industry. The HPQ sand is strategic mineral using for high-tech industry such as semi-conductor, optical, lighting, quartz glass, crucible and solar energy industry.

Quartz Processing & Purification Plant Description:

To get qualified quartz sand/powder, the first aim is to remove the impurities inside the quartz. Specific expertise in geology, chemical analysis and high purity processing are required in order to convert raw mineral quartz into high purity & high-value final product. Based on the geological setting, lab test and pilot test, Hengyang Industry supplies tailor-made technology to remove the fluid and/or mineral inclusions.

I. Physical Quartz Processing Technology:

Crushing & Grinding

Optical Sorting

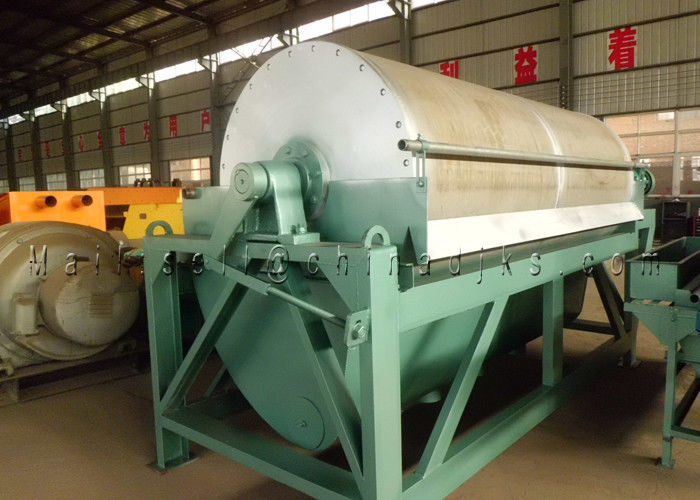

Magnetic Separation

Flotation.

II. Chemical Quartz Processing Technology:

Mixed acid treatment

Hot Chlorination Calcination

III. Thermal Treatment:

Free contamination sintering

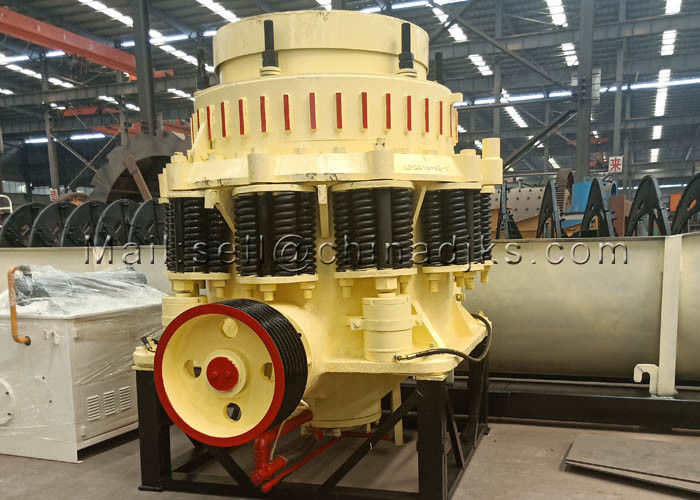

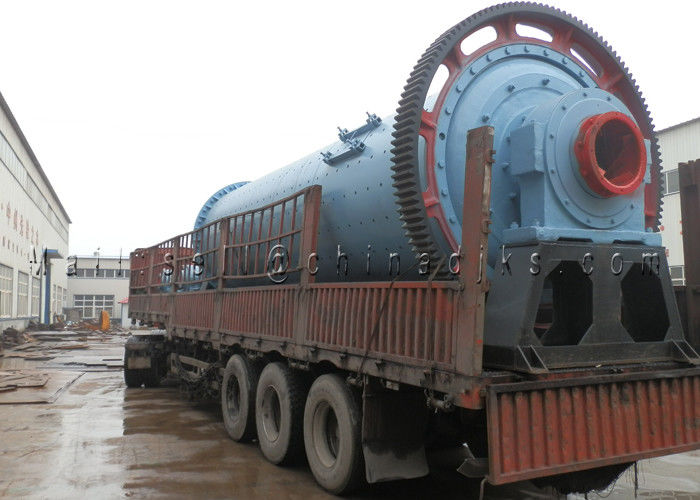

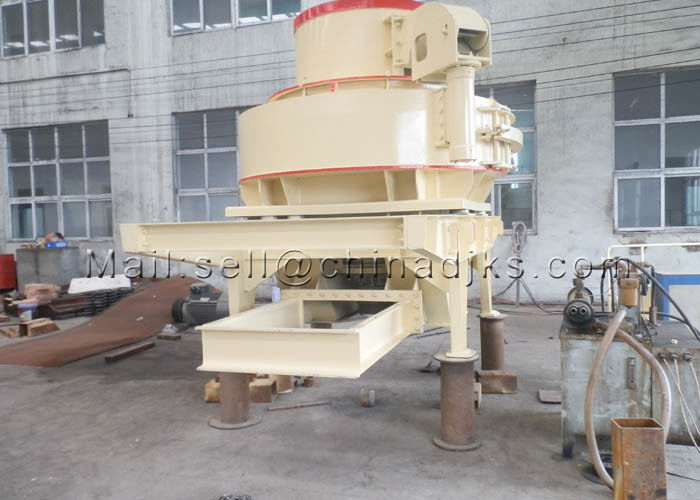

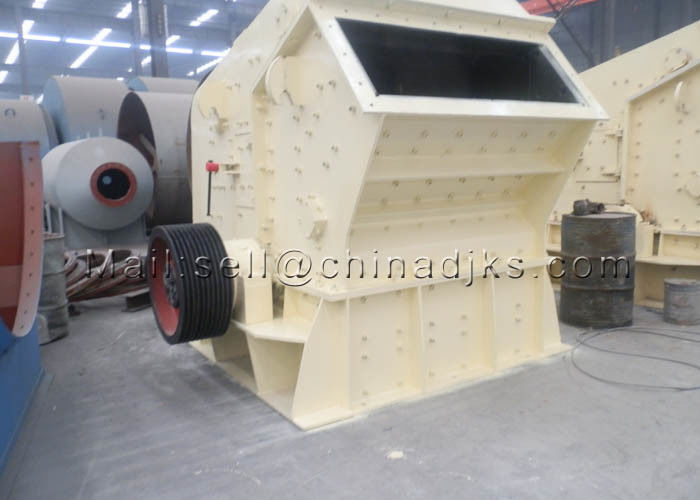

Quartz Crushing & Grinding System:

Most of the quartz sand application field has strict requirements on its size range, so during the crushing and grinding process, suitable crushing & grinding solution is required to liberate quartz crystals from gangue sufficiently without contamination, meanwhile minimizing the under-size particle production.
