Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYL-054

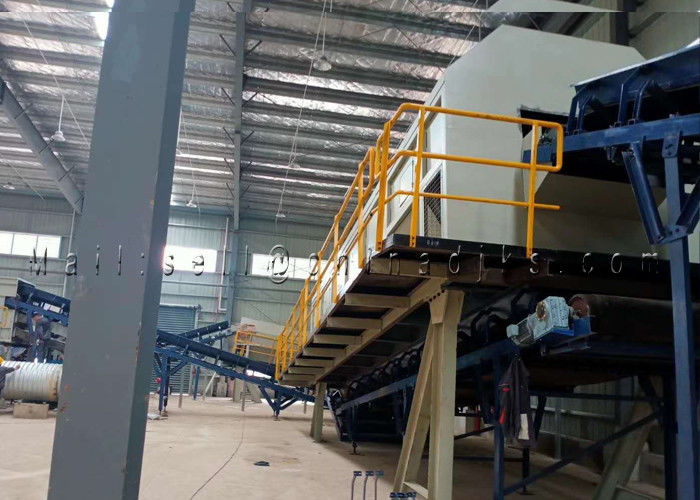

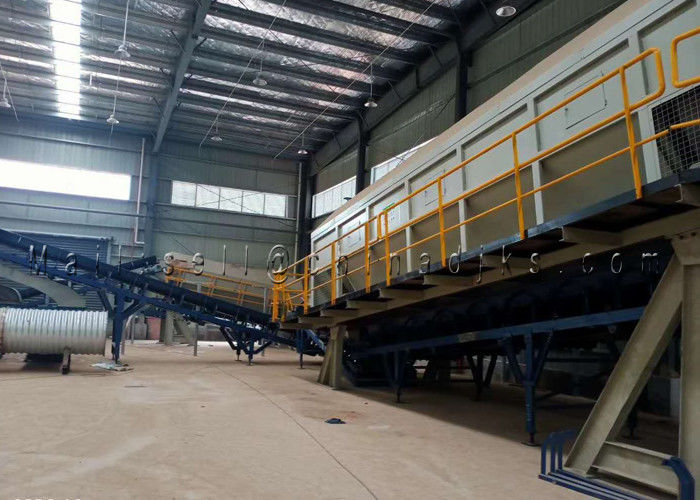

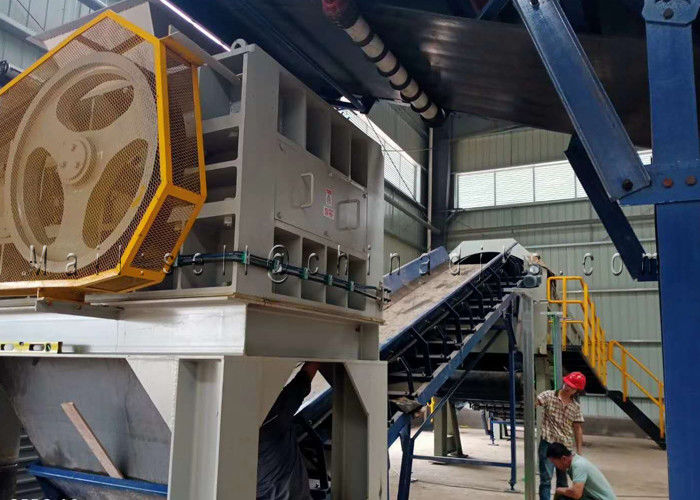

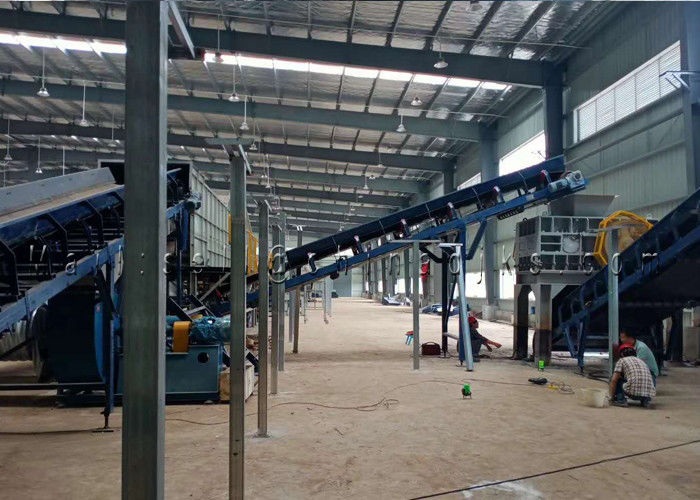

The main purpose to design municipal solid waste sorting plant is to reduce the amount of the waste and to turn these wastes into recycling. The MSW sorting plant uses a variety of sorting means to maximize the separation rate of organic matter, plastics, metals, and other substances from municipal solid waste, which is to achieve the purpose of improving the garbage recycling rate.
Municipal Solid Waste Processing Plant Main Equipment:
| Trommel screen |
An angled rotating cylinder with holes that allow waste of a given size to fall through. |
| Air separation | Using air separating various materials. |
| Ballistic Separation | A steeply inclined bed with a perforated plate screen deck, with alternate vibrating elements. Light fractions are lifted by cams to the top of the bed, heavy fractions fall to the bottom. |
| Film grabber | Waste is accelerated onto a rotating drum with spikes. These hook plastic film and let other waste drop. |
| Magnetic separation | Magnets either lift ferrous metal from the waste, or hold ferrous metal to the conveyor while other waste is allowed to drop. |
| Manual Sorting | Employees are positioned beside the conveyor and manually remove materials either in positive or negative sorting. |
| Others | PLC, Cables, conveyor, etc |
Municipal Solid Waste Processing Plant Capacity:
5-30t/h
