Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYL-018

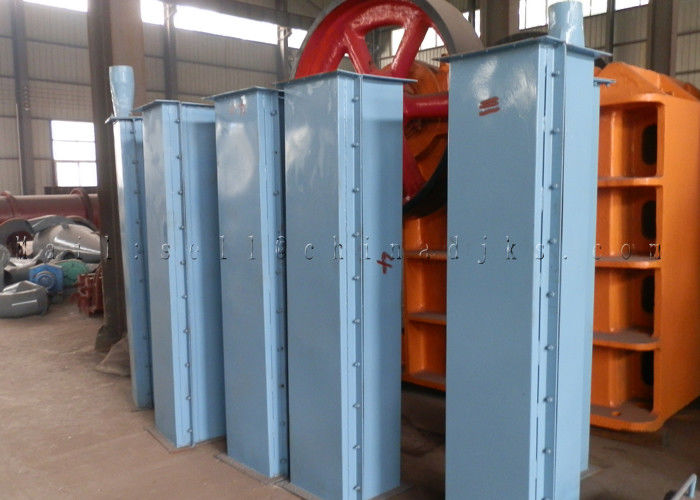

Air slide conveyor for cement belong to fluidized bed conveyer equipment, it by fluctuation two groove shell component in the fluctuation shell sandwiched between have wear-resisting, high temperature resistant and permeability very good ventilation layer, the shell by certain Angle decorate, material is charging equipment, to join the shell, high-pressure centrifugal fan as power source, gas permeability layer to make materials fluidized inflatable material namely after along the oblique flows forward reach conveyance purpose.
Air slide conveyor Application: Powder Materials
Air slide conveyor Technical Details:
| Model | HXZ250 | HXZ315 | HXZ400 | HXZ500 | HXZ630 | HXZ800 | |
| Tub length | Standard section(mm) | 2000 | |||||
| Non-Standard section(mm) | <2000 | ||||||
| Need air pressure(kpa) | 4-4.5 | ||||||
| Need air quantity(m3/min) | 1-4 | ||||||
|
Breath layer |
Material | Synthetic fiber | |||||
| Thickness(mm) | 4-6 | ||||||
| rating of temperature(°C) | 150 | ||||||
| Radial fracture strength(N/cm) | 4700 | ||||||
| Resistance(Pa) | 800-1200(under2 m3/ m2.min ) | ||||||
