Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYL-017

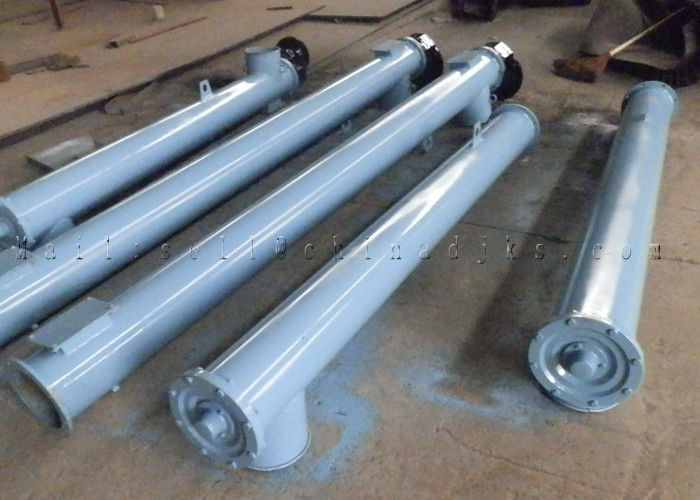

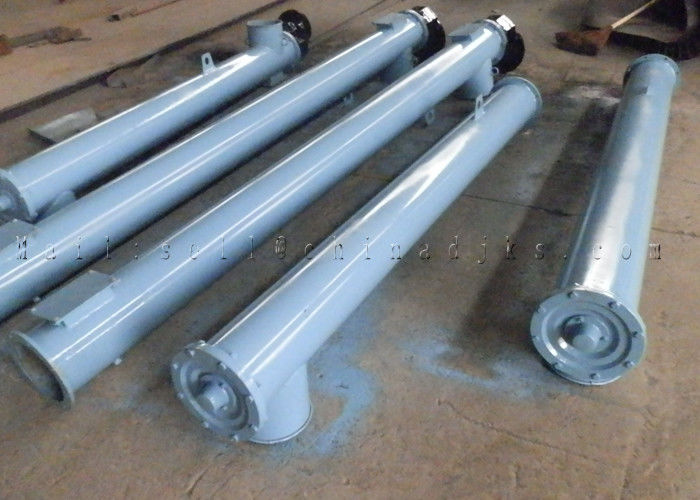

Small and Powder Materials Screw Conveyor
The screw conveyor is designed for delivery cement, fly ash, powder, sand, etc dry material. It's matched with cement silo used for concrete batching plant project. It's adopts sliding bearing, dust proof sealed device and slide block, that make screw conveyor easy to install and maintain, which uses rotary spiral vane to push materials continuously in closed housing in round section.
1. Large capacity, long conveying distance.
2. Good seal performance, good transportation efficiency
3. Flexible technological arrangement, easy to be installed, dismantled and moved, safe operation
4. Compact structure, small cross section, light weight
5. Screw conveyor can mixing, heating and colling in the process of conveying.
Screw conveyor is the new generation production that replaced of the LSY type screw conveyor .
The head and tail bearing have been moved outside from shell. By adopting sliding bearing, dustproof sealed device and slide block, that make screw conveyor easy to install and maintain,which uses rotary spiral vane to push materials continuously in closed housing in round section.
| Model | LSY168 | LSY219 | LSY273 | LSY323 |
| Diameter (mm) | 168 | 219 | 273 | 323 |
| Motor power (kw) | 3 | 7.5 | 11.5 | 15 |
| Delivery capacity (T/H) | 15 | 25 | 45 | 60 |
| Delivery distance (m) | 9 (Optional) | |||
| Delivery angel (°) | Under 45° | |||
