Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYL-016

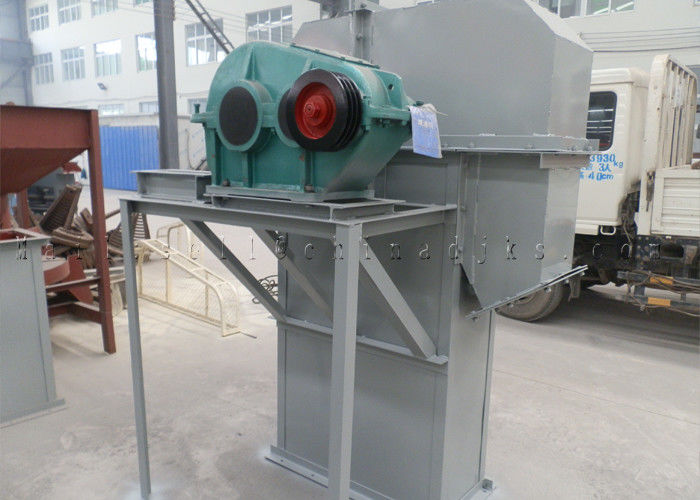

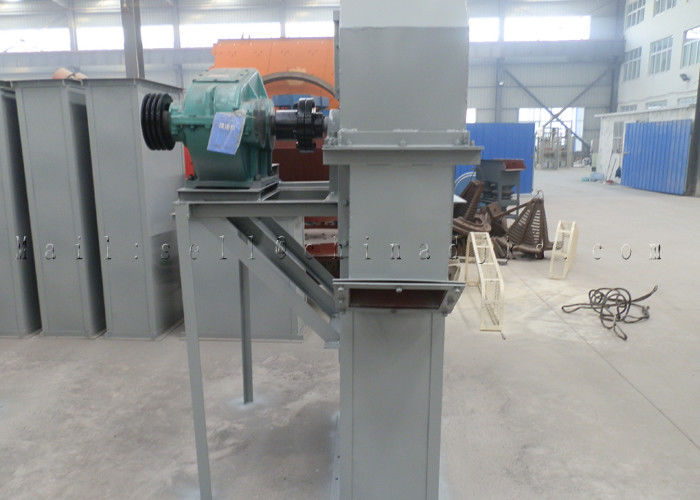

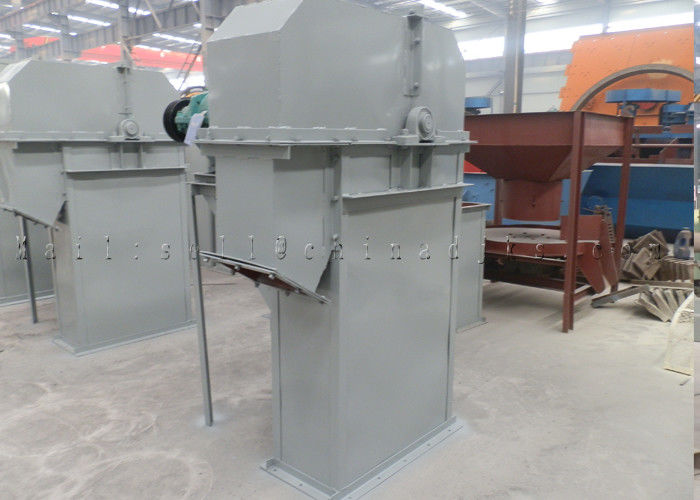

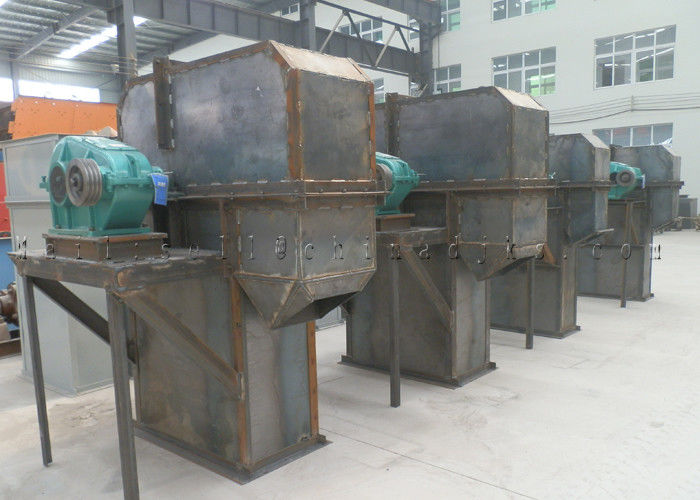

Various Materials Bucket Elevator
Chain Bucket Elevator Transporter apply to transporting materials vertically such as powder, pellet, particulate, even if with more surface friction, for example food, coal, cement, granular ore, etc. The lifting height is up to 40 meters.
Bucket Elevator Working Principle:
Belt bucket elevator is composed of machine head, main frame,Maintenance cylinder,Ventilators, dustpan, dustpanbelt and machine base.
The materials are fed into the machine from the bottom and discharged from the top.
Bucket Elevator Features:
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.
Bucket Elevator Application:
1).Metallic and Non-Metallic ores like Bauxite. Coal. Rock products. Sand. Gravel, Cement. Gypsum. Limestone.
2).Food powder like Sugar. Flour. Coffee, Salt, Grain
3).Chemical Processing products like Fertilizers. Phosphates Agricultural Lime. Soda Ash.
4).Pulp and Paper products like,Wood Chips.
Bucket Elevator Technical Details:
| Model | TH160 | TH200 | TH250 | TH315 | TH400 | TH630 | TH800 | ||||||||
| Hopper type | Zh | Sh | Zh | Sh | Zh | Sh | Zh | Sh | Zh | Sh | Zh | Sh | Zh | Sh | |
| Delivery value(m3h) | 8 | 12 | 13 | 22 | 16 | 28 | 21 | 36 | 36 | 56 | 68 | 110 | 87 | 141 | |
| Hopper width(mm) | 160 | 200 | 250 | 315 | 400 | 630 | 800 | ||||||||
| Hopper capacity(L) | 1.2 | 1.9 | 2.1 | 3.2 | 3.0 | 4.6 | 3.75 | 6 | 5.9 | 9.5 | 14.6 | 23.6 | 23.3 | 37.5 | |
| Hopper distance(mm) | 320 | 400 | 500 | 500 | 600 | 688 | 920 | ||||||||
| Specification of chain | φ12×38 | φ12×38 | φ14×50 | φ18×64 | φ18×64 | φ22×86 | φ26×92 | ||||||||
| Nodal diameter of sproket(mm) | 400 | 500 | 600 | 630 | 710 | 900 | 1000 | ||||||||
| Hopper speed(m/s) | 1.25 | 1.25 | 1.4 | 1.4 | 1.4 | 1.5 | 1.6 | ||||||||
| Max granularity(mm) | 18 | 25 | 32 | 45 | 55 | 75 | 85 | ||||||||
