Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYS004
Cables Recycling solutions
For many years, Hengyang Industry has been supplying complete recycling lines for all kinds of scrap cable. The metals in these cables – copper, aluminum, lead, and iron – are a rich source for recycling.

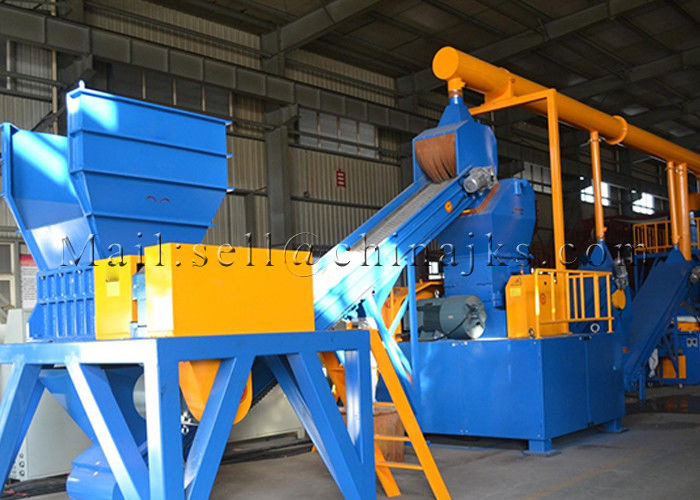

Cables Recycling Production Process:
Put the material (waste radiator, water tank) to the first crusher for the pre-crush and the crushed material conveying by the conveyor to the second grinder. Then to suck out the magnetic material (iron) which on the conveyor via the single roller type magnetic separator for the pre-separation. The material after pre-separation will into the air flow separator for the second separation and separate the copper and aluminum. The whole production line is controlled by negative pressure and equipped with the pulse dust catcher to solve the dust problem.
Cables Recycling Technical Details:
| Dimension(MM) | Output(kg/H) | Separation Rate | Dust-cleaning Rate | Power(KW) |
| 23200×6520×5130 | 1500-2000 | >97% | >99% | 145 |
| Cables Recycling Final Products: | Cables Recycling features: |
|

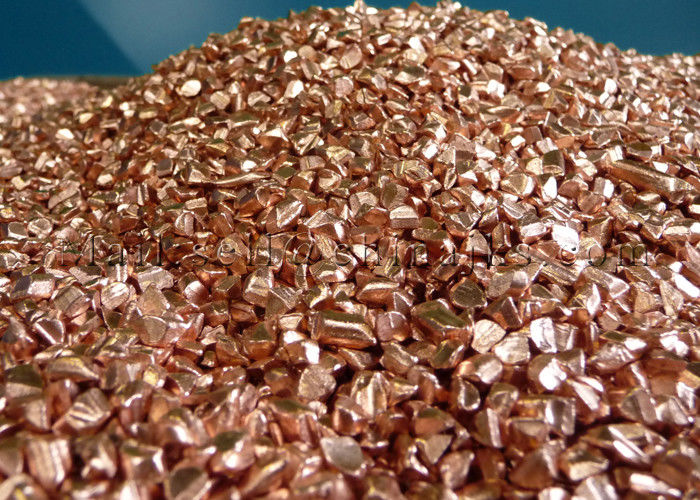

Copper Aluminum Iron Lead Plastics
|
Pre-shredding adjusted to the type of cable (household cables, cable scrap, underground cables, etc.) Output fractions according to customized grain size Separation of valuable resources (especially copper and aluminum) High degree of purity and recovery rate in output fractions |
