Place of Origin:
China
Brand Name:
hengyang
Certification:
ISO9001
Model Number:
HYD011

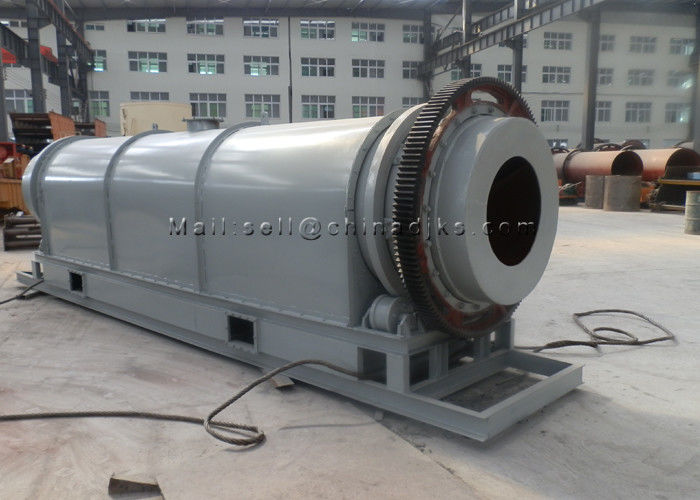

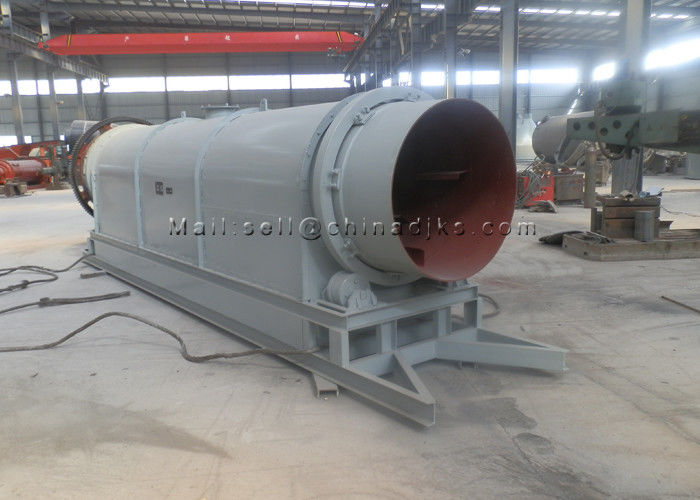

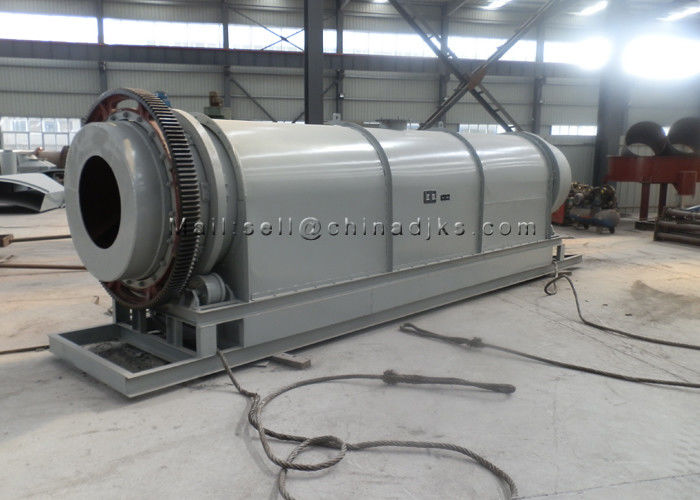

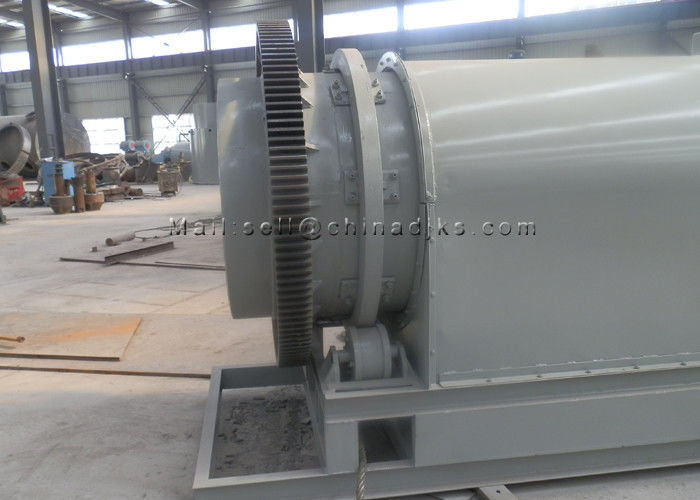

Bagasse Rotary Dryer
Bagasse refers to sugarcane granular waste left after crushing and pressing. There are 2 to 3 tons of bagasse to produce one ton of sucrose. Bagasse is rich in cellulose, and less lignin, so bagasse is great fiber material. Fresh bagasse is irregular loose particles, low density, poor combustion characteristics, inconvenient to transport, storage and use. After drying the density, durability, combustion characteristics of bagasse will be improved, and easier to transport and storage. The dry cane sugar residues is good biomass energy.
Bagasse Rotary Dryer can use boiler flue gas drying. Sugar plant boiler flue gas temperature is usually between 160 ~ 180 ℃, still has a great value of thermal energy. The hot air will be extracted from the boiler flue and sent into the dryer by induced draft fan.
Bagasse Rotary Dryer Features:
High thermal efficiency, long drying time, large treatment capacity. Down-flow in the first stage cylinder, counter-flow in the second stage cylinder, down-flow in the third stage cylinder, S-type material transfer trend. Material mixed well with hot air. What’s more, the higher material moisture content is, the higher the temperature of hot air could be.
Bagasse Rotary Technical Details:
| Item | Gradient (%) |
Rotational speedr/min) | Inlet air temperature(℃) | Capacity (t/h) | Power(kw) |
| HYD600 | 3-5 | 3-8 | ≤850 | Different Materials Different Capacity. | 3 |
| HYD800 | 3-5 | 3-8 | ≤850 | 4 | |
| HYD1000 | 3-5 | 3-8 | ≤850 | 5.5 | |
| HYD1200 | 3-5 | 3-8 | ≤850 | 11 | |
| HYD1500 | 3-5 | 3-8 | ≤850 | 15 | |
| HYD1800 | 3-5 | 3-8 | ≤850 | 18.5 | |
| HYD2000 | 3-5 | 3-8 | ≤850 | 22 | |
| HYD2200 | 3-5 | 3-8 | ≤850 | 30 | |
| HYD2400 | 3-5 | 3-8 | ≤850 | 37 | |
| HYD2600 | 3-5 | 3-8 | ≤850 | 40 | |
| HYD2800 | 3-5 | 3-8 | ≤850 | 55 | |
| HYD3000 | 3-5 | 3-8 | ≤850 | 75 | |
| HYD3200 | 3-5 | 3-8 | ≤850 | 90 | |
| HYD3400 | 3-5 | 3-8 | ≤850 | 110 | |
| HYD3600 | 3-5 | 3-8 | ≤850 | 150 | |
| HYD4000 | 3-5 | 3-8 | ≤850 | 190 | |
| HYD4200 | 3-5 | 3-8 | ≤850 | 200 | |
| HYD4500 | 3-5 | 3-8 | ≤850 | 260 |
