Place of Origin:
China
Brand Name:
hengyang
Certification:
ISO9001
Model Number:
HYD007

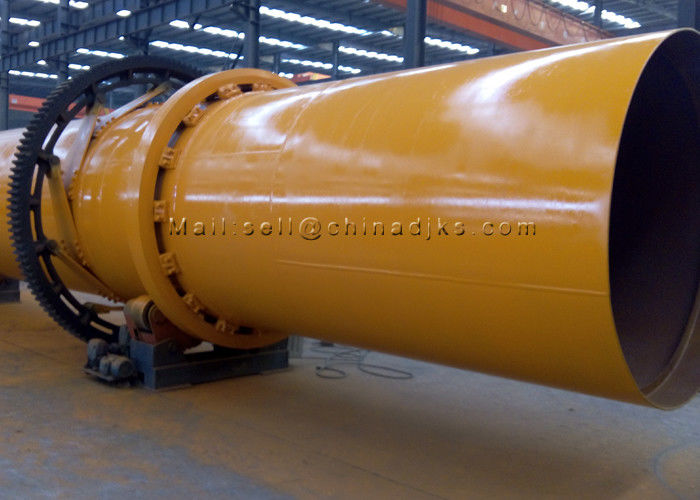

Paper Sludge Rotary Dryer
This dryer is specially for drying paper mill sludge. In drying process, the will be kept. But the Heavy metals and pathogens will be reduced.
Papermaking sludge is a bio-solid waste, which contains a large amount of cellulose-like organic matter and nitrogen, phosphorus, potassium and other plant nutrients, but also contains little heavy metals and pathogens.
Paper Sludge Rotary Dryer Feature:
Hengyang Industry build the rotary dryer are having robust construction.
Hengyang Industry provide rotary dryer with various lifter options based material.
Hengyang Industry provides the option of either co-current or counter-current air circulating rotary dryer.
Rotary dryer designed by Hengyang Industry can be utilised for higher temperature drying.
We design and build rotary dryer with wide range of size and dimensions to handle wide range of material.
We provide fully automated rotary dryers by means of PLC systems.
Rotary dryers are suitable of continuous drying operation.
This type of dryer provide relatively longer residence time.
Paper Sludge Rotary Dryer Technical Details:
| Spec./m (Dia.×Length) |
Shell Cubage (m³) |
Capacity (t/h) |
Installation |
Highest Inlet Air Temperature (℃) |
Main Motor (kw) |
Weight (t) |
| Φ1.2×8.0 | 9.0 | 1.9～2.4 | 3～5 | 700～800 | 7.5 | 9 |
| Φ1.2×10 | 11.3 | 2.4～3.0 | 3～5 | 700～800 | 7.5 | 11 |
| Φ1.5×12 | 21.2 | 4.5～5.7 | 3～5 | 700～800 | 15 | 18.5 |
| Φ1.5×14 | 24.7 | 5.3～6.6 | 3～5 | 700～800 | 15 | 19.7 |
| Φ1.5×15 | 26.5 | 5.7～7.1 | 3～5 | 700～800 | 15 | 20.5 |
| Φ1.8×12 | 30.5 | 6.5～8.1 | 3～5 | 700～800 | 18.5 | 21.5 |
| Φ1.8×14 | 35.6 | 7.6～9.5 | 3～5 | 700～800 | 18.5 | 23 |
| Φ2.2×12 | 45.6 | 9.7～12.2 | 3～5 | 700～800 | 22 | 33.5 |
| Φ2.2×14 | 53.2 | 11.4～14.2 | 3～5 | 700～800 | 22 | 36 |
