Place of Origin:
China
Brand Name:
hengyang
Certification:
ISO9001
Model Number:
HYR003
200-1200t/d QuickLime Poduction Line RPC project
Hengyang Industry can undertake the 200-1500t/d quick lime production line EPC, including the the reach report, civil engineering, designing, equipment, installation and debugging --- "turnkey” service with production capacity and standard achieved.
Capacity: 200-1200t/d Kiln slope: 3.5~4% Diameter: φ1.8~φ4.8 m
Application: Lime production plant, cement plant, Hydrogen calcium plant
Quick Lime Production Line Process:

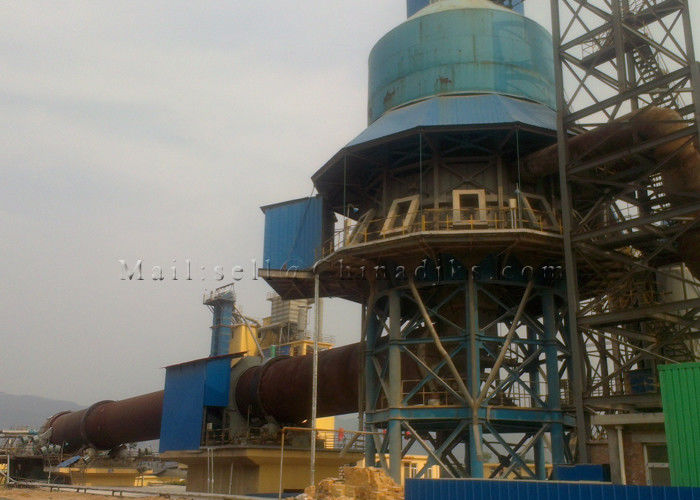

1.Preheating
Limestone is heated to 900℃ by the 1150℃ kiln gas in the preheater of 1000t/d active lime production line.

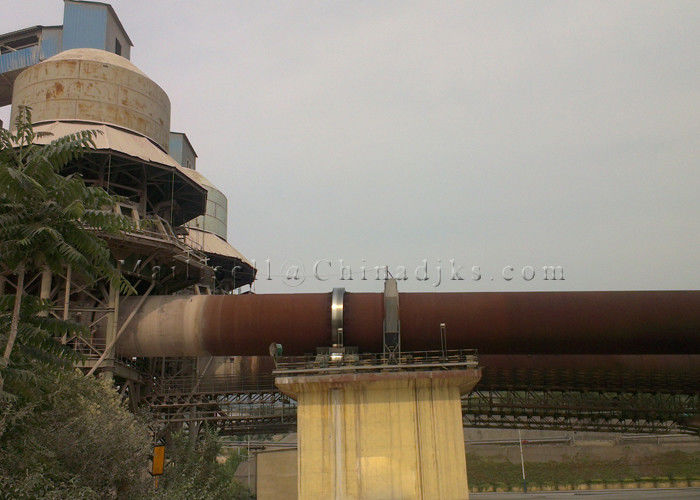

2.Calcining
Hydraulic push rod of this active lime equipment sends the limestone into the rotary kiln. The limestone is calcined and decomposed into CaO and CO2.
3.Cooling
Decomposed limestone is then sent into cooler of the active lime production line. The lime is cooled to less than 100℃ by cold air and then is discharged out.

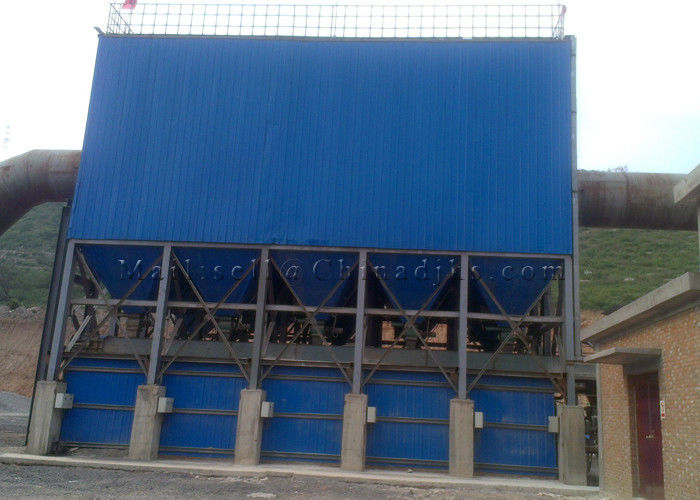

4.Waste Gas Treatment
The 600℃ hot air enters into kiln and burns with coal gas. The waste gas is then mixed with cold air. Draft fan of this active lime equipment sends the waste gas into bag dust collector. Exhaust fan then discharges the waste gas into chimney.
5.Storing
After coming out of the cooler, the lime is transported to limestone storage silo of the 1000t/d active lime production line by vibrating feeder, chain bucket elevator and belt conveyor.
Quick Lime Production Line Technical Details:
| Capacity | 200t/d | 225t/d | 250t/d | 300t/d | 400t/d | 500t/d | 600t/d | 800t/d | |
| Pre-heater |
Qty. Of Top Silo |
6 | 6 | 8 | 8 | 8 | 10 | 12 | 12 |
| Qty. Of Hydraulic Pusher | 6 | 6 | 8 | 8 | 8 | 10 | 12 | 12 | |
| Preheating Capacity (t) | 600 | 600 | 800 | 800 | 800 | 1000 | 1600 | 1600 | |
| Rotary Kiln | Size | Φ2.8×42m | Φ3.0×50m | Φ3.2×50m | Φ3.3×55m | Φ3.6×55m | Φ3.8×58m | Φ4×60m | Φ4.3×56m |
| Slope | 3.50% | 3.50% | 3.50% | 3.50% | 3.50% | 3.50% | 3.50% | 3.50% | |
|
Rotating Speed (r/min) |
0.3-1.8 | 0.3-1.8 | 0.3-1.8 | 0.3-1.8 | 0.3-1.8 | 0.3-1.8 | 0.3-1.8 | 0.3-1.8 | |
|
Calcination Temperature (℃) |
1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | |
| Cooler | Type | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical |
| Qty Of Temperature Control Area | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
|
Qty. Of Wind Tower |
4+1 | 4+1 | 4+1 | 4+1 | 4+1 | 4+1 | 4+1 | 4+1 | |
| Size(m) | 3.6×3.6 | 3.6×3.6 | 3.6×3.6 | 3.6×3.6 | 4.1×4.1 | 4.1×4.1 | 4.1×4.1 | 4.7×4.7 | |
|
Output Temperature (℃) |
≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | |
| Product Thermal Loss(kcal/kg) | 5500 | 5400 | 5400 | 5400 | 5400 | 5400 | 5400 | 5000 | |
| Available Fuel | Coke oven gas, mixed gas, natural gas, coal powder, low heating value coal gas | ||||||||
