Place of Origin:
China
Brand Name:
hengyang
Certification:
ISO9001
Model Number:
HW004

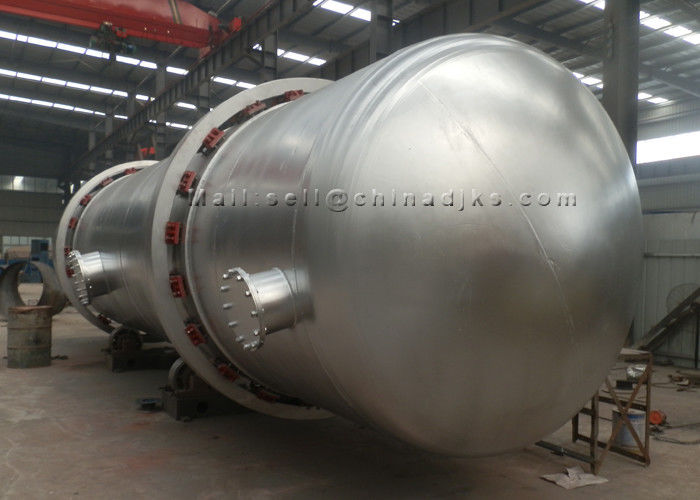

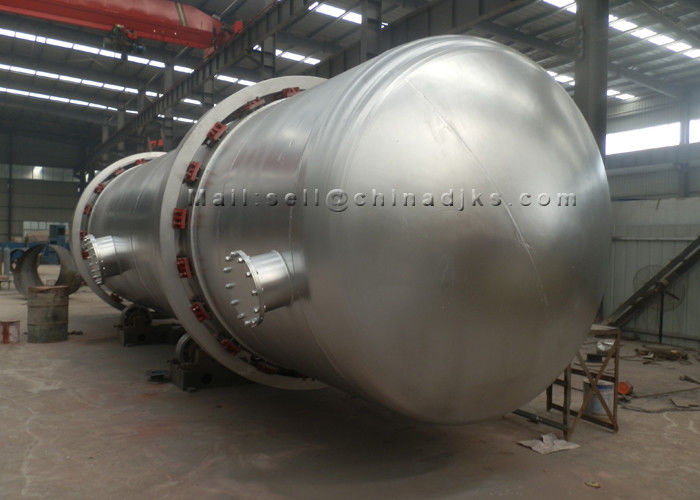

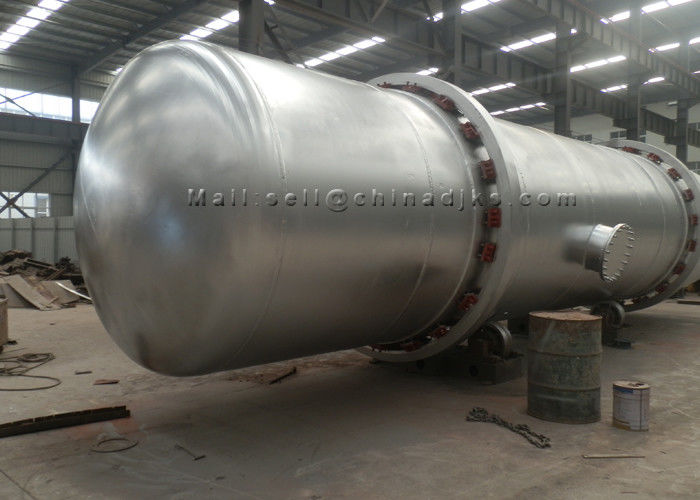

Reaction Tank for chemical materials
Reaction Tank Application:
Chemical reaction tank is mainly applicable to the production steps such as hydrolysis, neutralization, crystal, distillation, and storing etc in the industries of medicine (materials workshop, synthesizing workshop), chemical industry, food, light industry and so on.
Reaction Tank Composition:
The chemical reaction tank consists of: pot body, pot, mixer, electrical heating oil jacket pipe, supporting and transmission device, the oil spill shaft sealing device, etc. It is equipped with electric heating pipes and temperature sensor, pressure gauge.
Reaction Tank Technical Details:
| HW2000 | HW2500 | HW3000 | HW4000 | HW5000 | |
| Volume L | 2000 | 2500 | 3000 | 4000 | 5000 |
| Diameter mm | 1200 | 1400 | 1400 | 1500 | 1600 |
| Tank Pressure MPa | 0.25-0.5 | ||||
| Jacket Pressure MPa | 0.30 | ||||
| Motor Power kw | 4.0 | 5.5 | 5.5 | 5.5 | 7.5 |
| Tank Type | First Grade Pressure Tank | ||||
