Place of Origin:
China
Brand Name:
hengyang
Certification:
ISO9001
Model Number:
HW001
Dewater Screen used for sand washing or mineral powder dewater
Dewatering Screens
Hengyang Industry dewatering screens are specifically designed for mineral dewatering processes in order to generate a conveyable discharge cake of material. This is achieved by combining high G-forces with dual sloped screening decks at a 45° decline followed by a 5° incline
These screens are typically equipped with vibrator motors but larger dewatering screens are fitted with geared exciter drives .
Dewatering Screens Feature:

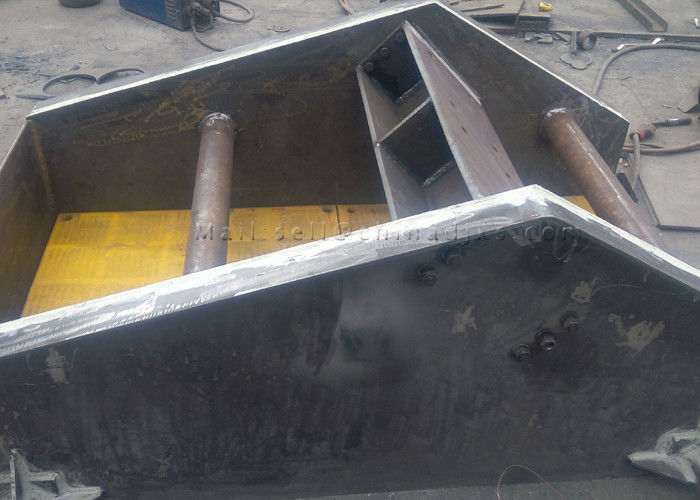

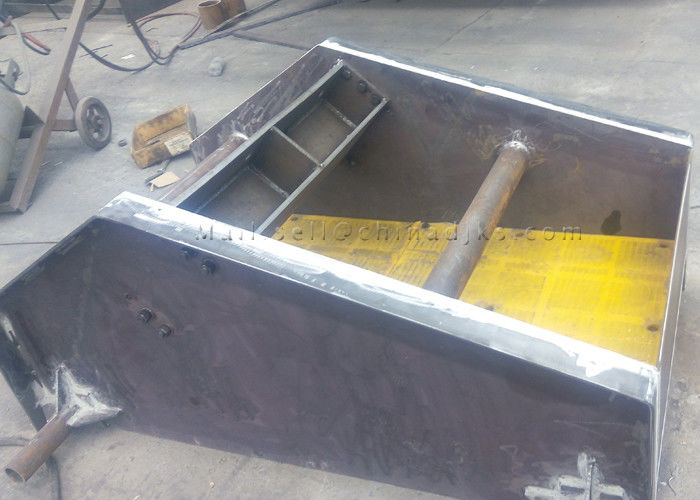

1. Dual sloped screening deck

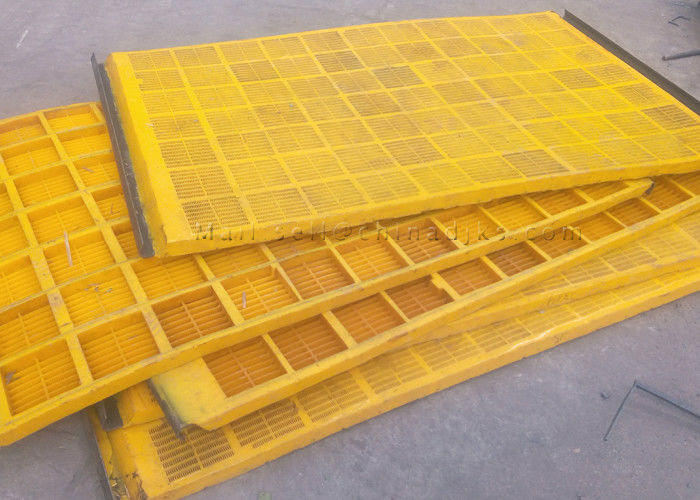

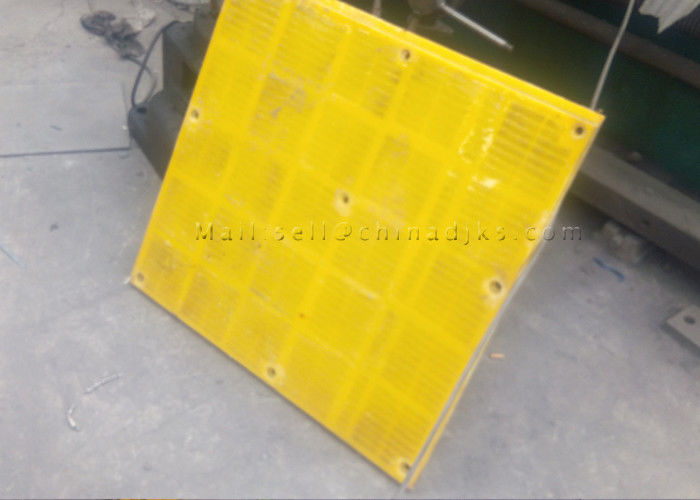

2 A variety of wear liners suited to the abrasion/corrosion characteristics of the process
3 Rubber lining or ceramic paint wear protection of the deck components and side-plates
Dewatering Screens Technical Details:
| Name | HW-12×31 | HW-14×31 | HW-18×37 | HW-24×48 | |
| Feeding granularity(%) | ≥45 | ≥45 | ≥45 | ≥45 | |
| Capacity(t/h) | 15-19 | 15-19 | 28-33 | 60-120 | |
| Screen surface specifications(mm) | 1200×3100 | 1400×3100 | 1800×3700 | 2400×4800 | |
| Sieve size(mm) | 0.3,0.35 | 0.3,0.35 | 0.3,0.35 | 0.3,0.35 | |
| Double amplitude(mm) | 3-5 | 3-5 | 3-5 | 3-5 | |
| Vibration frequency(Hz) | 25 | 25 | 25 | 25 | |
| Motor | Model | Y112M-4 | Y132S-4 | Y132M-4 | Y180-4 |
| Power(kw) | 2×4.0 | 2×5.5 | 2×7.5 | 2×18.5 | |
| Voltage(V) | 380 | 380 | 380 | 380 | |
| Overall dimensions(mm) | 3020×2400×2100 | 3020×2600×2100 | 3527×3060×2130 | 5025×3880×2693 | |
| Single point maximum dynamic load(N) | ±2000 | ±2500 | ±3500 | ±5000 | |
