Place of Origin:
China
Brand Name:
hengyang
Certification:
ISO9001
Model Number:
HB01

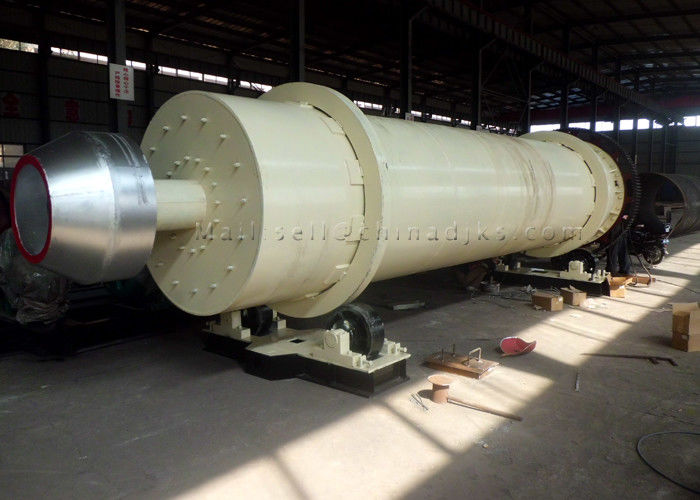

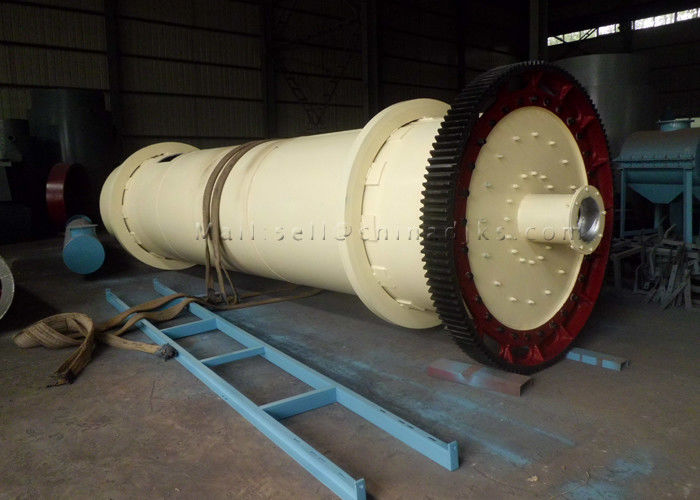

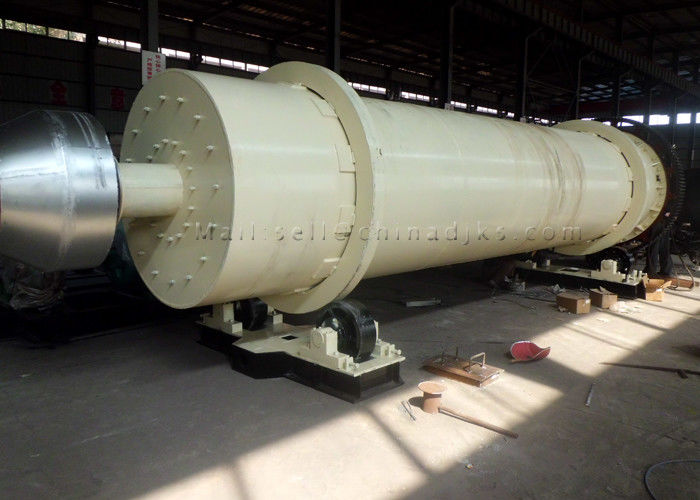

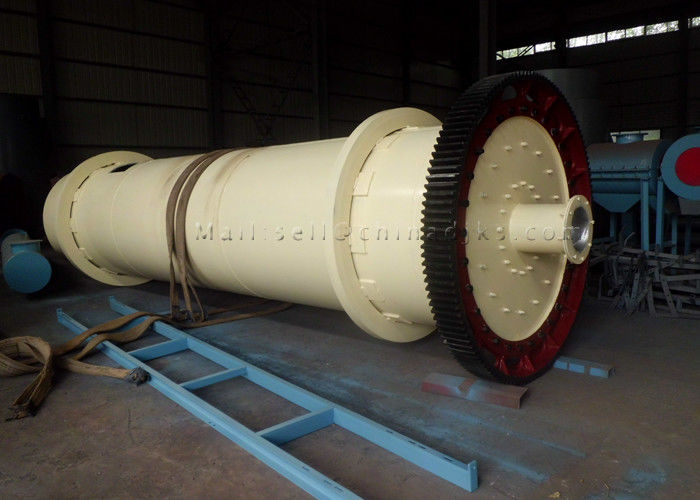

Herizonal Type Alumina Liner Ball Milll will eventually wear down and need replacement. Even old mills with rubber linings can be relined with high-alumina brick.
Hengyang Industry use only high quality, fine-grain 90% (or 96%) alumina brick with tongue and groove design. Bricks are secured and grouted with pure Portland cement or two-part epoxy. When it is time to reline ball mill that is also a good time to check the bearings and drives components.
Herizonal Type Alumina Liner Ball Mill Features:
* Blinding of grate plates is virtually eliminated
* Reduced weight compared to steel liners
* Less wear on bearings and reduced torque at start up
* Excellent sealing properties to eliminate gold lock-up
* Ball mill linings reduce noise levels for improved working conditions
Herizonal Type Alumina Liner Ball Mill Technical Details:
Model |
Cylinder rotary speedr/min) |
Loading ball weight(t) |
Input size (mm) |
Discharge size(mm) |
Capacity (t/h) |
Motor power(kw) |
Weight(t) |
| HФ900×1800 | 36 | 1.5 | ≤20 | 0.075-0.89 | 0.8-2 | 18.5 | 4.6 |
| HФ1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| HФ1200×4500 | 32 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| HФ1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| HФ1830×3000 | 25 | 11 | ≤25 | 0.074-0.4 | 4~10 | 130 | 28 |
| HФ1830×6400 | 24 | 21 | ≤25 | 0.074-0.4 | 7~16 | 180 | 34 |
| HФ2100×3600 | 23 | 19 | ≤25 | 0.074-0.4 | 10-36 | 210 | 46 |
| HФ2200×4500 | 21 | 27 | ≤25 | 0.074-0.4 | 12~23 | 280 | 48.5 |
| HФ2200×6500 | 21 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
