Place of Origin:
China
Brand Name:
hengyang
Certification:
ISO9001
Model Number:
HL14

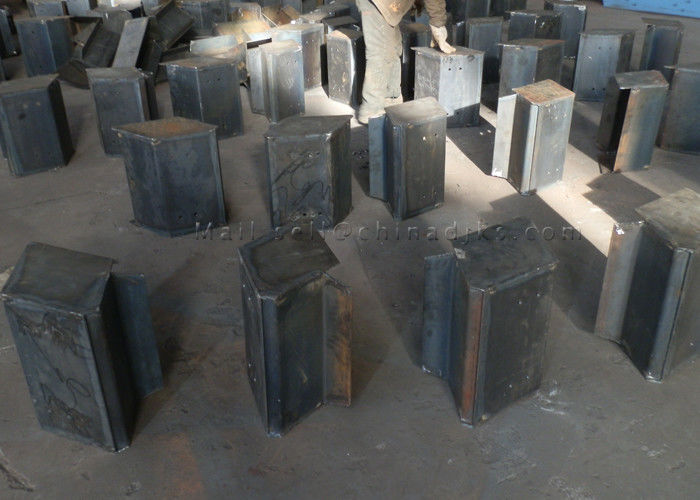

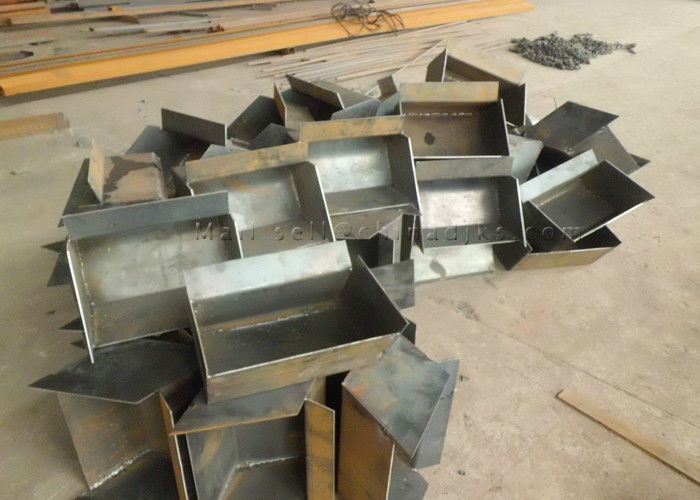

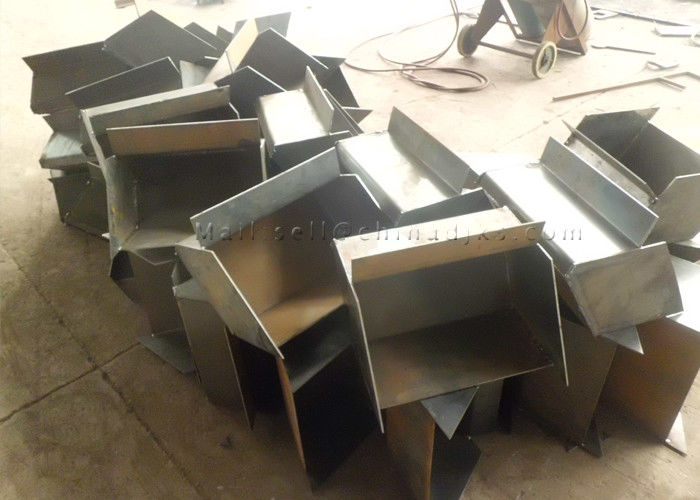

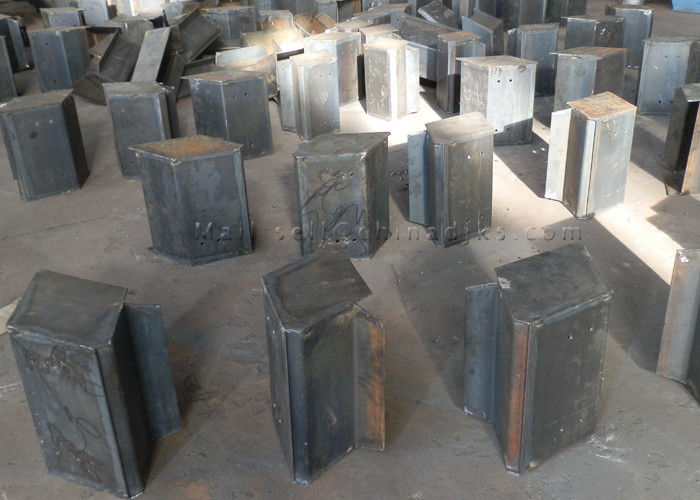

Steel Hopper of bucket elevator:
Material: carbon steel, other materials, pls discuss with us.
Bucket Elevator Features:
1. bucket elevator need small installation space and can lift more materials. bucket elevator can convey the power, for example the calcined soda, salmiac, coal powder etc.
2.The transmission capacity is large. Lift the capacity up to 480 m3/h.
3.Long use life.
Bucket Elevator Technical Details:
| Equipment Type | TB-NE250 | TB-NE315 | TB-NE400 | TB-NE500 | TB-NE630 | TB-NE800 | TB-NE1000 | |||
| Bucket type | J | T | ||||||||
| Capacity(m3/h) | 15-25 | 32-46 | 50-75 | 84-120 | 35-190 | 216-310 | 340-480 | |||
| Bucket | Width(mm) | 252 | 315 | 400 | 500 | 630 | 800 | 1000 | ||
| Capacity (L) | 3 | 6 | 12 | 25 | 50 | 100 | 200 | |||
|
Bucket distance(mm) |
200 | 250 | 320 | 400 | 500 | 630 | ||||
| Chain | Pitch (mm) | 100 | 125 | 160 | 200 | 250 | 315 | |||
| Number | 1 | 2 | ||||||||
| Broken load of chain(KN) | 112/160 | 160/224 | 224/315 | 315/450 | 450/630 | 630/900 | ||||
| Diameter of sprocket(mm) | 386.37 | 482.96 | 618.19 | 772.74 | 965.92 | 1217.06 | ||||
| Bucket speed (m/s) | 0.5 | |||||||||
| driving shaft speed (rpm) | 24.71 | 19.78 | 15.45 | 13.26 | 9.89 | 7.85 | ||||
