Place of Origin:
China
Brand Name:
hengyang
Certification:
ISO9001
Model Number:
HL07

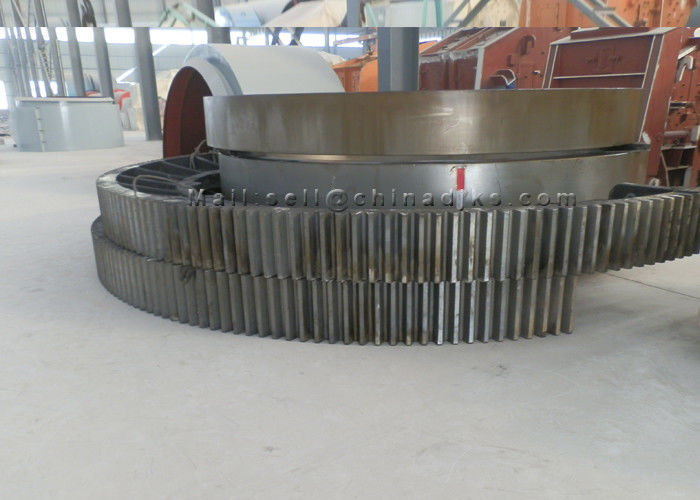

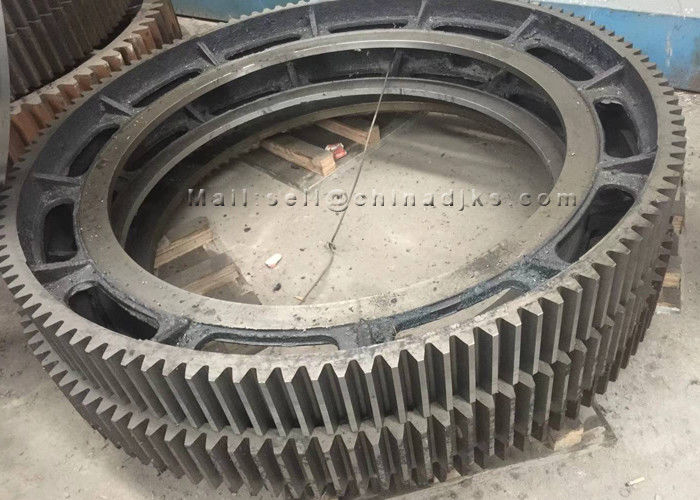

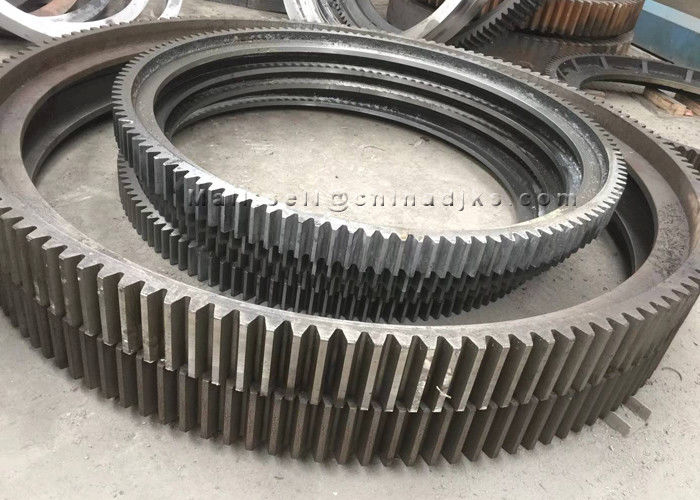

Hengyang Industry Girth Gears offered find extensive application in different industry sectors including in sponge iron plants, steel & cement industry, mining industry, wind mills as well as in other industry sectors.
Girth Gears Application:
Rotary kiln
Rotary dryer
Girth Gears Ratings:
Min 3 hp to Max 1400 hp
Splash / Forced lubrication type
Girth Gears Designs:
Fabricated steel
- forged ring
- rolled plate
Girth Gears External teeth:
Maximum diameter: 11200 mm
Toothed face width: 1700 mm
Maximum module: 45 by hob
Maximum module: 65 gear finishing cutter
Girth Gears Internal teeth:
Maximum Diameter: 6500 mm
Maximum module: 25.4
Toothed face width: 400 mm
