Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HL-01

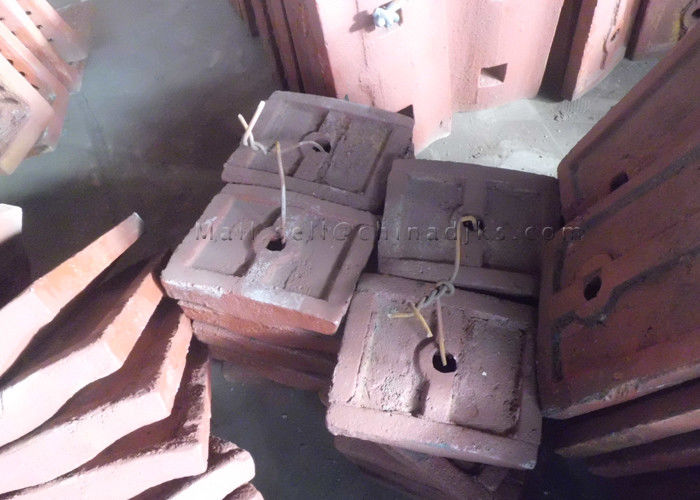

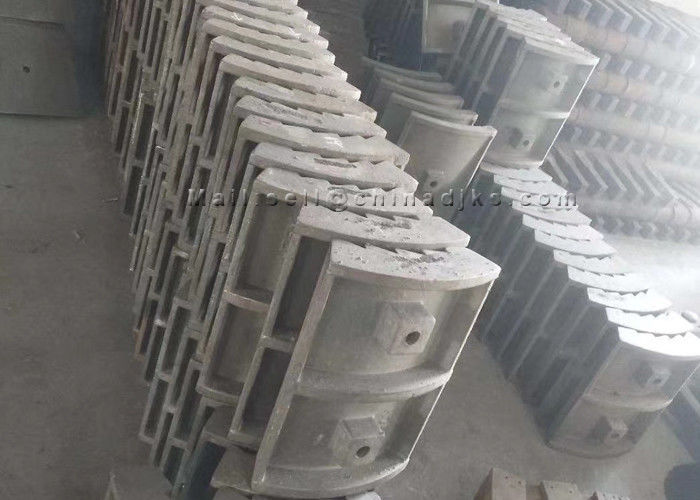

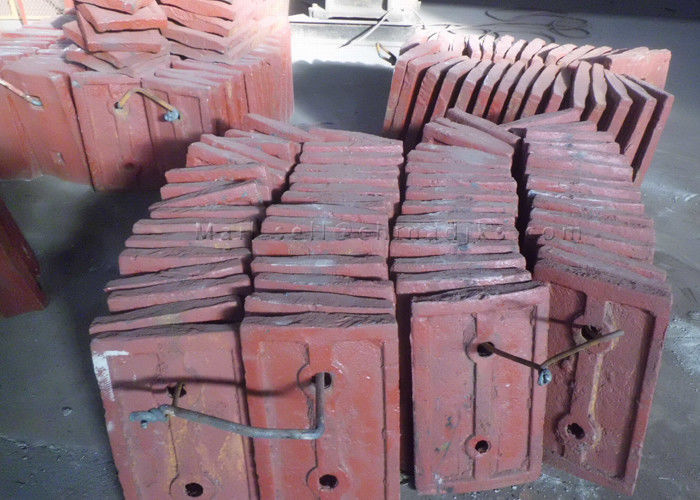

Alloy Ball Mill Liner
The role of a ball mill liner is to give the mill heads protection against wear and tear thus increasing their lifetime and creating optimal grinding efficiency. The design of a ball mill liner depends on the drilling pattern of the mill heads, the rpm speed of the mill, the maximum grinding diameter of the media and the percentage of media filling. In this way an optimum compromise can be achieved between grinding efficiency and the equipment´s lifetime.
Ball Mill Liner Chemical Details:
| Item | High Cr White Iron | High Cr Alloy Steel | High Mn Steel | Ni-hard Cast Iron |
| C | 2.4-3.2 | 1.1-2.2 | 0.9-1.3 | 2.4-3.6 |
| Si | 0.6-1.2 | 0.6-1.2 | ≤0.8 | ≤0.8 |
| Mn | 0.5-1.0 | 0.5-1.0 | 11.0-18.0 | ≤2.0 |
| Cr | 12.0-30.0 | 11.0-30.0 | 1.5-2.5 | 1.5-10 |
| S | ≤0.04 | ≤0.04 | ≤0.04 | ≤0.15 |
| P | ≤0.06 | ≤0.06 | ≤0.06 | ≤0.15 |
| Mo | 0.1-3.0 | 0.1-3.0 | ≤1.0 | ≤0.1 |
| Cu | 0.1-1.0 | 0.1-1.0 | - | - |
| Ni | 0-0.3 | 0-0.3 | - | 3.3-10 |
| Re | - | - | - | - |
