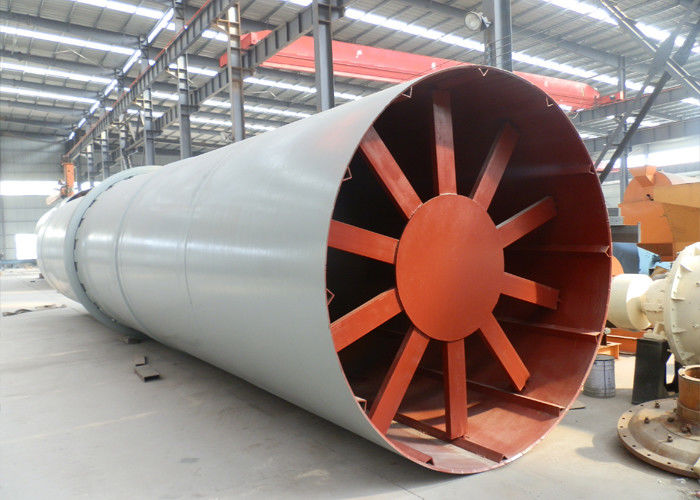

Q245 Steel 13M Length Titanium Dioxide Lime Rotary Kiln

Industry Rotary Kiln for various material

A rotary kiln is a continuous process designed specifically for drying, calcining, processing, or sintering bulk materials.

Rotary Kiln Process

The rotary kiln heated chamber is a long horizontal tube that is rotated with one end slightly elevated. The bulk material is continuously fed into the elevated end of the tube and cascades down the length of the tube by the tube’s continuous rotation. The bulk material exits the tube at the other end and falls into a collection hopper. Depending on the required operating temperature of the rotary kiln, the tube material will either be a high temperature metal alloy or ceramic composition.

The following information is required to determine the tube OD, tube ID, tube length, tube rotation speed, the tube inclination angle, and the tube material:

Rotary Kiln Design Requirements

Cement

Lime

Refractories

 Metakaolin

Titanium dioxide

Alumina

Vermiculite

Iron ore pellets

LECA Plant--Light Weight Expanded Clay Aggregate Plant

Oil Proppant/Frac Sand Plant

Slag

...............

Rotary Kiln Dimensions:

Capacity: 0.5-300t/h

Calcination Temp: 400°C--1650°C

Diameter: 800mm-6000mm

Length: 12000mm—130 000mm

Power: According to the dryer and its capacity.

Material: Q235, G20, 310S, 253MA, 309S, Q245, etc.
